Wastewater/Activity/PacpInspection/1.0Oct 17, 2019, 09:48 AM
B 0761_B 0760 _10172019_025553.mp4
- Date
- 10/17/2019
- W/O
- 787622
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00112
- PipeID
- P09227
- Time
- 2:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7046
- Sewer Name
- B JOINT OUTFALL B - UNIT 8J
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787622_TV15210_SEP2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 0761
- Downstream MH
- B 0760
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

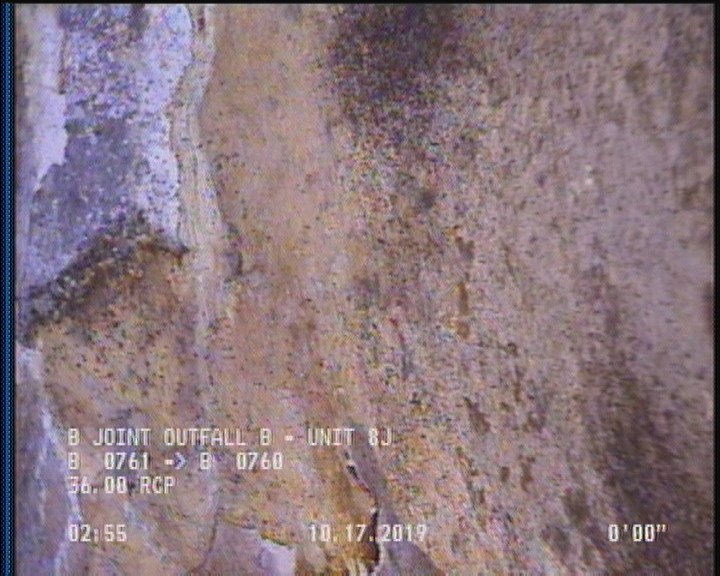

2 ft. - Surface Aggregate Visible, from 12 to 12 o'clock, within 8 inches of joint: YES

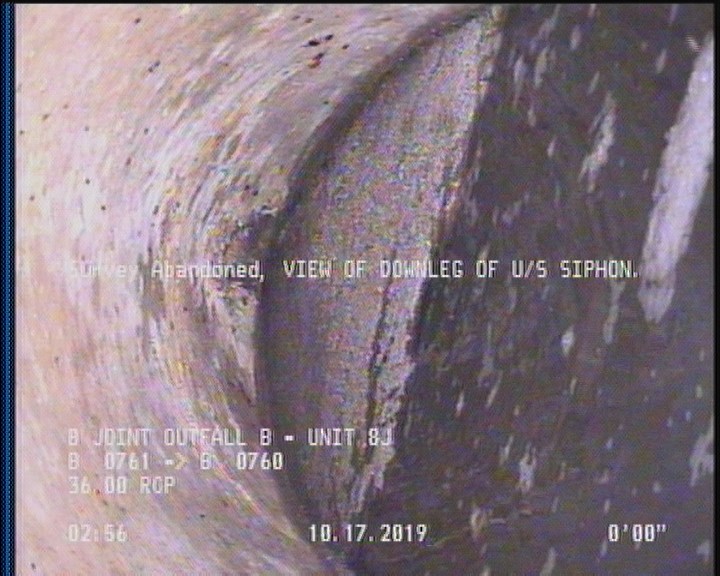

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.

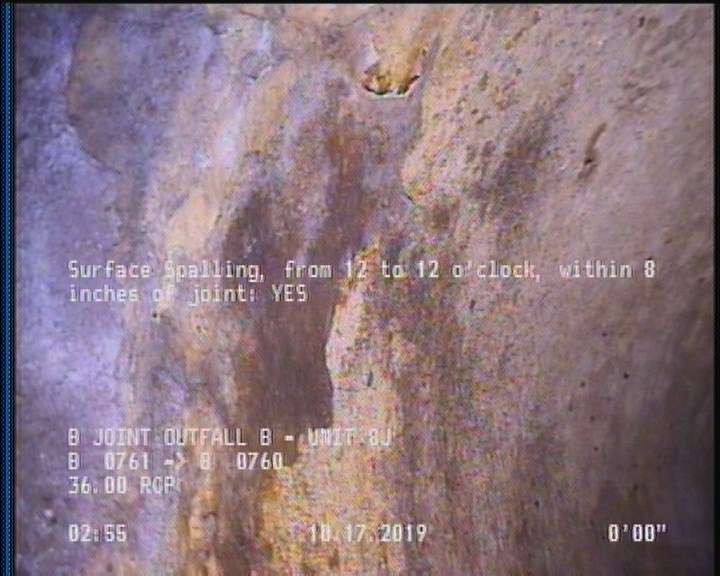

2 ft. - Surface Spalling, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0761 |
| 2 | MWM | — |
| 2 | SAV | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 0 | MWL | — |
| 2 | SSS | — |
Properties (6)
- additional_info
- SC378715
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-10-17T02:48:19-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
