Wastewater/Activity/PacpInspection/1.0Oct 17, 2019, 05:48 PM
J 0488_J 0487 _10172019_105524.mp4
- Date
- 10/17/2019
- W/O
- 787614
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01118
- PipeID
- P24733
- Time
- 10:48 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7062
- Sewer Name
- J JOINT OUTFALL J - UNIT 2E REPLACEMENT
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787614_TV05353_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- J 0488
- Downstream MH
- J 0487
- Dir. of Survey
- Downstream
- Length Surveyed
- 150.8 ft.
- Total Length
- 150.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 58
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 58
Observation photos (1)

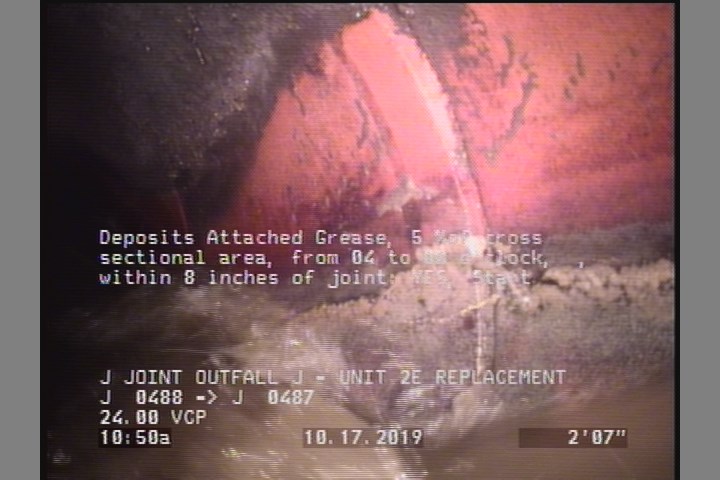

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.6 | DAGS | — |
| 0 | MWL | — |
| 150.8 | AMH | J 0487 |
| 0 | AMH | J 0488 |
| 149.6 | DAGS | — |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC378662
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-10-17T10:48:43-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 37347
