Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 9, 2019, 10:29 AM

  • 05 0610_05 0608 _09102019_222124.mp4

Date
09/09/2019
W/O
787612
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00443
PipeID
P05833
Time
3:29 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6925
Sewer Name
05 FREEMAN AVENUE RELIEF TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
04
Purpose
Routine Assessment
Project
RFIR_WO_787612_TV05346_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0608
Downstream MH
05 0610
Dir. of Survey
Upstream
Length Surveyed
91.9 ft.
Total Length
91.9 ft.
Structural Index
4
Structural Quick
534B
Structural Rating
67
O&M Index
2
O&M Quick
2B00
O&M Rating
34
Overall Index
3
Overall Quick
—
Overall Rating
101
Pipe schematic from manhole 05 0608 to 05 0610
MH: 05 0608MH: 05 0610upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 06100 ft. MGO - General Observation - CONNECTION AT 9 O CLOCK1.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish32.6 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish41.8 ft. MGP - General Photograph - BROKEN PIPE W/ VOID AND SOIL VISIBLE47.8 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start58.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start69.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES86.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start91.9 ft. MWM - Water Mark, 25 %of cross sectional area91.9 ft. AMH - Downstream Manhole, Survey Begins - 05 060891.9 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (5)

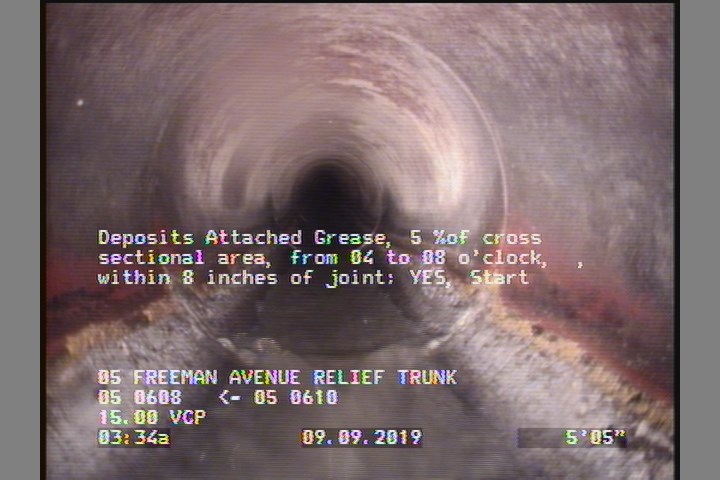

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    5.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

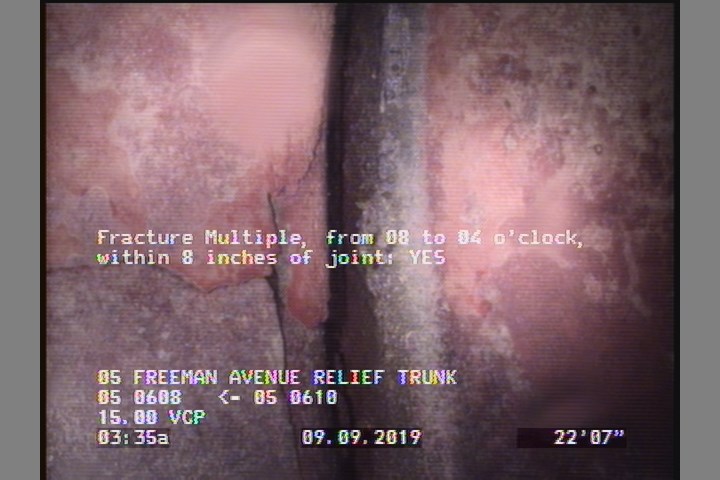

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    22.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

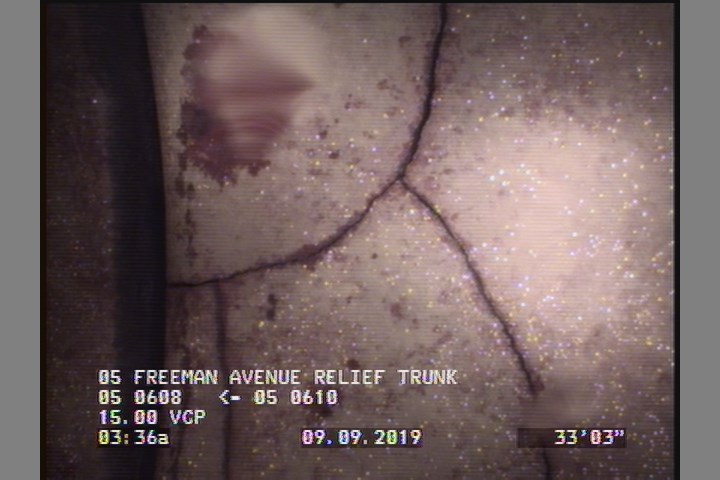

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    33.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

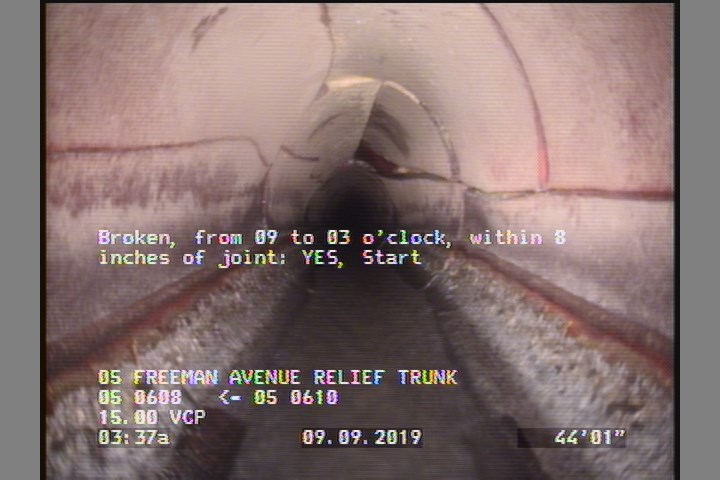

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    44.1 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

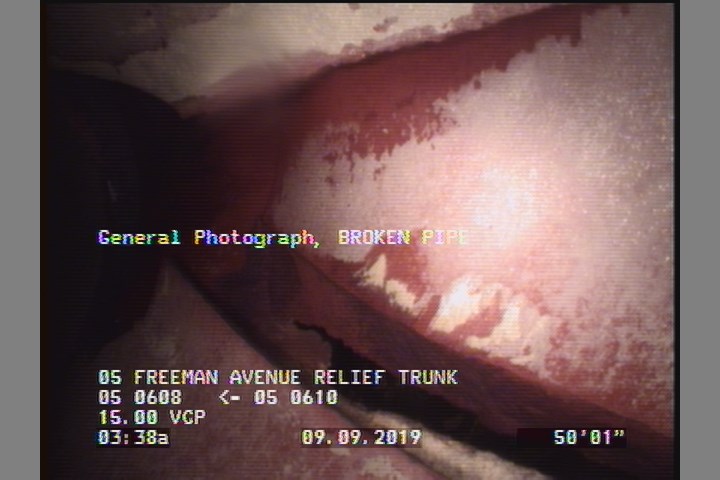

  • General Photograph - BROKEN PIPE W/ VOID AND SOIL VISIBLE

    50.1 ft. - General Photograph - BROKEN PIPE W/ VOID AND SOIL VISIBLE

All inspections of P05833Work order 787612

Observations (13)

DistanceCodeObservation
33.2FM—
0MWM—
91.9AMH05 0610
0AMH05 0608
50.1MGPBROKEN PIPE W/ VOID AND SOIL VISIBLE
0MWL—
90.8FM—
22.2FM—
91.9MGOCONNECTION AT 9 O CLOCK
5.4DAGS—
59.3B—
90.8DAGS—
44.1B—

Properties (6)

additional_info
SC378523
custom_field_two
1
customer
LACSD
datetime
2019-09-09T03:29:26-07:00
documentation
PROPIPE
is_lateral_inspection
false
