Wastewater/Activity/PacpInspection/1.0Sep 9, 2019, 09:39 AM
05 0604_05 0603 _09102019_221128.mp4
- Date
- 09/09/2019
- W/O
- 787612
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00443
- PipeID
- P05826
- Time
- 2:39 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6925
- Sewer Name
- 05 FREEMAN AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787612_TV05346_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0604
- Downstream MH
- 05 0603
- Dir. of Survey
- Downstream
- Length Surveyed
- 367.3 ft.
- Total Length
- 367.3 ft.
- Structural Index
- 4
- Structural Quick
- 4M00
- Structural Rating
- 288
- O&M Index
- 2
- O&M Quick
- 2a00
- O&M Rating
- 340
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 628
Observation photos (2)

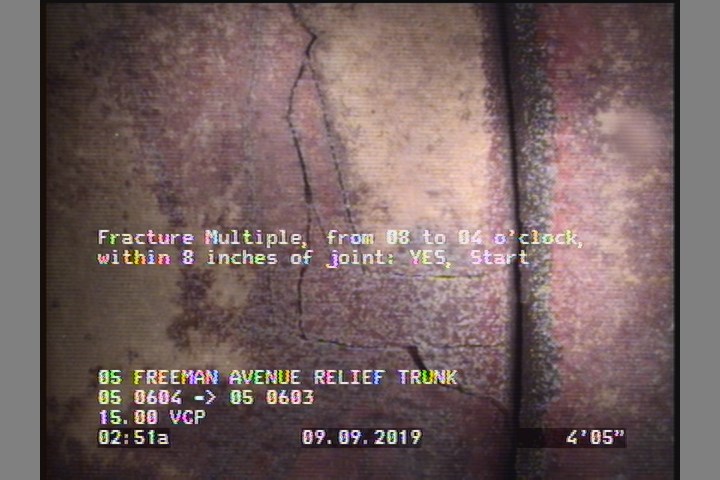

4.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

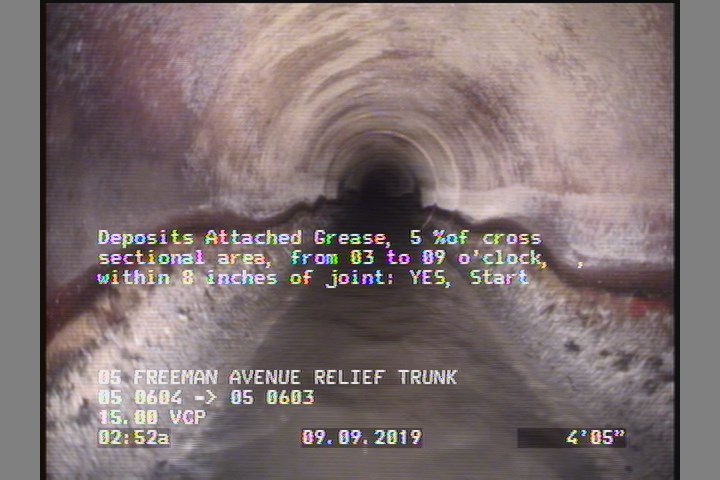

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 365.5 | DSC | — |
| 367.3 | AMH | 05 0603 |
| 4.5 | FM | — |
| 0 | MWM | — |
| 238.4 | DSC | — |
| 0 | AMH | 05 0604 |
| 365.5 | DAGS | — |
| 365 | DAE | — |
| 0 | MWL | — |
| 2 | DAE | — |
| 365.5 | FM | — |
| 4.5 | DAGS | — |
Properties (6)
- additional_info
- SC378523
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-09T02:39:57-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
