Wastewater/Activity/PacpInspection/1.0Sep 4, 2019, 10:30 AM
08 0321_08 0320_09042019_034007.mp4
- Date
- 09/04/2019
- W/O
- 787537
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00013
- PipeID
- P00368
- Time
- 3:30 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6922
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787537_TV08155_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0320
- Downstream MH
- 08 0321
- Dir. of Survey
- Upstream
- Length Surveyed
- 77.5 ft.
- Total Length
- 77.5 ft.
- Structural Index
- 3
- Structural Quick
- 4B3B
- Structural Rating
- 147
- O&M Index
- 2
- O&M Quick
- 412B
- O&M Rating
- 35
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 182
Observation photos (3)

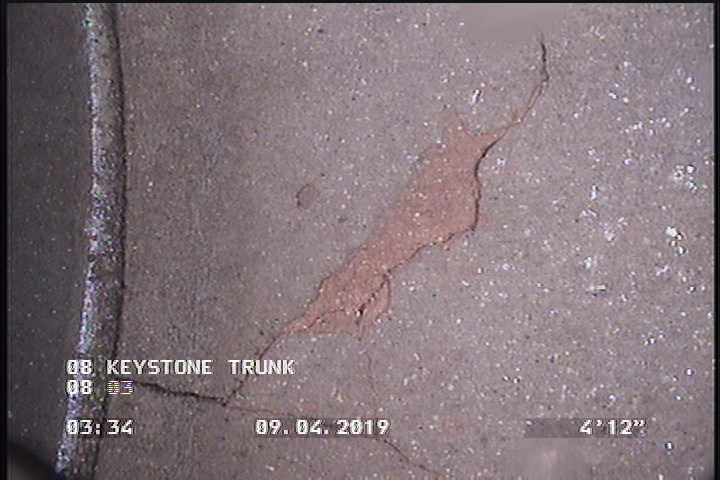

5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

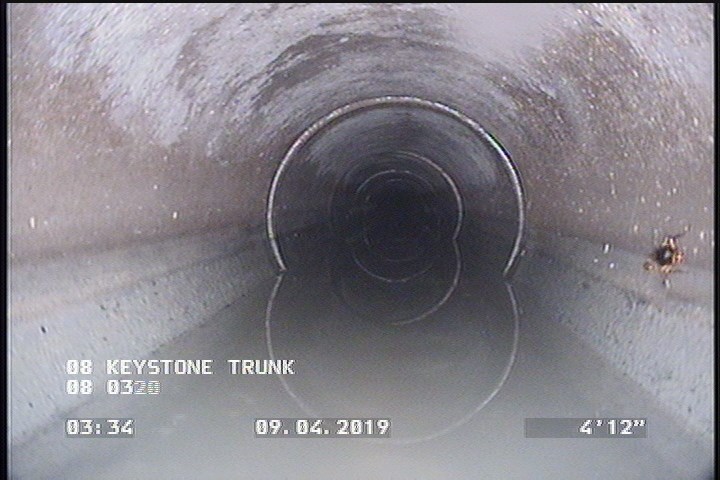

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

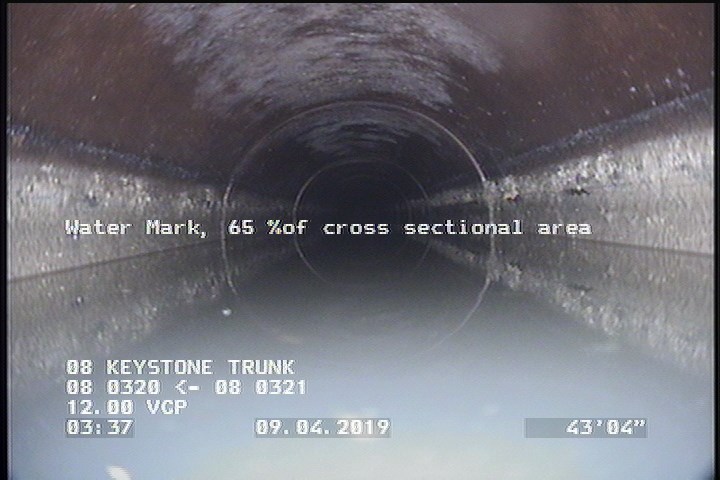

43.3 ft. - Water Mark, 65 %of cross sectional area
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 43.3 | MWM | — |
| 76 | SSS | — |
| 76 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 08 0320 |
| 77.5 | MSA | REVERSAL COMPLETED |
| 5 | FM | — |
| 2 | SSS | — |
| 2 | CM | — |
| 77.5 | DAGS | — |
| 46.8 | MWLS | — |
| 77.5 | FM | — |
| 5 | DAGS | — |
| 0 | MGO | CONN 3 O'CLOCK @ MH/UNKNOWN |
| 42.5 | TFC | — |
| 0 | MGO | — |
| 0 | VC | @ MH |
| 77.5 | MWLS | — |
Properties (6)
- additional_info
- SC378519
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-04T03:30:34-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
