Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 3, 2019, 10:15 AM

  • 08 0325_08 0324_09032019_032628.mp4

Date
09/03/2019
W/O
787537
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00013
PipeID
P00373
Time
3:15 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6921
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
RFIR_WO_787537_TV08155_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0325
Downstream MH
08 0324
Dir. of Survey
Downstream
Length Surveyed
176.3 ft.
Total Length
176.3 ft.
Structural Index
3
Structural Quick
4F3F
Structural Rating
306
O&M Index
2
O&M Quick
2F12
O&M Rating
70
Overall Index
3
Overall Quick
—
Overall Rating
376
Pipe schematic from manhole 08 0325 to 08 0324
MH: 08 0325MH: 08 0324downstream0 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - @ MH0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONN 9 O'CLOCK @ MH/ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03252 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start9.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"36.9 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN54.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"102.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"153.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"173 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish173 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - @ MH173 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish174 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish174 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish176.3 ft. AMH - Downstream Manhole, Survey Ends - 08 0324

Observation photos (2)

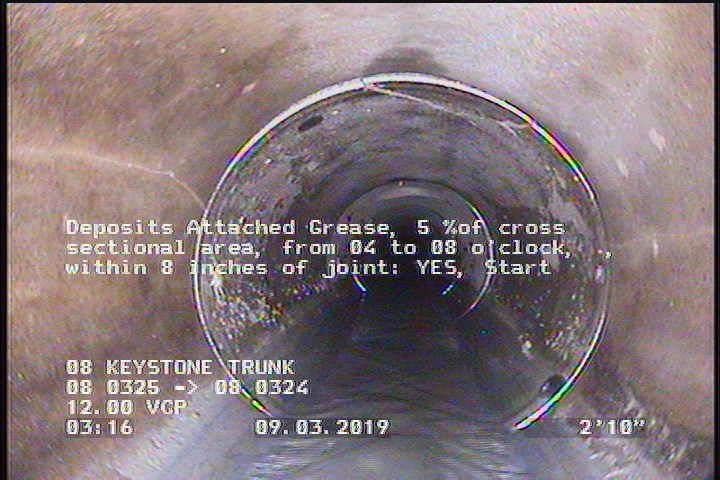

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

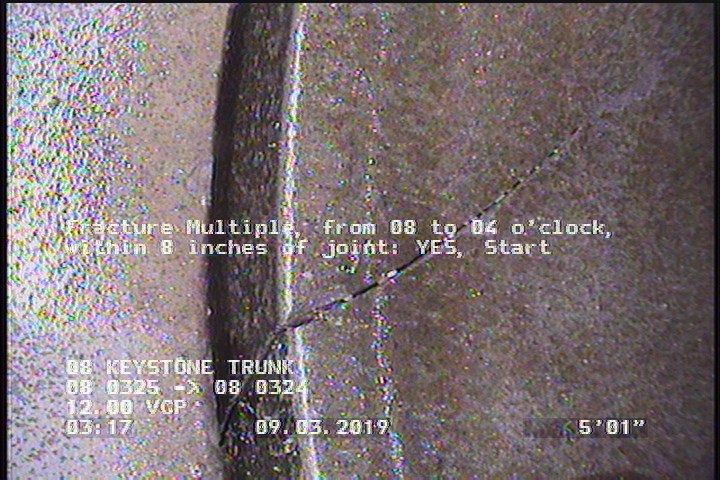

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00373Work order 787537

Observations (20)

DistanceCodeObservation
174FM—
2CM—
173SSS—
0VC@ MH
9.2TFC—
173VC@ MH
2SSS—
153.9TFA—
176.3AMH08 0324
54.3TFC—
102.6TFC—
0MWM—
36.9TBOPEN
174DAGS—
173CM—
5.1FM—
0MGOCONN 9 O'CLOCK @ MH/ACTIVE
0MWL—
2.8DAGS—
0AMH08 0325

Properties (6)

additional_info
SC378518
custom_field_two
2
customer
LACSD
datetime
2019-09-03T03:15:28-07:00
documentation
PROPIPE
is_lateral_inspection
false
