Wastewater/Activity/PacpInspection/1.0Sep 4, 2019, 08:23 AM
08 0306_08 0305A_09042019_013037.mp4
- Date
- 09/04/2019
- W/O
- 787537
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00013
- PipeID
- P00355
- Time
- 1:23 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6922
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787537_TV08155_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0306
- Downstream MH
- 08 0305A
- Dir. of Survey
- Downstream
- Length Surveyed
- 92.9 ft.
- Total Length
- 92.9 ft.
- Structural Index
- 3
- Structural Quick
- 3B21
- Structural Rating
- 53
- O&M Index
- 2
- O&M Quick
- 2B12
- O&M Rating
- 36
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 89
Observation photos (2)

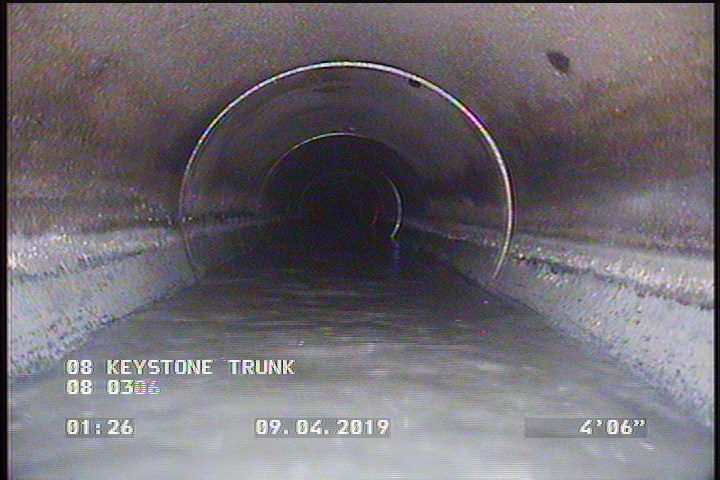

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

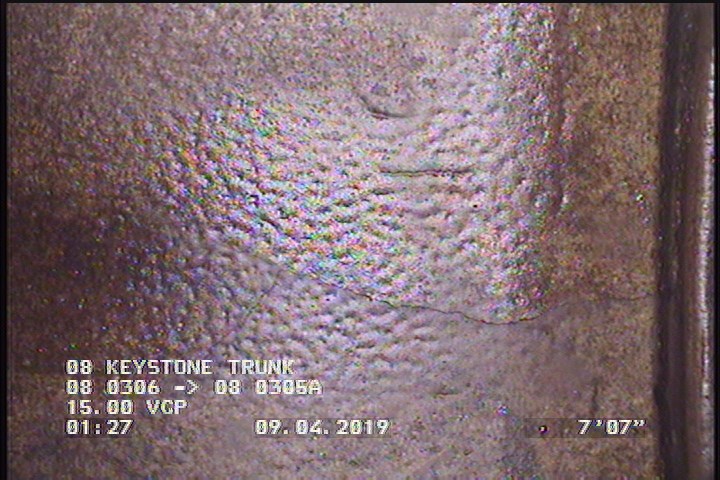

7.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 91 | VC | @ MH |
| 91 | SSS | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 92.9 | AMH | 08 0305A |
| 90.7 | DAGS | — |
| 0 | VC | @ MH |
| 90.7 | CM | — |
| 7.6 | CM | — |
| 0 | AMH | 08 0306 |
| 0 | MWM | — |
| 51 | TFC | — |
| 92.9 | MGO | CONN AT MH 9 O'CLOCK/ACTIVE |
| 4.5 | DAGS | — |
| 0 | MGO | CONN AT MH 3 O'CLOCK/OPEN |
Properties (5)
- additional_info
- SC378519
- customer
- LACSD
- datetime
- 2019-09-04T01:23:50-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
