Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 4, 2019, 08:02 AM

  • 08 0308_08 0307_09042019_011542.mp4

Date
09/04/2019
W/O
787537
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00013
PipeID
P00354
Time
1:02 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6922
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_787537_TV08155_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0308
Downstream MH
08 0307
Dir. of Survey
Downstream
Length Surveyed
314.2 ft.
Total Length
314.2 ft.
Structural Index
3
Structural Quick
4K2K
Structural Rating
372
O&M Index
2
O&M Quick
2K11
O&M Rating
125
Overall Index
3
Overall Quick
—
Overall Rating
497
Pipe schematic from manhole 08 0308 to 08 0307
MH: 08 0308MH: 08 0307downstream0 ft. MGO - General Observation - CONN AT MH 3 O'CLOCK/ACATIVE0 ft. AMH - Upstream Manhole, Survey Begins - 08 03080 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - @ MH2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.2 ft. DAGS - Deposits Attached Grease, 0 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start35 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"83 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"132.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"183.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN282.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"311.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish311.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish313 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish314.2 ft. AMH - Downstream Manhole, Survey Ends - 08 0307314.2 ft. MGO - General Observation - CONN AT MH 3 O'CLOCK

Observation photos (2)

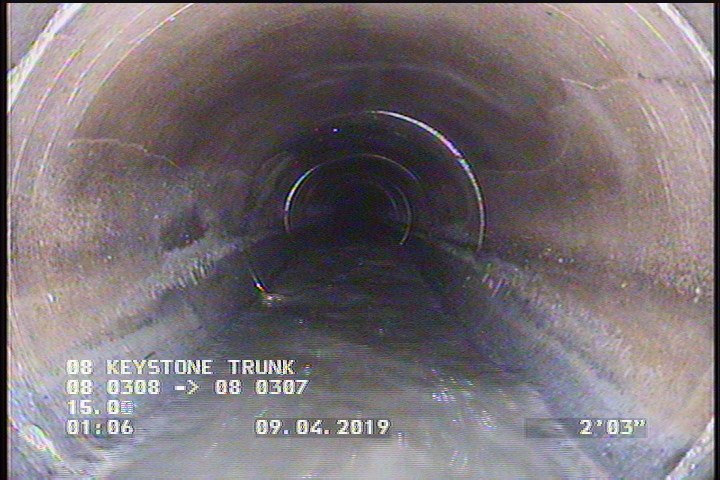

  • Deposits Attached Grease, 0 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 0 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

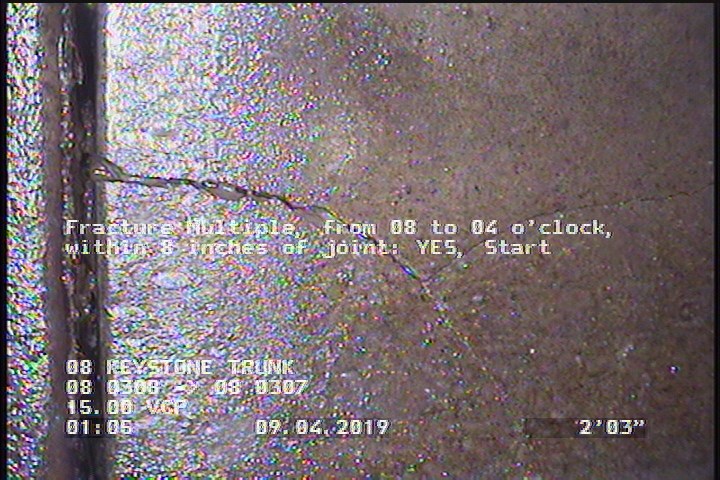

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00354Work order 787537

Observations (18)

DistanceCodeObservation
2.2DAGS—
311.5FM—
0MGOCONN AT MH 3 O'CLOCK/ACATIVE
183.4TFOPEN
313SSS—
314.2AMH08 0307
0AMH08 0308
2.2FM—
83TFC—
2VC@ MH
0MWL—
2SSS—
311.5DAGS—
132.4TFC—
314.2MGOCONN AT MH 3 O'CLOCK
0MWM—
282.5TFC—
35TFC—

Properties (6)

additional_info
SC378519
custom_field_two
2
customer
LACSD
datetime
2019-09-04T01:02:53-07:00
documentation
PROPIPE
is_lateral_inspection
false
