Wastewater/Activity/PacpInspection/1.0Sep 11, 2019, 06:59 AM
14 0124_14 0123A_09112019_000550.mp4
- Date
- 09/10/2019
- W/O
- 787496
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P26493
- Time
- 11:59 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6891
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787496_TV14066_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0123A
- Downstream MH
- 14 0124
- Dir. of Survey
- Upstream
- Length Surveyed
- 70.4 ft.
- Total Length
- 70.4 ft.
- Structural Index
- 3
- Structural Quick
- 3921
- Structural Rating
- 29
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 26
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 55
Observation photos (4)

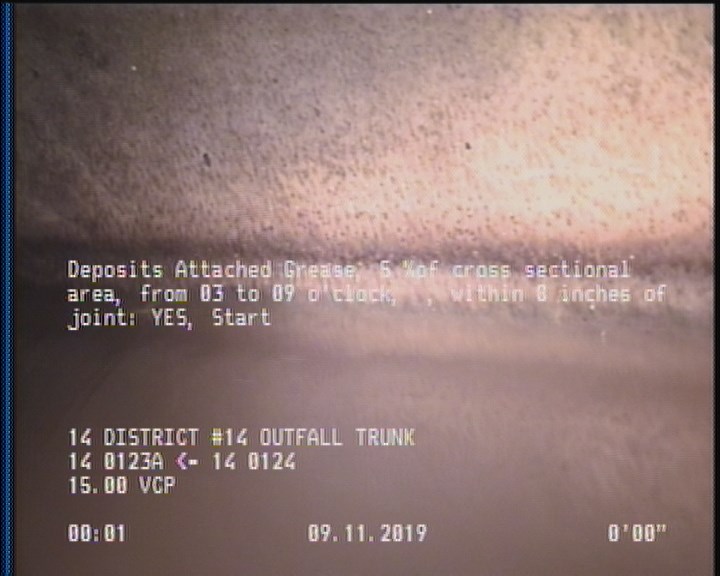

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

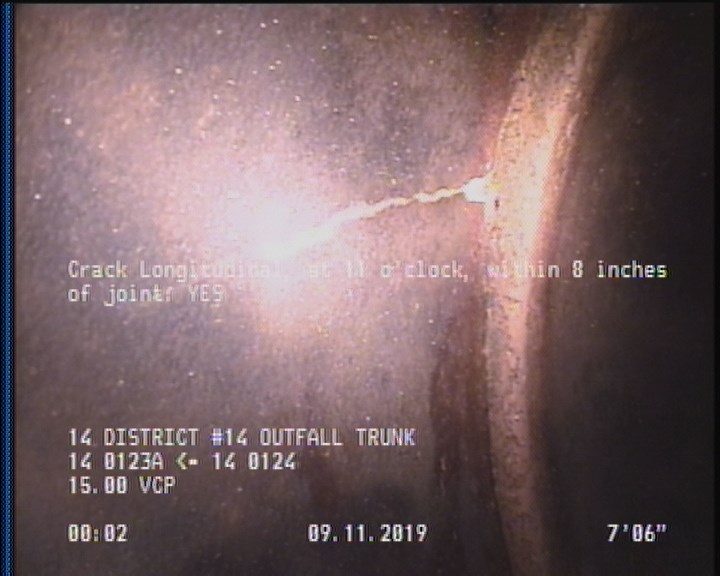

7.5 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

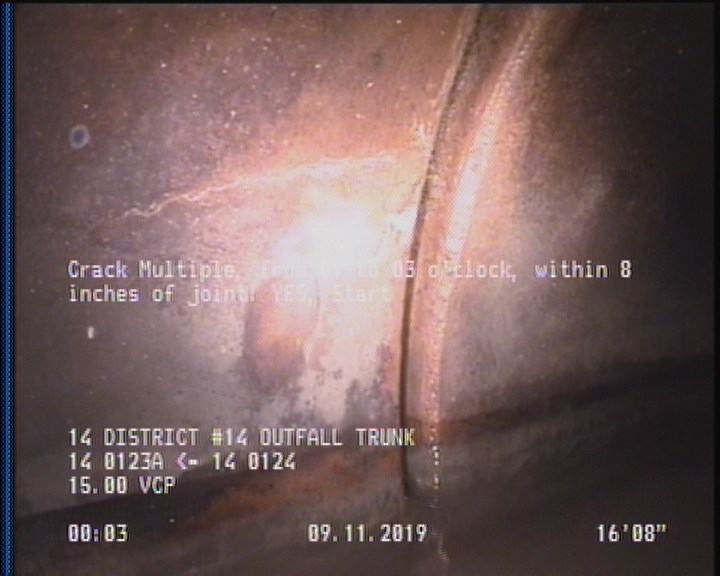

16.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

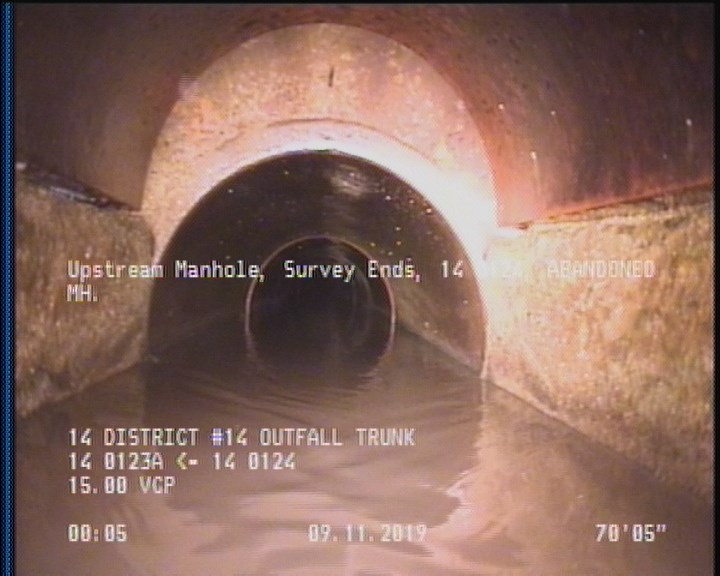

70.4 ft. - Upstream Manhole, Survey Ends - 14 0124, ABANDONED MH.
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 7.5 | CL | — |
| 63.3 | CM | — |
| 0 | AMH | 14 0123A |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 0 | MWL | — |
| 16.3 | CM | — |
| 2 | DAGS | — |
| 70.4 | AMH | 14 0124, ABANDONED MH. |
| 0 | MWM | — |
| 67.8 | DAGS | — |
Properties (6)
- additional_info
- SC378607
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-10T23:59:50-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
