Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 11, 2019, 05:26 AM

  • 14 0126_14 0125 _09102019_231048.mp4

Date
09/10/2019
W/O
787496
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00571
PipeID
P18156
Time
10:26 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6891
Sewer Name
14 DISTRICT #14 OUTFALL TRUNK
City
LANCASTER
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_787496_TV14066_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0126
Downstream MH
14 0125
Dir. of Survey
Downstream
Length Surveyed
282.1 ft.
Total Length
282.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
312U
O&M Rating
227
Overall Index
2
Overall Quick
—
Overall Rating
232
Pipe schematic from manhole 14 0126 to 14 0125
MH: 14 0126MH: 14 0125downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 01260 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start0 ft. MWL - Water Level, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start179.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"182.1 ft. MWL - Water Level, 50 %of cross sectional area182.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"261.3 ft. FS - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES281.7 ft. CS - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES282 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish282.1 ft. OBZ - Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock - BELOW WATER LEVEL.282.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish282.1 ft. AMH - Downstream Manhole, Survey Ends - 14 0125

Observation photos (6)

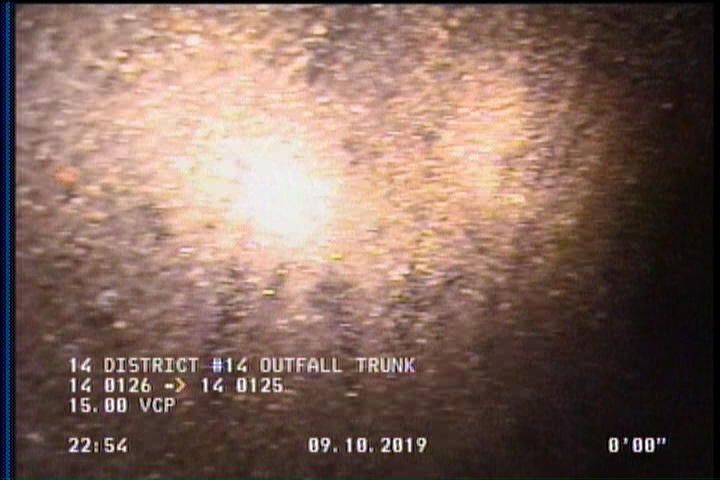

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

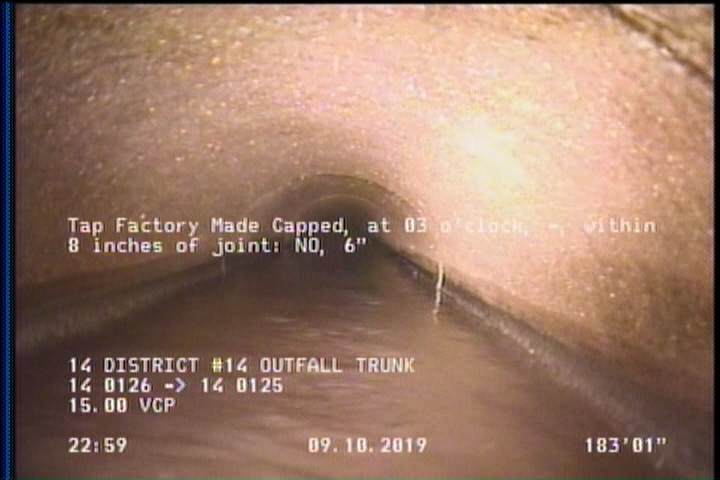

  • Water Level, 50 %of cross sectional area

    182.1 ft. - Water Level, 50 %of cross sectional area

  • Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

    261.3 ft. - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

  • Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

    281.7 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

  • Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock - BELOW WATER LEVEL.

    282.1 ft. - Obstacles Other, 15 %of cross sectional area, from 05 to 07 o'clock - BELOW WATER LEVEL.

All inspections of P18156Work order 787496

Observations (15)

DistanceCodeObservation
282.1OBZBELOW WATER LEVEL.
261.3FS—
0MWM—
2DAGS—
179.3TFC—
282DAE—
0AMH14 0126
282.1DAGS—
182.3TFC—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
281.7CS—
182.1MWL—
0DAE—
0MWL—
282.1AMH14 0125

Properties (6)

additional_info
SC378607
custom_field_two
3
customer
LACSD
datetime
2019-09-10T22:26:57-07:00
documentation
PRO PIPE
is_lateral_inspection
false
