Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 11, 2019, 06:36 AM

  • 14 0125_14 0124 _09102019_234323.mp4

Date
09/10/2019
W/O
787496
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00571
PipeID
P18155
Time
11:36 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6891
Sewer Name
14 DISTRICT #14 OUTFALL TRUNK
City
LANCASTER
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_787496_TV14066_SEP2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0125
Downstream MH
14 0124
Dir. of Survey
Downstream
Length Surveyed
17.4 ft.
Total Length
17.4 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
3
O&M Quick
4131
O&M Rating
13
Overall Index
3
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 14 0125 to 14 0124
MH: 14 0125MH: 14 0124downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 01250 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 8 O'CLOCK0 ft. MWM - Water Mark, 70 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start4.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES11.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start14.5 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - DEBRIS UNDER WATER17.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish17.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish17.4 ft. MSA - Survey Abandoned - DUE TO DEBRIS

Observation photos (3)

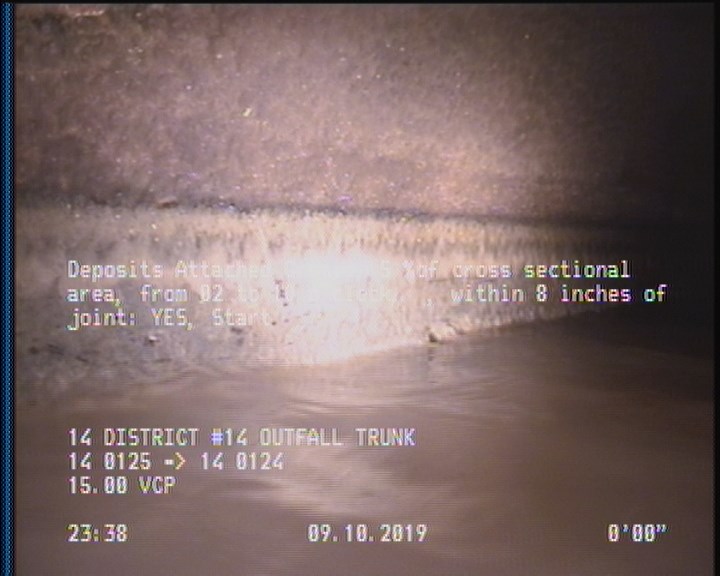

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

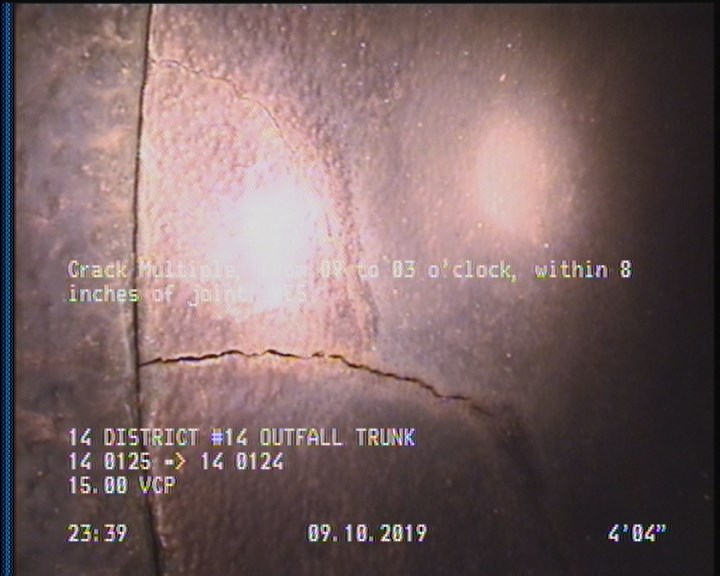

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    4.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

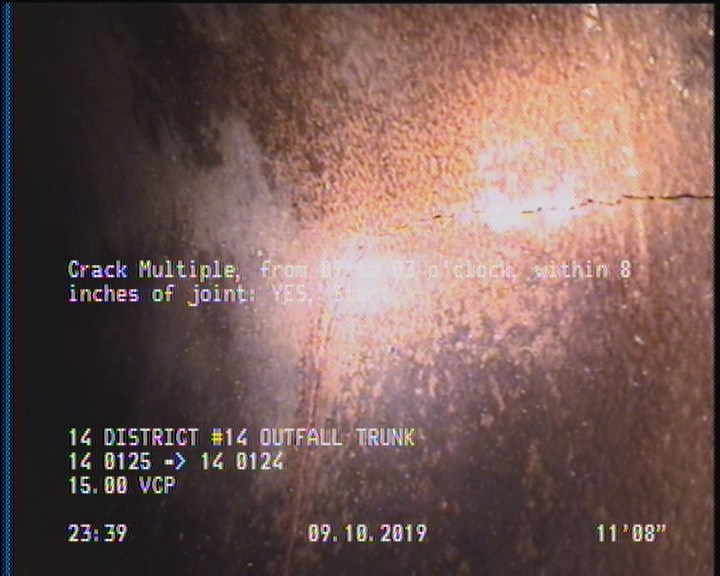

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    11.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P18155Work order 787496

Observations (11)

DistanceCodeObservation
17.4CM—
11.7CM—
17.4DAGS—
0AMH14 0125
0MWL—
0MGOACTIVE CONNECTION AT MH 8 O'CLOCK
17.4MSADUE TO DEBRIS
4.3CM—
2DAGS—
0MWM—
14.5DSZDEBRIS UNDER WATER

Properties (6)

additional_info
SC378607
custom_field_two
5
customer
LACSD
datetime
2019-09-10T23:36:16-07:00
documentation
PRO PIPE
is_lateral_inspection
false
