Wastewater/Activity/PacpInspection/1.0Sep 12, 2019, 05:24 AM
14 0115_14 0114 _09112019_223759.mp4
- Date
- 09/11/2019
- W/O
- 787496
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00571
- PipeID
- P18145
- Time
- 10:24 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6893
- Sewer Name
- 14 DISTRICT #14 OUTFALL TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- RFIR_WO_787496_TV14066_SEP2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0115
- Downstream MH
- 14 0114
- Dir. of Survey
- Downstream
- Length Surveyed
- 420.6 ft.
- Total Length
- 420.6 ft.
- Structural Index
- 3
- Structural Quick
- 413O
- Structural Rating
- 249
- O&M Index
- 2
- O&M Quick
- 412P
- O&M Rating
- 172
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 421
Observation photos (5)

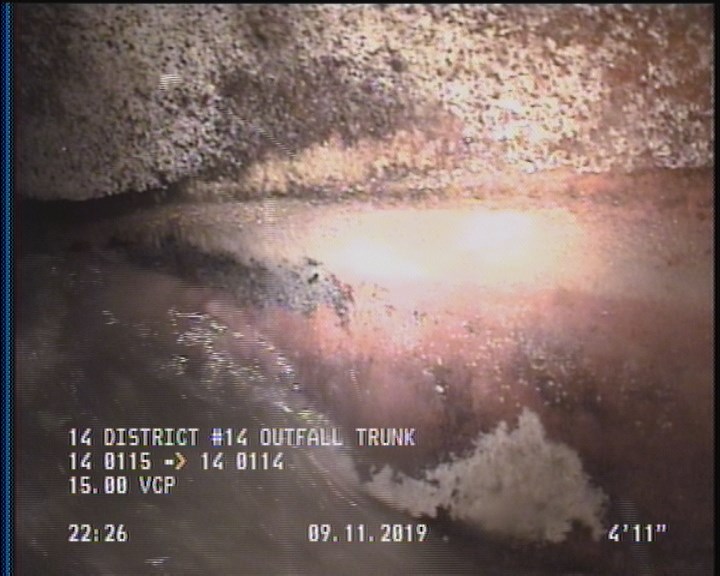

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

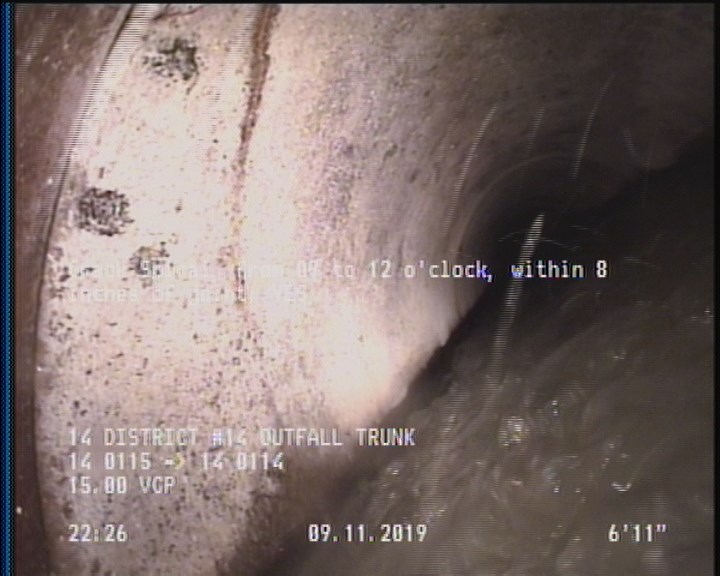

7 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

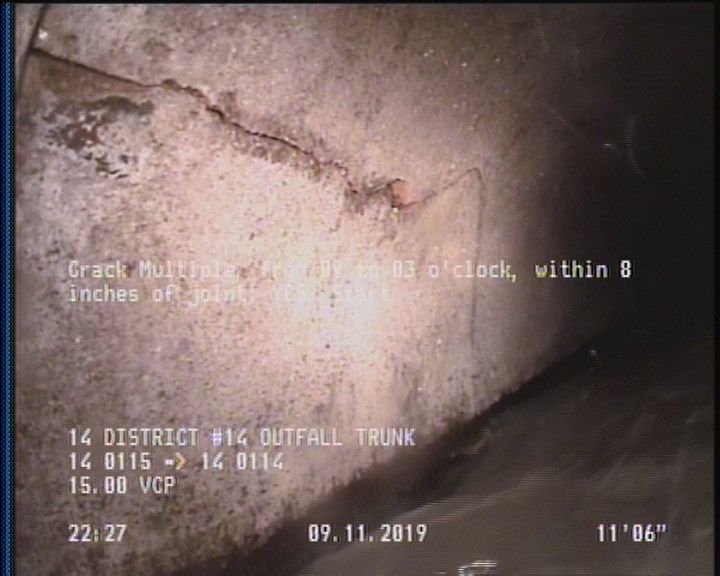

11.5 ft. - FRCTURE Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

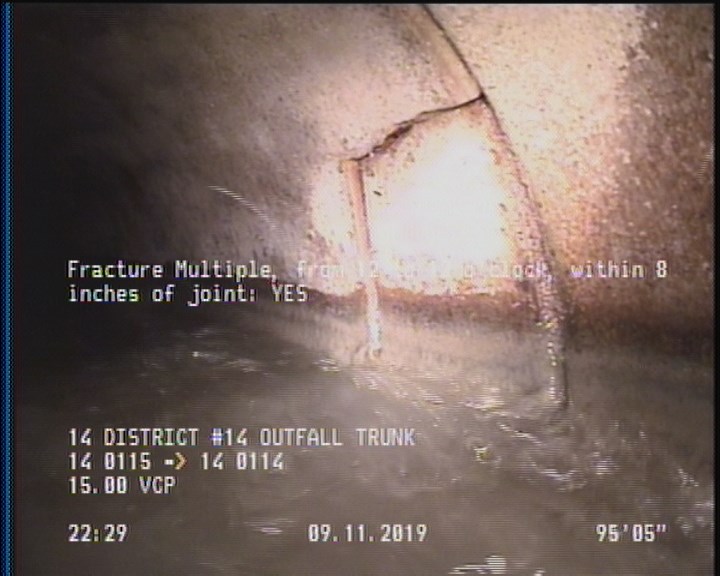

95.4 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

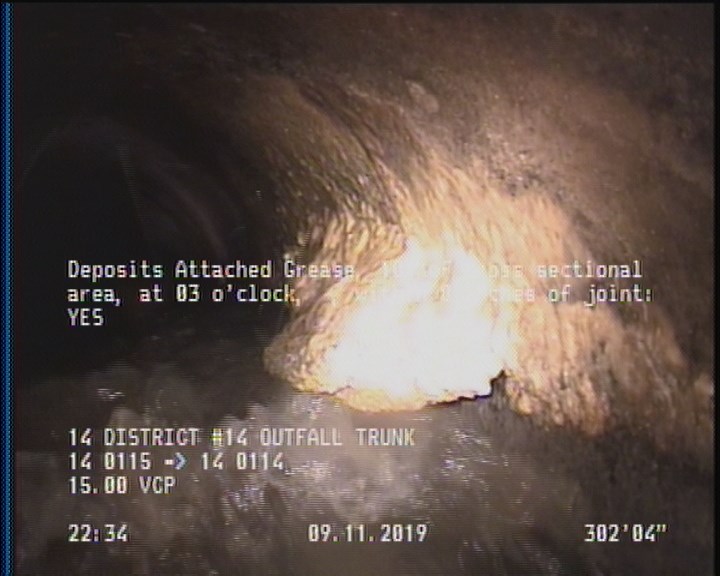

302.3 ft. - Deposits Attached Grease, 10 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 418.7 | CM | — |
| 418.7 | DAGS | — |
| 0 | MWL | — |
| 420.6 | AMH | 14 0114 |
| 2 | DAGS | — |
| 7 | CS | — |
| 0 | AMH | 14 0115 |
| 302.3 | DAGS | — |
| 11.5 | CM | — |
| 95.4 | FM | — |
Properties (6)
- additional_info
- SC378609
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-11T22:24:45-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
