Wastewater/Activity/PacpInspection/1.0Aug 29, 2019, 10:29 AM
01 0230A_01 0230_08292019_032921.mp4
- Date
- 08/29/2019
- W/O
- 782759
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00202
- PipeID
- P01273
- Time
- 3:29 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6516
- Sewer Name
- 01 COMPTON AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782759_TV01222_AUG2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 01 0230A
- Downstream MH
- 01 0230
- Dir. of Survey
- Downstream
- Length Surveyed
- 277.5 ft.
- Total Length
- 277.5 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

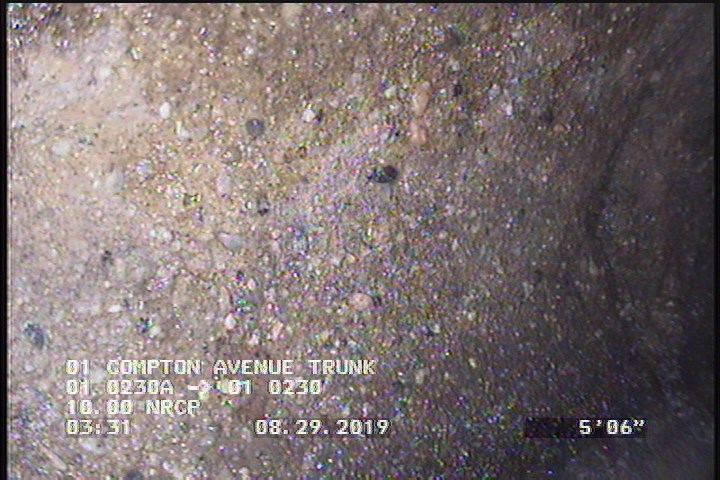

5.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

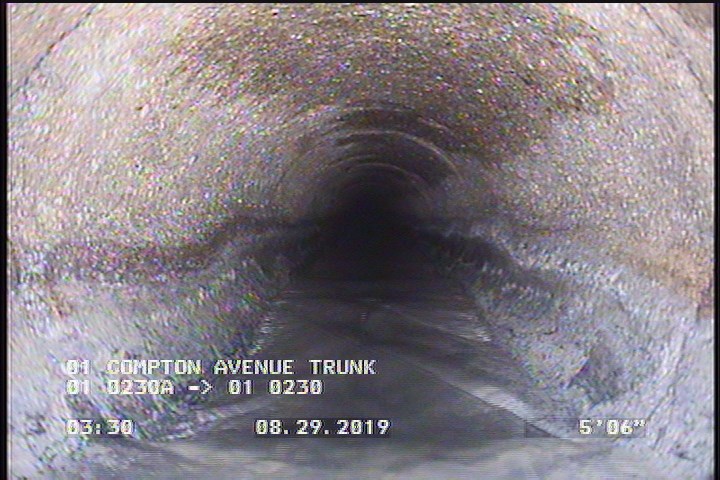

5.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

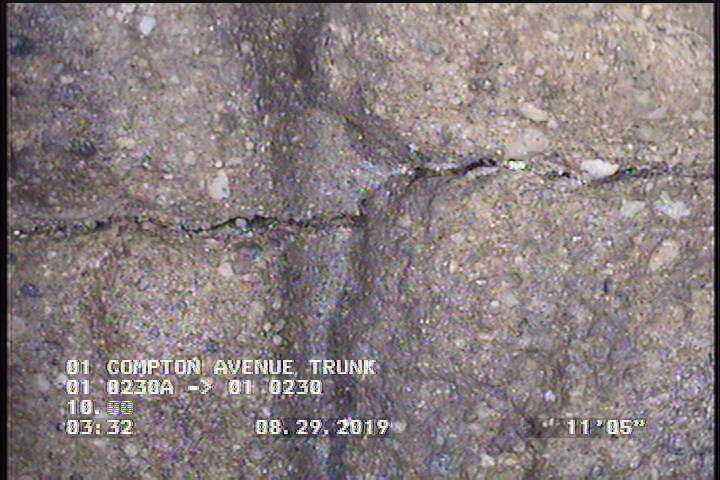

11.4 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: NO

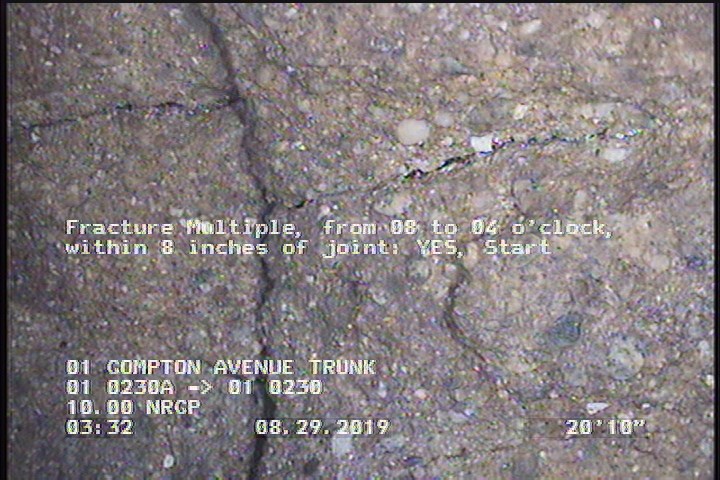

20.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 277.5 | MGO | UNKNOWN CONNECTION AT MH 3 O'CLOCK - 60 % OBSTRUCTED (DEBRIS) |
| 0 | MGO | UNKNOWN CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 01 0230A |
| 11.4 | FL | — |
| 136.8 | TF | — |
| 20.8 | FM | — |
| 5.5 | SAP | — |
| 0 | MWM | — |
| 277.5 | AMH | 01 0230 |
| 275.6 | FM | — |
| 264.3 | TFB | UNKNOWN |
| 185.2 | TF | — |
| 208 | TF | — |
| 131.9 | TFB | UNKNOWN |
| 238.6 | TF | — |
| 5.5 | DAGS | — |
| 275.6 | DAGS | — |
| 0 | MWL | — |
| 251.7 | TFB | UNKNOWN - 35% OF CROSS-SECTION BLOCKED (DEBRIS) |
| 167.1 | TF | — |
| 275.6 | SAP | — |
| 210.7 | TFA | — |
| 88.4 | TF | — |
| 91.8 | TFB | UNKNOWN |
Properties (6)
- additional_info
- SC378513
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-29T03:29:14-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
