Wastewater/Activity/PacpInspection/1.0Aug 29, 2019, 06:21 AM
01 0217_01 0216_08282019_232223.mp4
- Date
- 08/28/2019
- W/O
- 782759
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00202
- PipeID
- P01259
- Time
- 11:21 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6916
- Sewer Name
- 01 COMPTON AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782759_TV01222_AUG2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 0217
- Downstream MH
- 01 0216
- Dir. of Survey
- Downstream
- Length Surveyed
- 383.8 ft.
- Total Length
- 383.8 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2311
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (5)

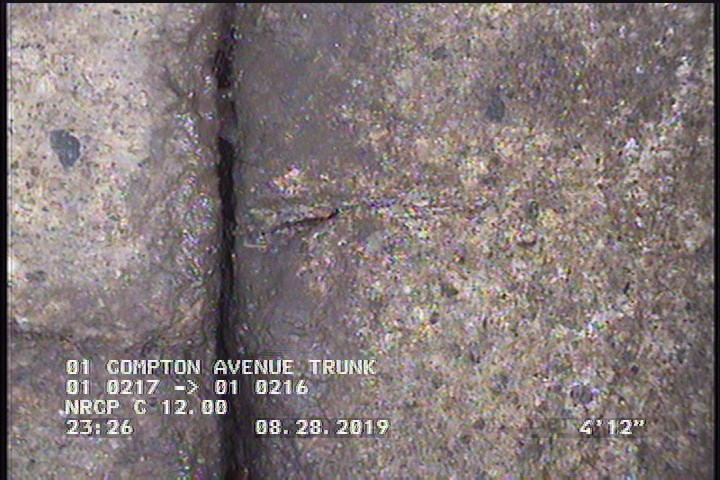

5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

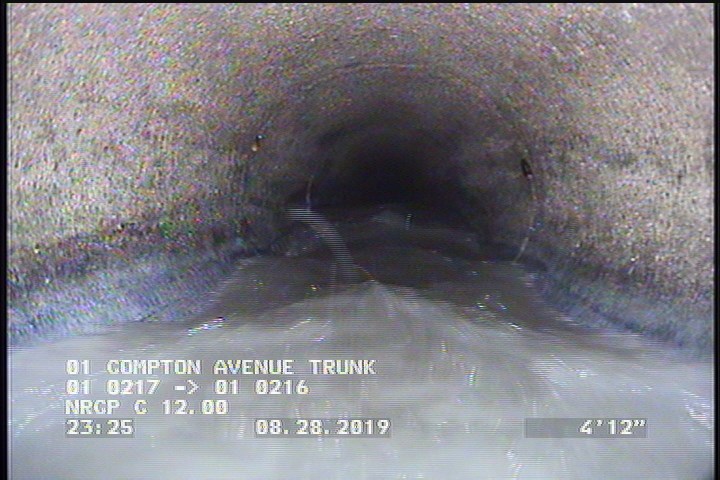

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

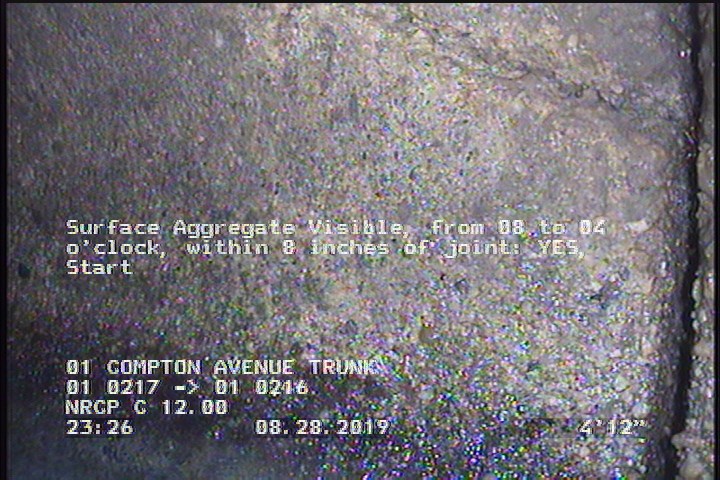

5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

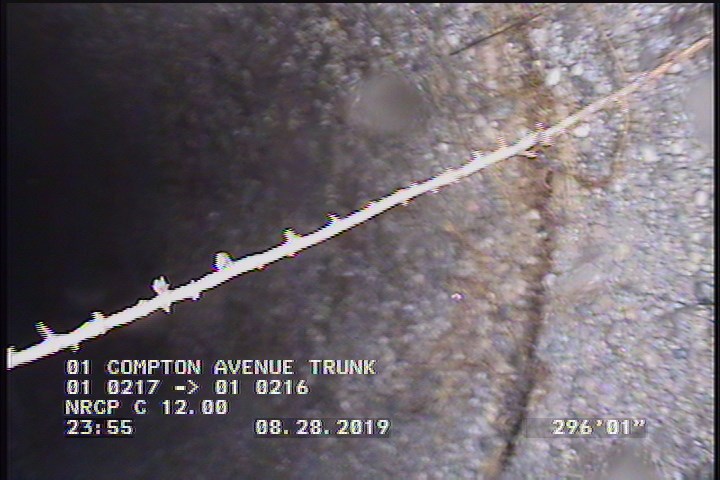

295.9 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

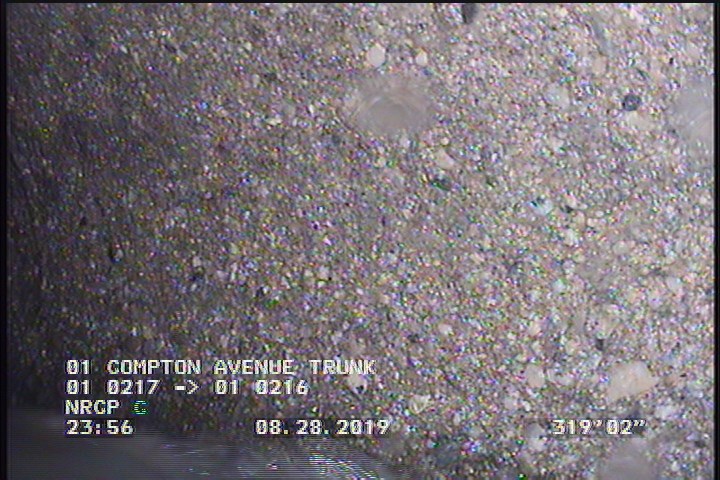

319 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (30)
| Distance | Code | Observation |
|---|---|---|
| 154.7 | TF | — |
| 233.6 | TF | — |
| 0 | AMH | 01 0217 |
| 315.4 | TF | — |
| 70.5 | TF | — |
| 0 | MWL | — |
| 276.6 | DSC | — |
| 0 | MWM | — |
| 5 | FM | — |
| 319 | SAV | — |
| 210.4 | TFB | UNKNOWN |
| 126.7 | TF | — |
| 383.8 | AMH | 01 0216 |
| 294 | TFA | — |
| 109.5 | MWL | — |
| 5 | DAGS | — |
| 356.6 | TF | — |
| 21.2 | MWL | — |
| 383.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 5 | SAV | — |
| 381.2 | FM | — |
| 91.1 | TF | — |
| 139.7 | DSC | — |
| 0 | MGO | ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK |
| 261.8 | TFB | UNKNOWN |
| 381.2 | SAP | — |
| 226.1 | TF | — |
| 295.9 | RFJ | — |
| 319 | SAP | — |
| 27.9 | TF | — |
Properties (6)
- additional_info
- SC378513
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-28T23:21:47-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
