Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2019, 08:07 AM

  • 01 0214_01 0213_08292019_010743.mp4

Date
08/29/2019
W/O
782759
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00202
PipeID
P01256
Time
1:07 AM
Certificate
U-715-0700077
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6916
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
RFIR_WO_782759_TV01222_AUG2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0214
Downstream MH
01 0213
Dir. of Survey
Downstream
Length Surveyed
162.1 ft.
Total Length
162.1 ft.
Structural Index
3
Structural Quick
423E
Structural Rating
101
O&M Index
2
O&M Quick
412E
O&M Rating
68
Overall Index
3
Overall Quick
—
Overall Rating
169
Pipe schematic from manhole 01 0214 to 01 0213
MH: 01 0214MH: 01 0213downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 02144.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.5 ft. FM - Fracture Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES4.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start103.6 ft. DSC - Deposits Settled Compacted, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES135.7 ft. FM - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES160.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish160.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish162.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK162.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0213

Observation photos (3)

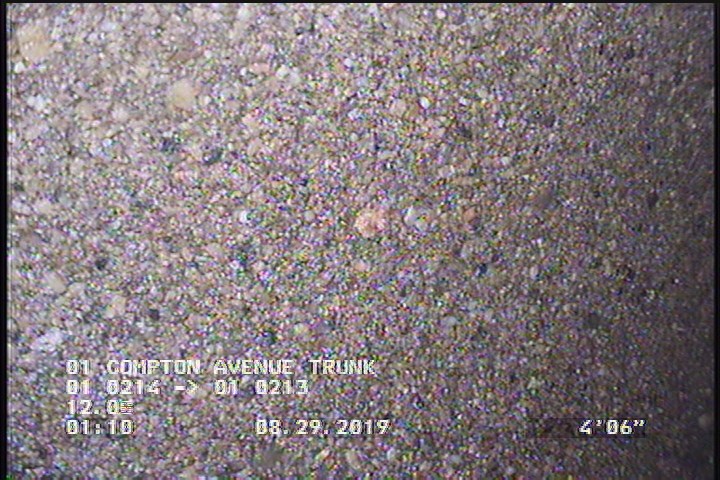

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    4.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    135.7 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

All inspections of P01256Work order 782759

Observations (12)

DistanceCodeObservation
135.7FM—
0MWL—
160.1DAGS—
103.6DSC—
160.1SAP—
4.5SAP—
4.5FM—
4.6DAGS—
162.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
162.1AMH01 0213
0MWM—
0AMH01 0214

Properties (6)

additional_info
SC378513
custom_field_two
3
customer
LACSD
datetime
2019-08-29T01:07:05-07:00
documentation
PROPIPE
is_lateral_inspection
false
