  • 32 1218_32 1217A _09202019_010732.mp4

Date
09/20/2019
W/O
782705
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00843
PipeID
P25648
Time
12:56 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6904
Sewer Name
32 SOLEDAD CANYON RELIEF TRUNK
City
SANTA CLARITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_782705_TV32001_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
32 1218
Downstream MH
32 1217A
Dir. of Survey
Downstream
Length Surveyed
327.2 ft.
Total Length
327.2 ft.
Structural Index
3
Structural Quick
3K2K
Structural Rating
300
O&M Index
2
O&M Quick
412L
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
432
Pipe schematic from manhole 32 1218 to 32 1217A
MH: 32 1218MH: 32 1217Adownstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 12182 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start25.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start25.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start58.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"291.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6" - UNKNOWN - POSSIBLY CAPPED / "MAG COATED"324.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish324.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish324.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish327.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK327.2 ft. AMH - Downstream Manhole, Survey Ends - 32 1217A

Observation photos (2)

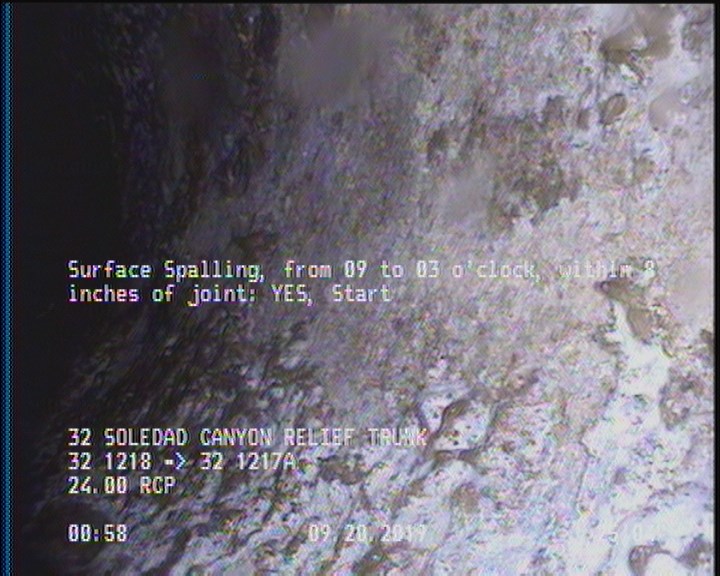

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    25.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

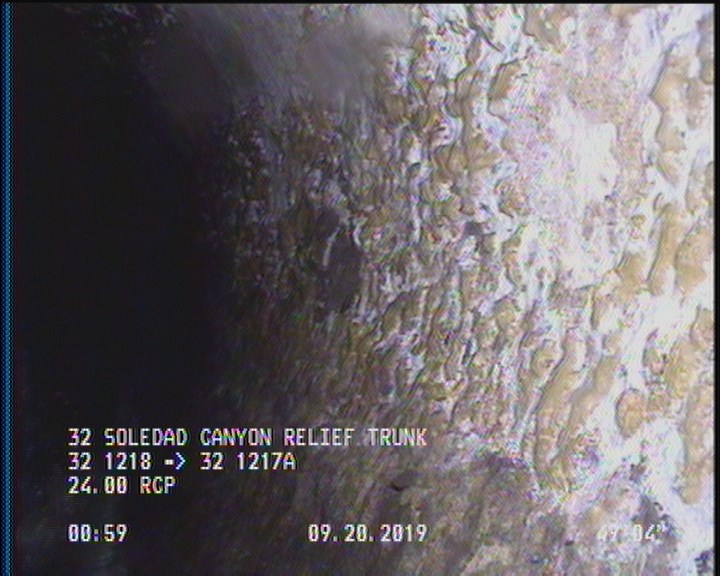

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    25.3 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P25648Work order 782705

Observations (13)

DistanceCodeObservation
324.2DAGS—
58.6TBA—
0MWL—
0MWM—
324.2SSS—
25.3SSS—
327.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
291.2TFCUNKNOWN - POSSIBLY CAPPED / "MAG COATED"
327.2AMH32 1217A
324.2SAP—
0AMH32 1218
2DAGS—
25.3SAP—

Properties (7)

additional_info
SC378620
custom_field_two
2
customer
LACSD
datetime
2019-09-20T00:56:06-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
26787
