Wastewater/Activity/PacpInspection/1.0Sep 20, 2019, 05:56 AM
32 1219_32 1218 _09202019_005544.mp4
- Date
- 09/19/2019
- W/O
- 782705
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19673
- Time
- 10:56 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6904
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782705_TV32001_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 32 1219
- Downstream MH
- 32 1218
- Dir. of Survey
- Downstream
- Length Surveyed
- 407.3 ft.
- Total Length
- 407.3 ft.
- Structural Index
- 3
- Structural Quick
- 3L21
- Structural Rating
- 203
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 205
Observation photos (3)

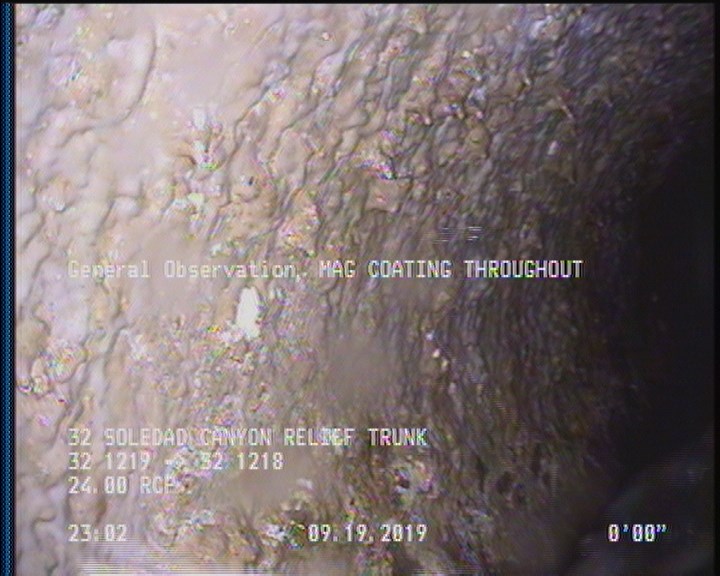

2 ft. - General Observation - 70% MAG COATING THROUGHOUT

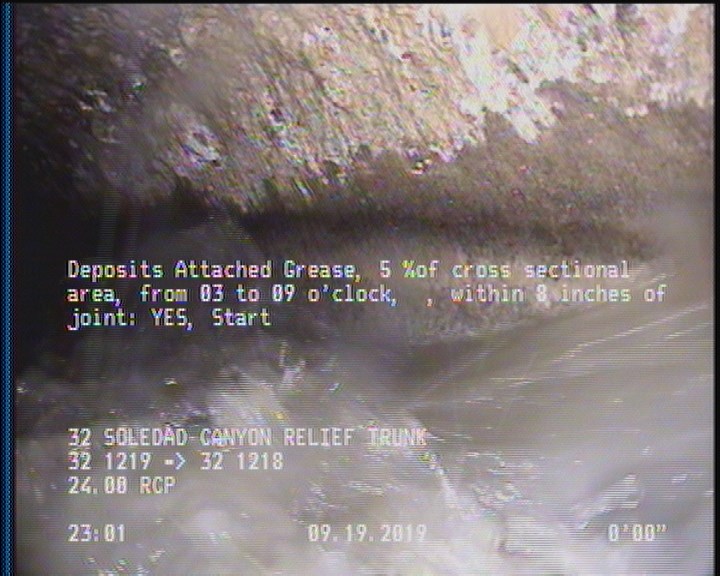

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
283.6 ft. - Tap Factory Made at 02 o'clock, -, within 8 inches of joint: NO, 6" - UNKNOWN
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 39.8 | SSS | — |
| 2 | MGO | 70% MAG COATING THROUGHOUT |
| 71.2 | SAP | — |
| 283.6 | TFC | UNKNOWN |
| 2 | DAGS | — |
| 405.5 | SAP | — |
| 0 | MGO | UNKNOWN CONN. @ MH 3 O'CLOCK |
| 405.5 | SSS | — |
| 405.5 | DAGS | — |
| 0 | AMH | 32 1219 |
| 407.3 | AMH | 32 1218 |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC378620
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-19T22:56:35-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 26787
