Wastewater/Activity/PacpInspection/1.0Sep 10, 2019, 09:28 AM
32 1228_32 1227 _09102019_030736.mp4
- Date
- 09/10/2019
- W/O
- 782705
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19682
- Time
- 2:28 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6890
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782705_TV32001_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 1228
- Downstream MH
- 32 1227
- Dir. of Survey
- Downstream
- Length Surveyed
- 604.3 ft.
- Total Length
- 604.3 ft.
- Structural Index
- 3
- Structural Quick
- 3W2W
- Structural Rating
- 600
- O&M Index
- 2
- O&M Quick
- 412W
- O&M Rating
- 244
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 844
Observation photos (4)

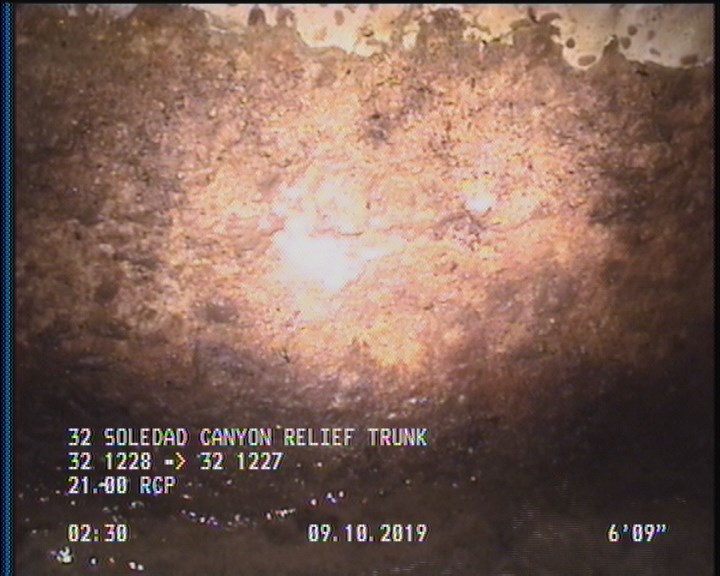

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

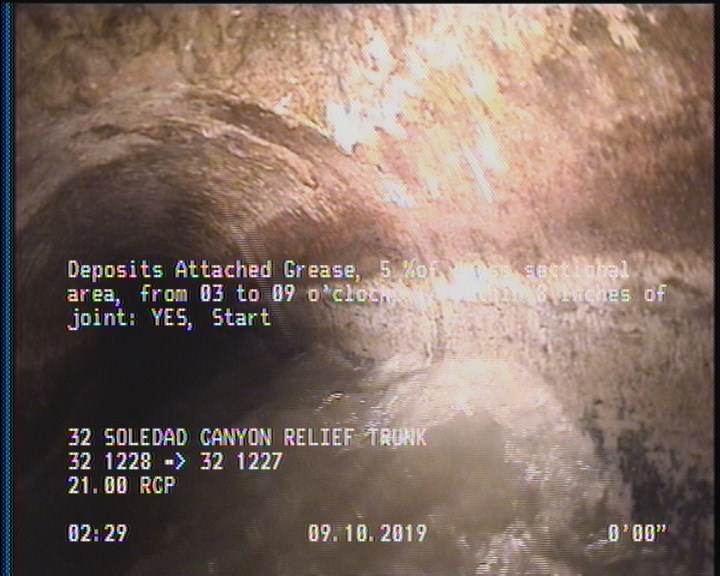

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

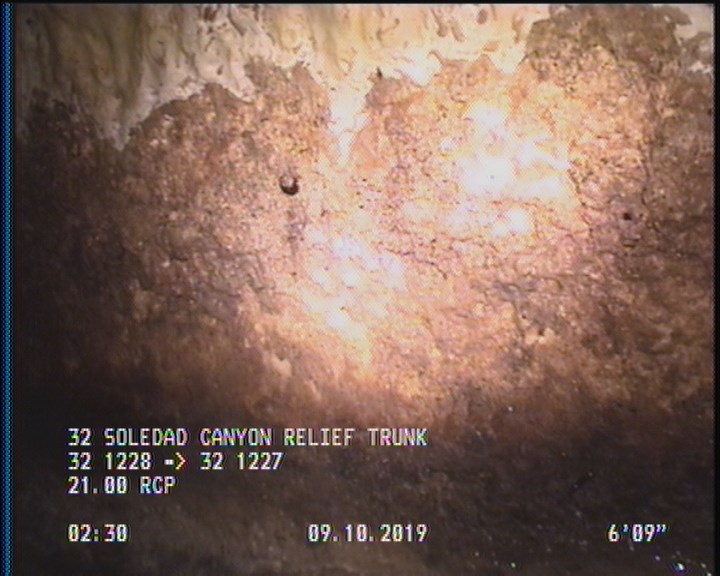

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

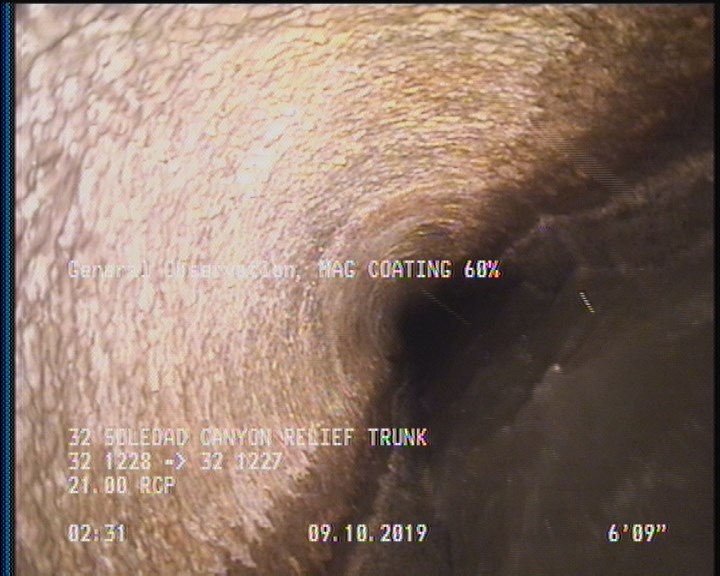

6.8 ft. - General Observation - MAG COATING 60%
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 604.3 | AMH | 32 1227 |
| 0 | MWM | — |
| 604.3 | DAGS | — |
| 604.2 | SAP | — |
| 6.8 | MGO | MAG COATING 60% |
| 604.3 | SSS | — |
| 0 | AMH | 32 1228 |
| 2 | DAGS | — |
| 2 | SSS | — |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC378606
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-10T02:28:09-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 26787
