Wastewater/Activity/PacpInspection/1.0Sep 16, 2019, 10:02 AM
32 1226_32 1225_09162019_033358.mp4
- Date
- 09/16/2019
- W/O
- 782705
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19680
- Time
- 3:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6897
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782705_TV32001_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 1226
- Downstream MH
- 32 1225
- Dir. of Survey
- Downstream
- Length Surveyed
- 606.3 ft.
- Total Length
- 606.3 ft.
- Structural Index
- 3
- Structural Quick
- 3W2W
- Structural Rating
- 605
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 242
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 847
Observation photos (4)

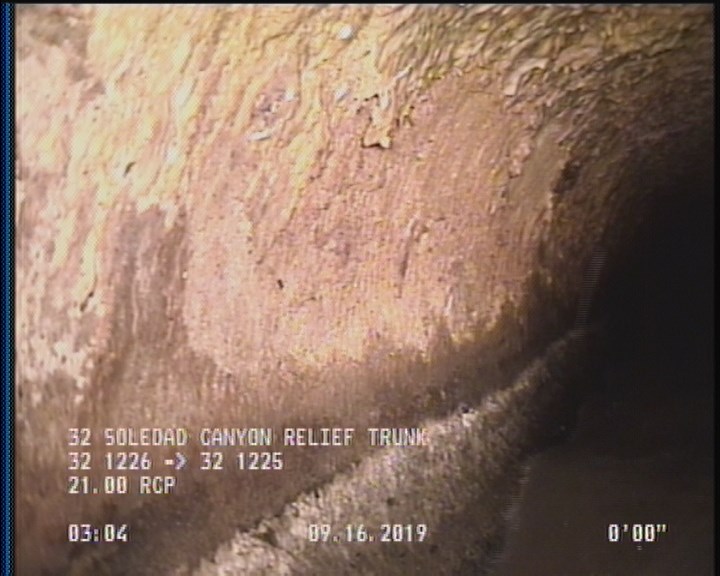

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

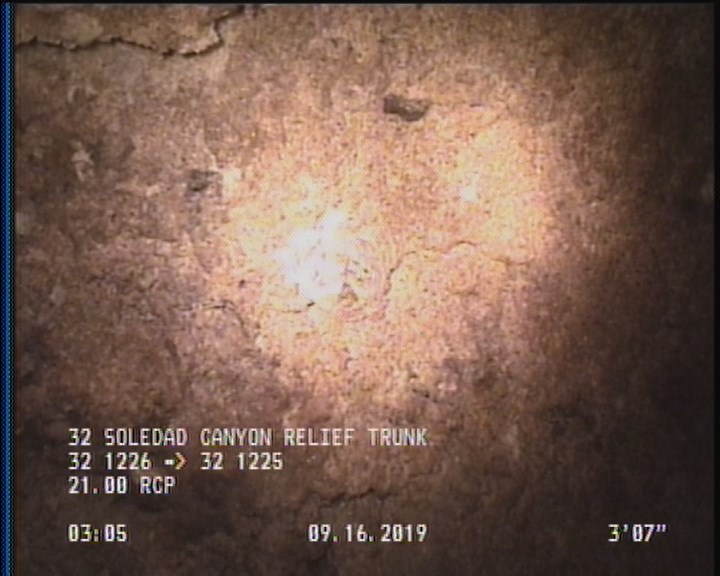

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

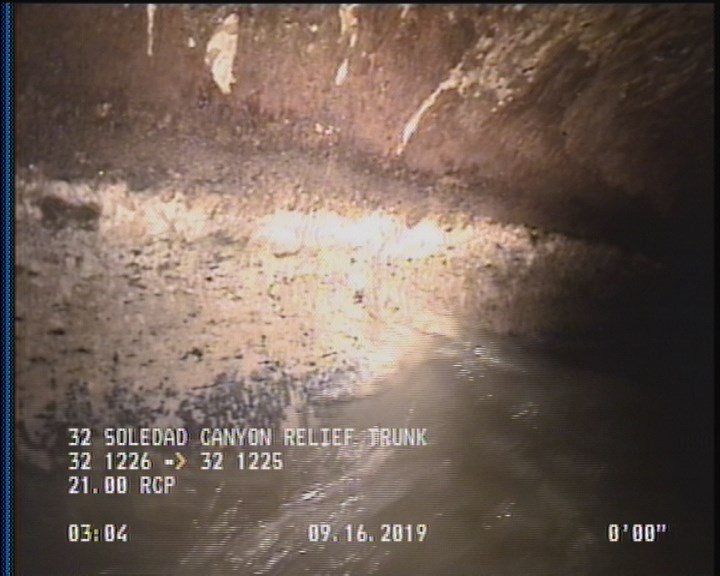

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

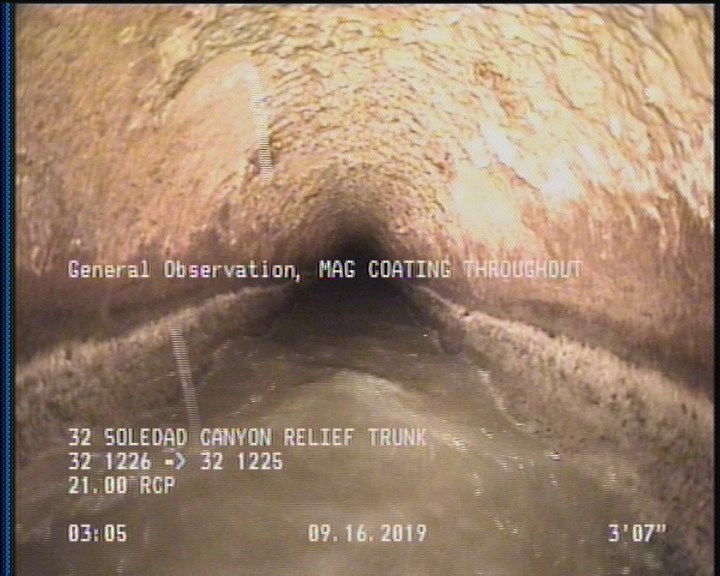

3.6 ft. - General Observation - 60% MAG COATING THROUGHOUT
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 604.7 | SSS | — |
| 2 | SSS | — |
| 604.7 | DAGS | — |
| 0 | AMH | 32 1226 |
| 604.7 | SAP | — |
| 3.6 | MGO | 60% MAG COATING THROUGHOUT |
| 0 | MWL | — |
| 606.3 | AMH | 32 1225 |
| 2 | SAP | — |
| 606.3 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (7)
- additional_info
- SC378613
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-16T03:02:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 26787
