Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2019, 08:42 AM

  • 32 1207_32 1206 _09262019_015824.mp4

Date
09/26/2019
W/O
782705
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00843
PipeID
P19661
Time
1:42 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K7016
Sewer Name
32 SOLEDAD CANYON RELIEF TRUNK
City
SANTA CLARITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_782705_TV32001_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
32 1207
Downstream MH
32 1206
Dir. of Survey
Downstream
Length Surveyed
371.3 ft.
Total Length
371.3 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
370
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
518
Pipe schematic from manhole 32 1207 to 32 1206
MH: 32 1207MH: 32 1206downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 12070 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.7 ft. MGO - General Observation - 75% MAG COATING THROUGHOUT369.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish369.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish369.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish371.3 ft. AMH - Downstream Manhole, Survey Ends - 32 1206

Observation photos (3)

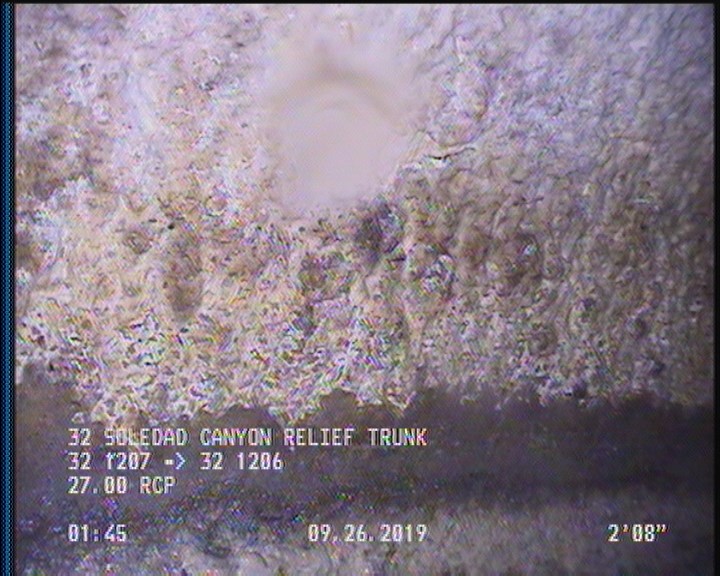

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

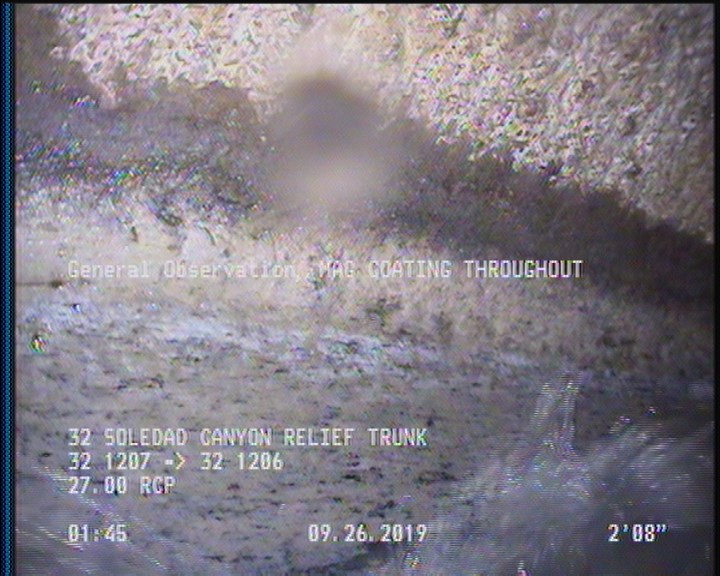

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

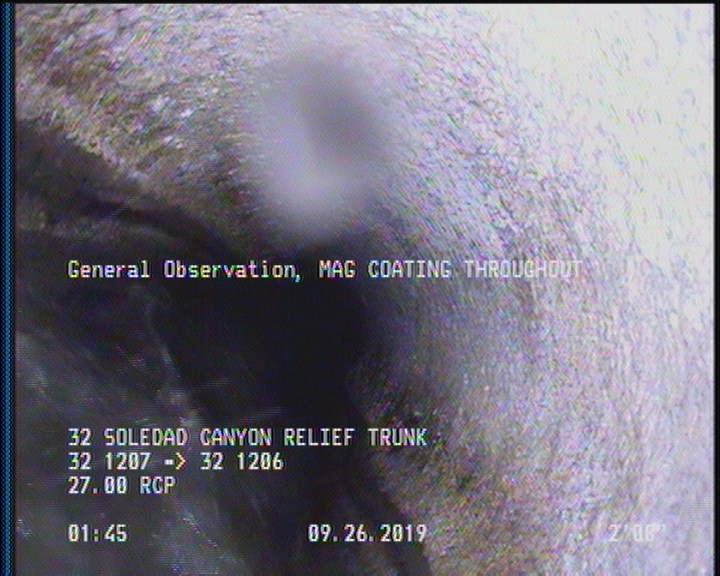

  • General Observation - 75% MAG COATING THROUGHOUT

    2.7 ft. - General Observation - 75% MAG COATING THROUGHOUT

All inspections of P19661Work order 782705

Observations (11)

DistanceCodeObservation
2SAP—
369.5SSS—
2.7MGO75% MAG COATING THROUGHOUT
0MWM—
2SSS—
2DAGS—
0AMH32 1207
371.3AMH32 1206
369.5SAP—
0MWL—
369.5DAGS—

Properties (7)

additional_info
SC378632
custom_field_two
2
customer
LACSD
datetime
2019-09-26T01:42:56-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
26872
