Wastewater/Activity/PacpInspection/1.0Sep 23, 2019, 09:32 AM
32 1201_32 1200 _09232019_025018.mp4
- Date
- 09/23/2019
- W/O
- 782705
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19655
- Time
- 2:32 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K7008
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782705_TV32001_AUG2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 32 1201
- Downstream MH
- 32 1200
- Dir. of Survey
- Downstream
- Length Surveyed
- 555 ft.
- Total Length
- 555 ft.
- Structural Index
- 3
- Structural Quick
- 3U2U
- Structural Rating
- 550
- O&M Index
- 2
- O&M Quick
- 2U00
- O&M Rating
- 220
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 770
Observation photos (3)

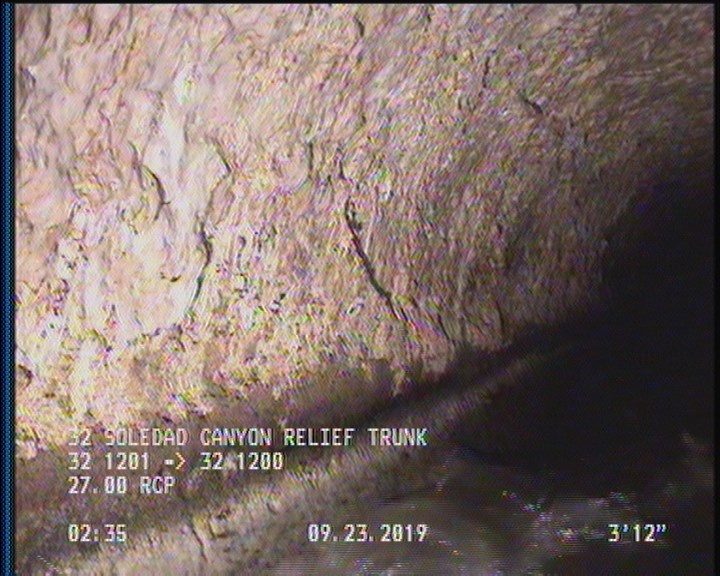

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

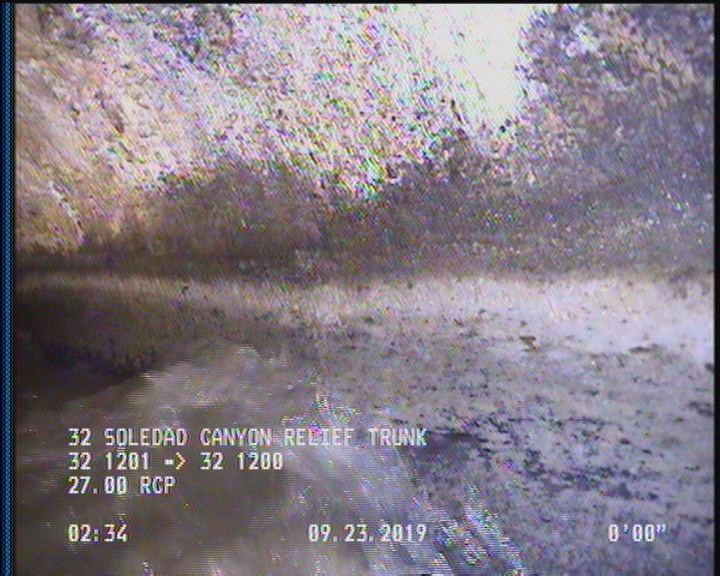

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 2 | MGO | MAG COATING 60% THROUGHOUT |
| 2 | DAGS | — |
| 2 | SAP | — |
| 552.3 | SSS | — |
| 0 | MWM | — |
| 552.3 | SAP | — |
| 0 | AMH | 32 1201 |
| 0 | MWL | — |
| 555 | AMH | 32 1200 |
| 552.3 | DAGS | — |
Properties (7)
- additional_info
- SC378624
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-09-23T02:32:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 26872
