Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 15, 2019, 08:49 AM

  • H 1410_H 1409 _08152019_020658.mp4

Date
08/15/2019
W/O
782286
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z01204
PipeID
P16281
Time
1:49 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6805
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
30
Purpose
Routine Assessment
Project
RFIR_WO_782286_TV22174_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
H 1410
Downstream MH
H 1409
Dir. of Survey
Downstream
Length Surveyed
108.1 ft.
Total Length
108.1 ft.
Structural Index
3
Structural Quick
3C2C
Structural Rating
100
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
101
Pipe schematic from manhole H 1410 to H 1409
MH: H 1410MH: H 1409downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 14100 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - 60% MAG COAT THROUGHOUT2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start32.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"56.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 8"104 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish104 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish107 ft. MGO - General Observation - PEELING AND FLAKING THROUHGOUT107 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - @ MH108.1 ft. AMH - Downstream Manhole, Survey Ends - H 1409108.1 ft. MGO - General Observation - CONN 9 O'CLOCK @ MH/ACTIVE

Observation photos (3)

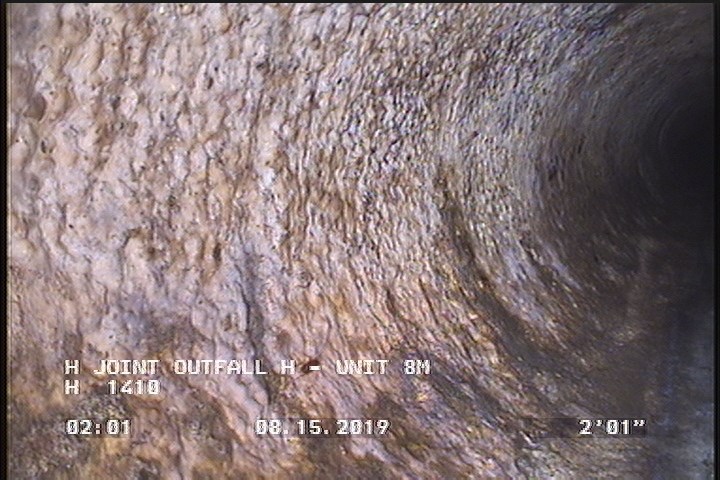

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

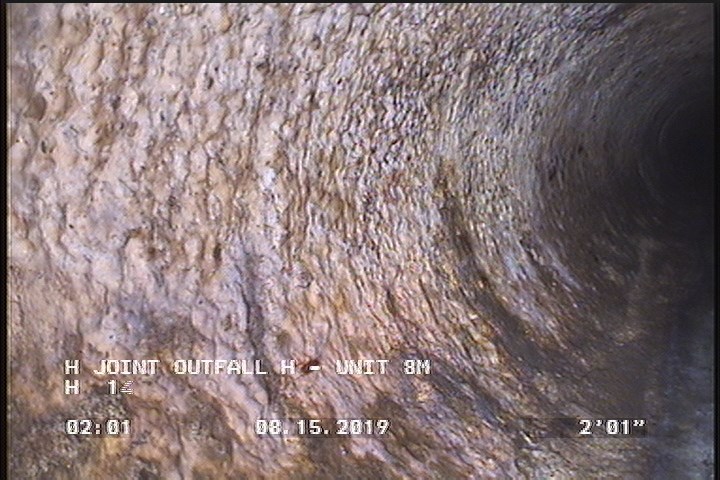

  • General Observation - 60% MAG COAT THROUGHOUT

    2 ft. - General Observation - 60% MAG COAT THROUGHOUT

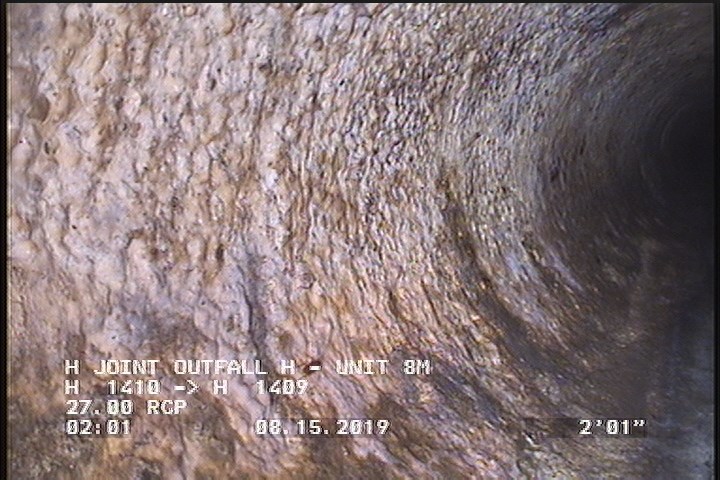

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16281Work order 782286

Observations (14)

DistanceCodeObservation
104SAP—
107MGOPEELING AND FLAKING THROUHGOUT
0MWM—
2SAP—
2MGO60% MAG COAT THROUGHOUT
108.1AMHH 1409
107VC@ MH
0AMHH 1410
32.1TFC—
56.7TFC—
2SSS—
108.1MGOCONN 9 O'CLOCK @ MH/ACTIVE
104SSS—
0MWL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-08-15T01:49:07-07:00
documentation
PRO PIPE
is_lateral_inspection
false
