Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 14, 2019, 08:52 AM

  • H 1391_H 1390 _08142019_021632.mp4

Date
08/14/2019
W/O
782286
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z01204
PipeID
P16265
Time
1:52 AM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6780
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_782286_TV22174_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 1391
Downstream MH
H 1390
Dir. of Survey
Downstream
Length Surveyed
249.1 ft.
Total Length
249.1 ft.
Structural Index
3
Structural Quick
3I2I
Structural Rating
245
O&M Index
2
O&M Quick
2I12
O&M Rating
100
Overall Index
2
Overall Quick
—
Overall Rating
345
Pipe schematic from manhole H 1391 to H 1390
MH: H 1391MH: H 1390downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13910 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. VC - Vermin Cockroach2 ft. MGO - General Observation - 75% MAG COAT THROUGHOUT2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start20.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4", 6"44.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"92.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"116.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"141.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"164.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"188.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"212.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"236.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"246.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish246.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish246.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish248 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - @ MH249.1 ft. MGO - General Observation - CONN 5 O'CLOCK @ MH/ACTIVE249.1 ft. AMH - Downstream Manhole, Survey Ends - H 1390

Observation photos (4)

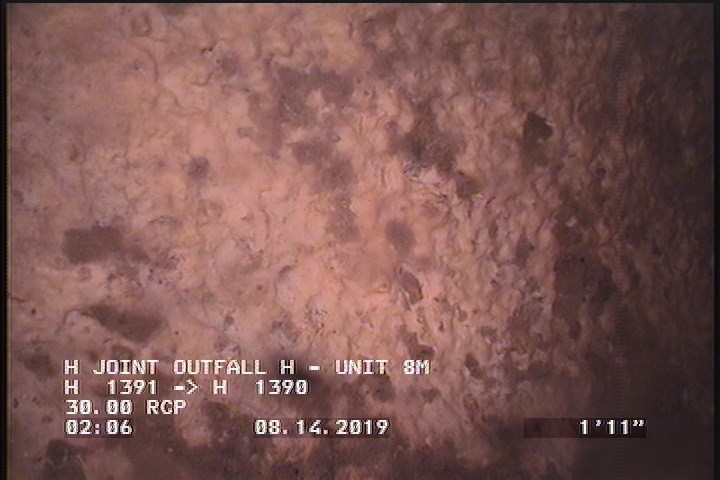

  • General Observation - 75% MAG COAT THROUGHOUT

    2 ft. - General Observation - 75% MAG COAT THROUGHOUT

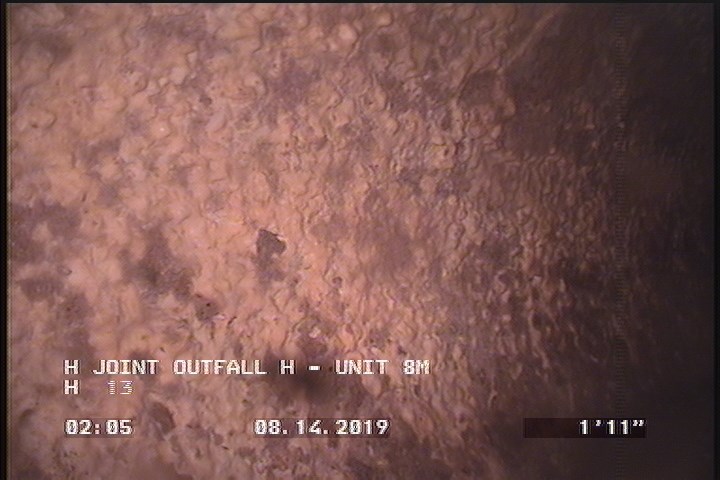

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

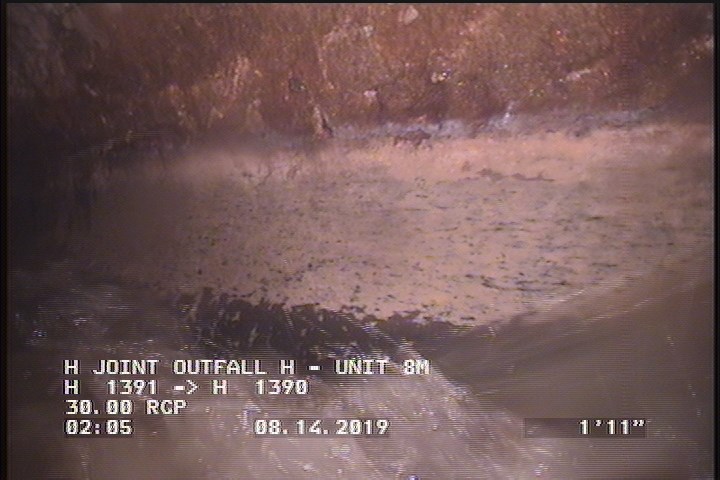

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

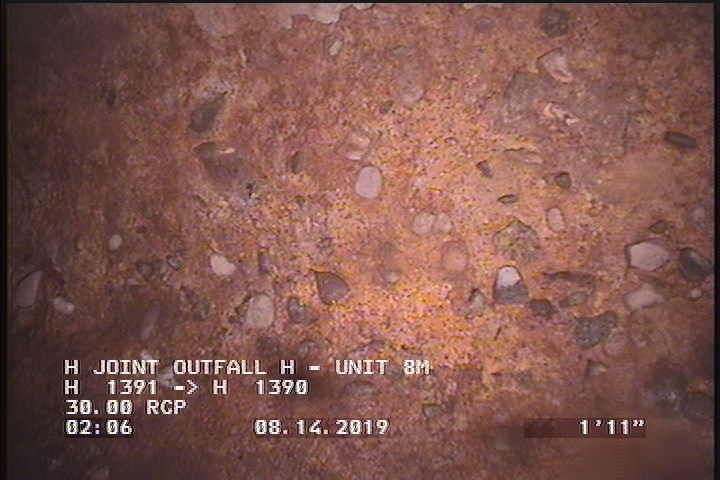

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16265Work order 782286

Observations (23)

DistanceCodeObservation
92.5TFC—
0MWL—
246.7SSS—
249.1MGOCONN 5 O'CLOCK @ MH/ACTIVE
20.8TFA—
246.7SAP—
0AMHH 1391
212.4TFC—
246.7DAGS—
164.7TFC—
236.9TFC—
2MGO75% MAG COAT THROUGHOUT
0MWM—
141.1TFC—
116.9TFC—
0VC—
44.7TFC—
188.8TFC—
2SAP—
249.1AMHH 1390
248VC@ MH
2DAGS—
2SSS—

Properties (6)

additional_info
SC378286
custom_field_two
3
customer
LACSD
datetime
2019-08-14T01:52:46-07:00
documentation
PRO PIPE
is_lateral_inspection
false
