Wastewater/Activity/PacpInspection/1.0Aug 14, 2019, 09:55 AM

  • H 1388_H 1482 _08142019_030739.mp4

Date
08/14/2019
W/O
782286
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z01204
PipeID
P16262
Time
2:55 AM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6780
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_782286_TV22174_AUG2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 1388
Downstream MH
H 1482
Dir. of Survey
Downstream
Length Surveyed
262.8 ft.
Total Length
262.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole H 1388 to H 1482
MH: H 1388MH: H 1482downstream0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13880 ft. MWL - Water Level, 30 %of cross sectional area2.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3 ft. MGO - General Observation - 75% MAG COAT THROUGHOUT5.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"37.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"59.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"84 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN108.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"132.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN180.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"204.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"228.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"261 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish261 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish261 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish262.8 ft. MGO - General Observation - CONN 9 O'CLOCK @ MH262.8 ft. AMH - Downstream Manhole, Survey Ends - H 1482

Observation photos (4)

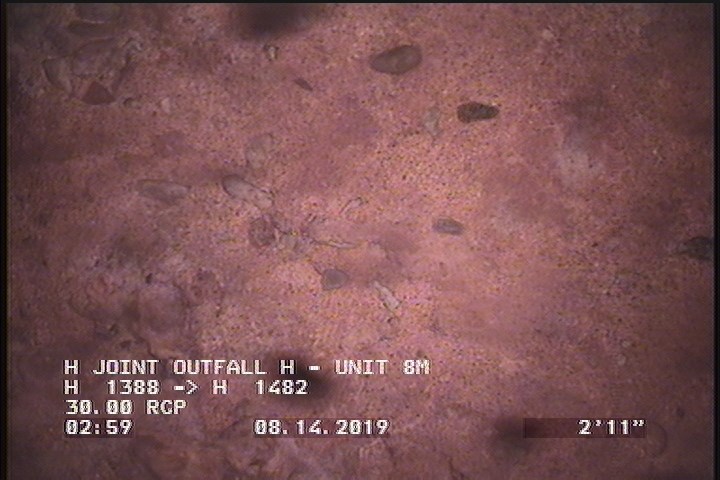

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

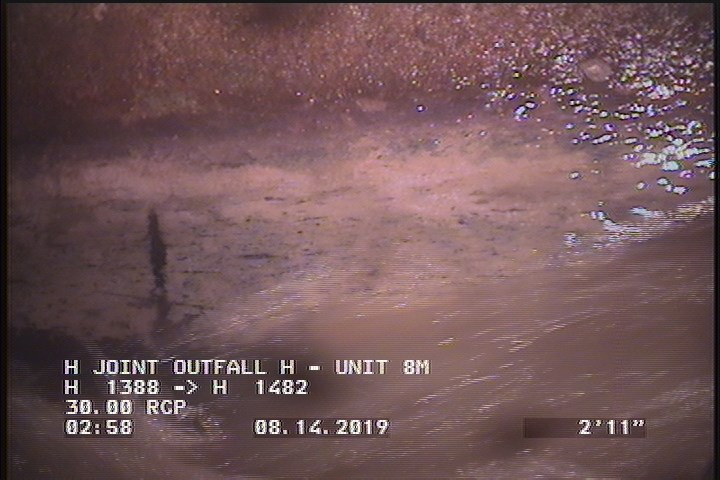

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

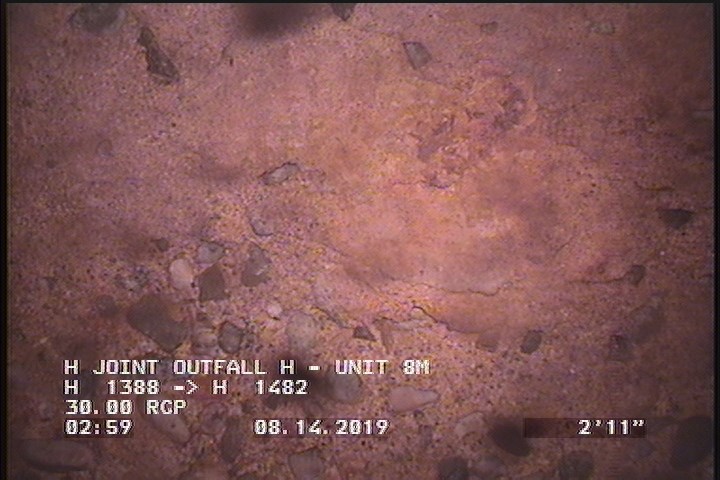

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

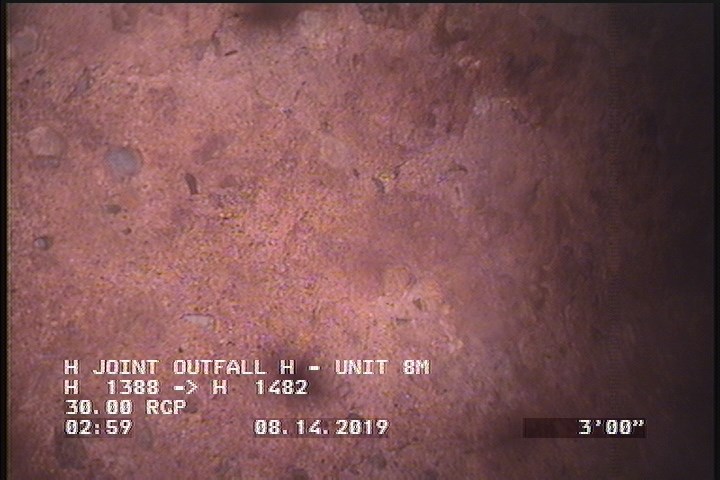

  • General Observation - 75% MAG COAT THROUGHOUT

    3 ft. - General Observation - 75% MAG COAT THROUGHOUT

All inspections of P16262Work order 782286

Observations (21)

DistanceCodeObservation
261SSS—
228.9TFA—
0MWM—
262.8MGOCONN 9 O'CLOCK @ MH
2.9SSS—
84TFOPEN
180.5TFC—
59.5TFC—
261SAP—
261DAGS—
5.5TFC—
108.4TFC—
262.8AMHH 1482
0AMHH 1388
3MGO75% MAG COAT THROUGHOUT
2.9DAGS—
132.6TFOPEN
204.5TFC—
0MWL—
37.1TFC—
2.9SAP—

Properties (6)

additional_info
SC378286
custom_field_two
3
customer
LACSD
datetime
2019-08-14T02:55:30-07:00
documentation
PRO PIPE
is_lateral_inspection
false
