Wastewater/Activity/PacpInspection/1.0Aug 23, 2019, 08:15 AM
05 0789_05 0788 _08232019_012555.mp4
- Date
- 08/23/2019
- W/O
- 782229
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00553
- PipeID
- P06020
- Time
- 1:15 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6811
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782229_TV05202_AUG2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0788
- Downstream MH
- 05 0789
- Dir. of Survey
- Upstream
- Length Surveyed
- 125.4 ft.
- Total Length
- 125.4 ft.
- Structural Index
- 4
- Structural Quick
- 4321
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

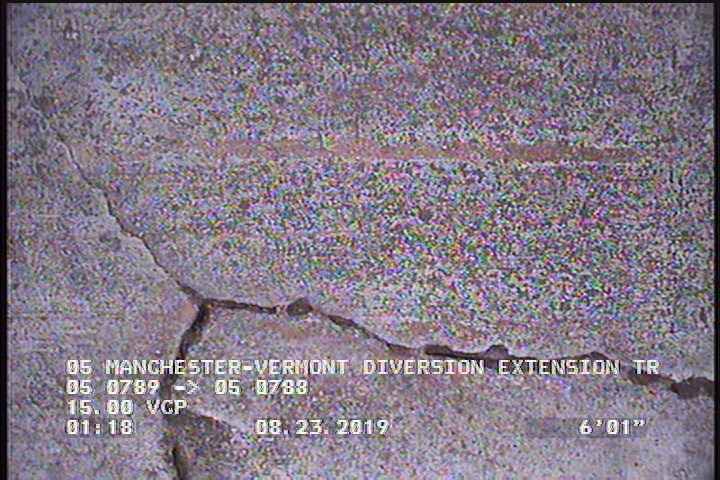

6.1 ft. - Fracture Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES
22.4 ft. - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES
25.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 6.1 | FM | — |
| 22.4 | FM | — |
| 0 | AMH | 05 0788 |
| 125.4 | MSA | UNABLE TO GET CLEAR VIDEO |
| 25.8 | FM | — |
| 125.4 | MGO | FLOW SPLASHING LENS |
| 125.4 | MWLS | — |
| 125.4 | FM | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-08-23T01:15:55-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
