Wastewater/Activity/PacpInspection/1.0Aug 23, 2019, 05:32 AM
05 0784_05 0783 _08222019_225024.mp4
- Date
- 08/22/2019
- W/O
- 782229
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00553
- PipeID
- P06012
- Time
- 10:32 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6811
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782229_TV05202_AUG2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0784
- Downstream MH
- 05 0783
- Dir. of Survey
- Downstream
- Length Surveyed
- 306 ft.
- Total Length
- 306 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

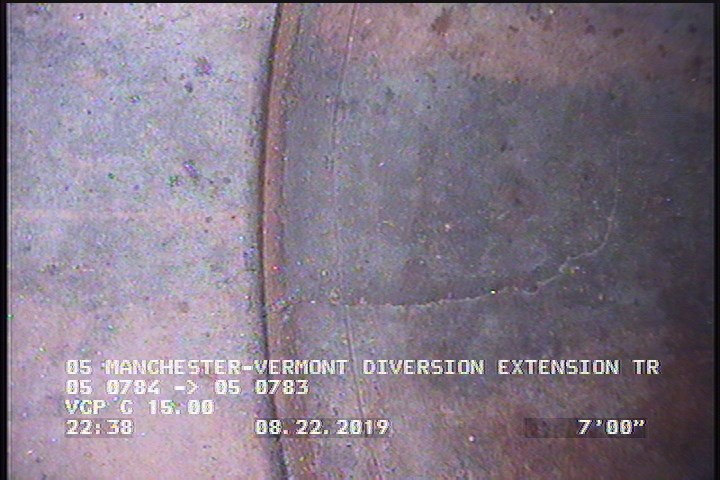

7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

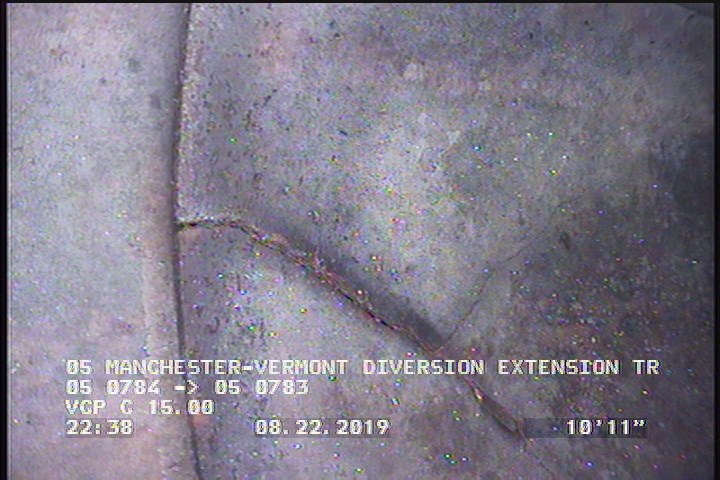

10.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 10.9 | FM | — |
| 7 | FM | — |
| 306 | AMH | 05 0783 |
| 0 | MWM | — |
| 301.2 | FM | — |
| 0 | AMH | 05 0784 |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-22T22:32:56-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
