Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 7, 2019, 08:51 AM

  • 22 0969_22 0968_08072019_021233.mp4

Date
08/07/2019
W/O
782130
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00790
PipeID
P17339
Time
1:51 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5954
Sewer Name
22 BASE LINE TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
12
Purpose
Routine Assessment
Project
RFIR_WO_782130_TV22002_AUG2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0968
Downstream MH
22 0969
Dir. of Survey
Upstream
Length Surveyed
266.6 ft.
Total Length
266.6 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
156
O&M Index
2
O&M Quick
2J00
O&M Rating
106
Overall Index
3
Overall Quick
—
Overall Rating
262
Pipe schematic from manhole 22 0968 to 22 0969
MH: 22 0968MH: 22 0969upstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 22 09690.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish3.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish103.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"228.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"263.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start263.4 ft. MGO - General Observation - MAG COAT THROUGHOUT263.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start266.6 ft. AMH - Downstream Manhole, Survey Begins - 22 0968266.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK266.6 ft. MWL - Water Level, 20 %of cross sectional area266.6 ft. MWM - Water Mark, 40 %of cross sectional area

Observation photos (7)

  • General Observation - CONNECTION AT MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK

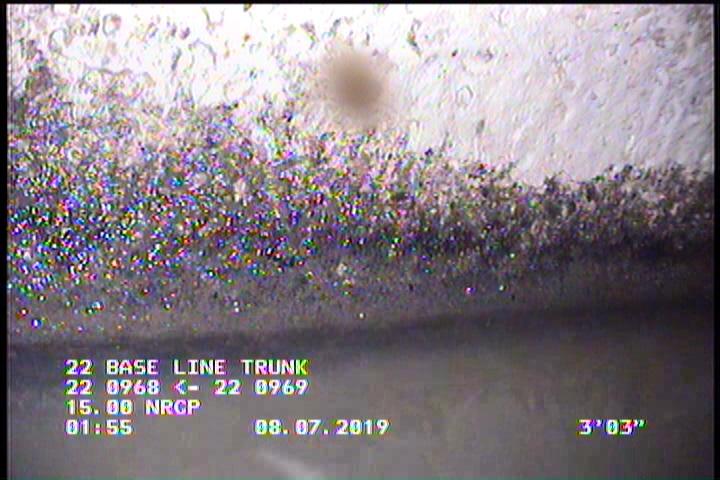

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Observation - MAG COAT THROUGHOUT

    3.2 ft. - General Observation - MAG COAT THROUGHOUT

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    38.4 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    163 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • General Observation - CONNECTION AT MH 3 O'CLOCK

    266.6 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK

All inspections of P17339Work order 782130

Observations (13)

DistanceCodeObservation
263.5SAV—
0AMH22 0968
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
266.6MGOCONNECTION AT MH 3 O'CLOCK
38.4TFC—
266.6AMH22 0969
3DAGS—
266DAGS—
0MWM—
3.2SAV—
163TF—
3.2MGOMAG COAT THROUGHOUT

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-08-07T01:51:18-07:00
documentation
PRO PIPE
is_lateral_inspection
false
