Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 7, 2019, 08:32 AM

  • 22 0968_22 0967_08072019_015101.mp4

Date
08/07/2019
W/O
782130
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00790
PipeID
P17338
Time
1:32 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5954
Sewer Name
22 BASE LINE TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
12
Purpose
Routine Assessment
Project
RFIR_WO_782130_TV22002_AUG2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0967
Downstream MH
22 0968
Dir. of Survey
Upstream
Length Surveyed
268.8 ft.
Total Length
268.8 ft.
Structural Index
3
Structural Quick
3T2J
Structural Rating
415
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
416
Pipe schematic from manhole 22 0967 to 22 0968
MH: 22 0967MH: 22 0968upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 09680 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0.8 ft. SRP - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish55.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"230.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"239.8 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - COCKROACHWS IN LINE249.7 ft. SRP - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start266.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start266.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start266.8 ft. MGO - General Observation - MAG COAT THROUGHOUT268.8 ft. AMH - Downstream Manhole, Survey Begins - 22 0967268.8 ft. MWM - Water Mark, 40 %of cross sectional area268.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK268.8 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (9)

  • General Observation - CONNECTION AT MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

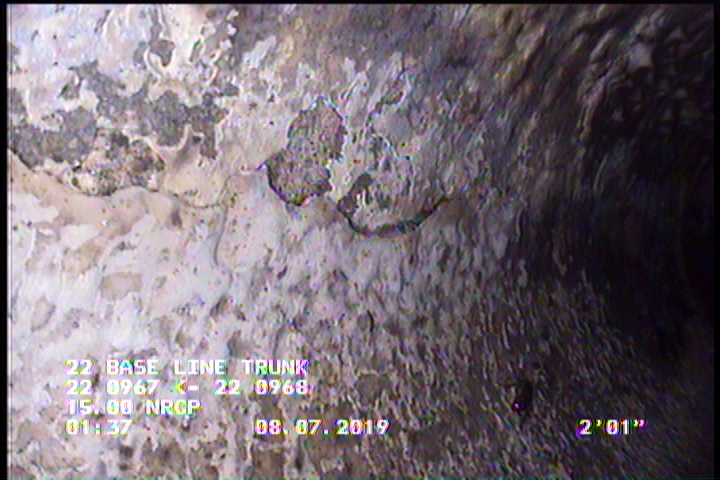

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Observation - MAG COAT THROUGHOUT

    2 ft. - General Observation - MAG COAT THROUGHOUT

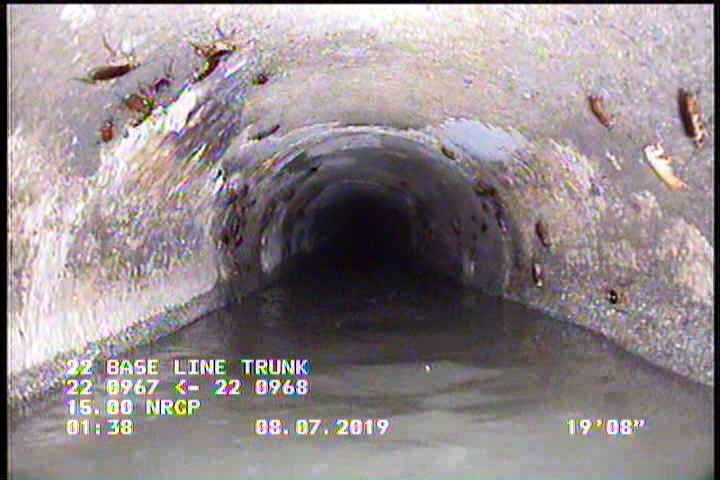

  • Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    19.1 ft. - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

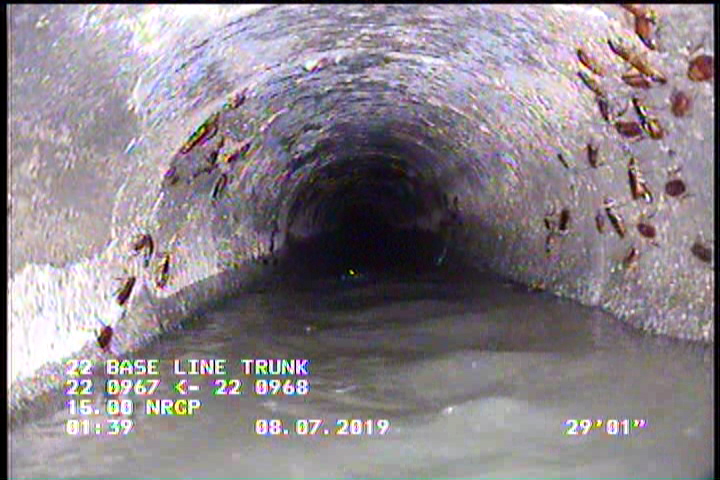

  • Vermin Cockroach, within 8 inches of joint: YES - COCKROACHWS IN LINE

    29 ft. - Vermin Cockroach, within 8 inches of joint: YES - COCKROACHWS IN LINE

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    38.6 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    213.4 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • General Observation - CONNECTION AT MH 3 O'CLOCK

    268.8 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK

All inspections of P17338Work order 782130

Observations (16)

DistanceCodeObservation
268SRP—
0AMH22 0967
0MWM—
29VCCOCKROACHWS IN LINE
268.8AMH22 0968
268.8MGOCONNECTION AT MH 3 O'CLOCK
19.1SRP—
38.6TF—
0MGOCONNECTION AT MH 3 O'CLOCK
2SAV—
2SSS—
268SSS—
2MGOMAG COAT THROUGHOUT
265.7SAV—
213.4TFC—
0MWL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-08-07T01:32:38-07:00
documentation
PRO PIPE
is_lateral_inspection
false
