22 0959_22 0958_08082019_024657.mp4
- Date
- 08/08/2019
- W/O
- 782130
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00790
- PipeID
- P17329
- Time
- 2:12 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5955
- Sewer Name
- 22 BASE LINE TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782130_TV22002_AUG2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0959
- Downstream MH
- 22 0958
- Dir. of Survey
- Downstream
- Length Surveyed
- 442.8 ft.
- Total Length
- 442.8 ft.
- Structural Index
- 2
- Structural Quick
- 3Q2O
- Structural Rating
- 509
- O&M Index
- 2
- O&M Quick
- 2Q11
- O&M Rating
- 177
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 686
Observation photos (24)

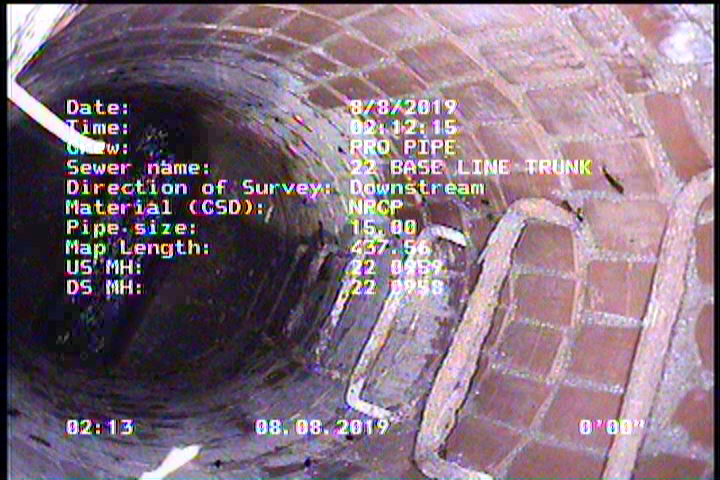

0 ft. - Upstream Manhole, Survey Begins - 22 0959
2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2 ft. - General Observation - MAG COAT THROUGHOUT

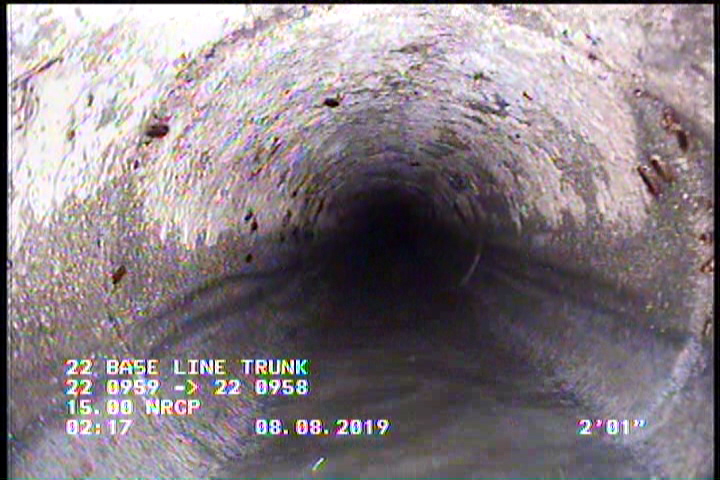

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
25.1 ft. - Vermin Cockroach, within 8 inches of joint: YES - COCKROACHES IN ILINE

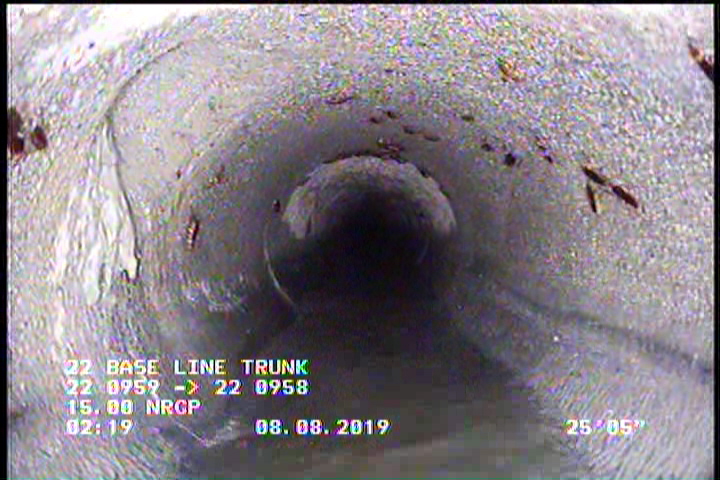

25.1 ft. - Surface Roughness Increased, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
27.9 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"

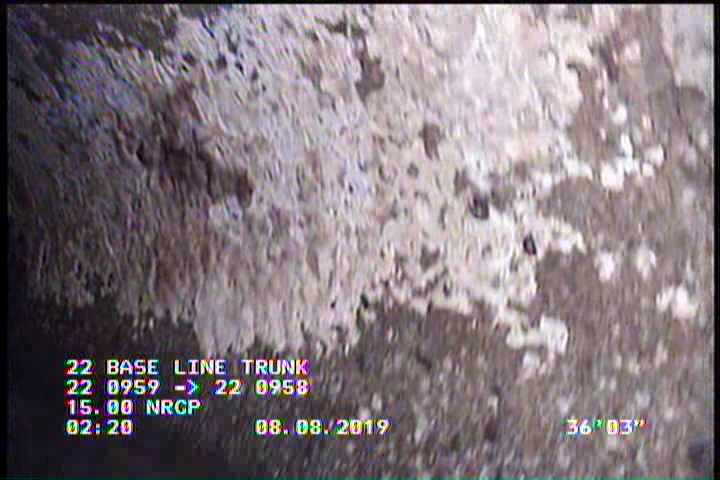

36 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
36.3 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

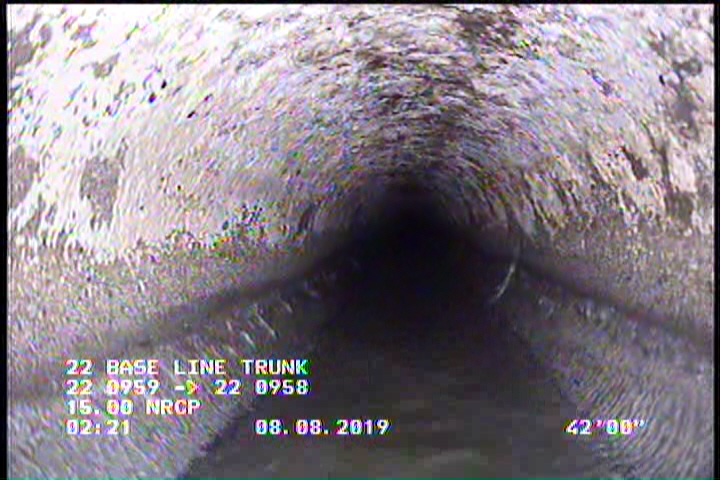

42 ft. - General Observation - MAG COAT THROUGHOUT
80.9 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"
129.5 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"
181.9 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"
186.2 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"
230.6 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"
234.5 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"
271.5 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"
275.4 ft. - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"
327.8 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"
348.8 ft. - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"
385.4 ft. - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"
389.1 ft. - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"
429.7 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"
434.6 ft. - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"
Observations (31)
| Distance | Code | Observation |
|---|---|---|
| 275.4 | TFC | — |
| 0 | AMH | 22 0959 |
| 429.7 | TFC | — |
| 385.4 | TB | — |
| 186.2 | TFC | — |
| 36 | SSS | — |
| 42 | MGO | MAG COAT THROUGHOUT |
| 434.6 | TFC | — |
| 442 | DAGS | — |
| 0 | MWM | — |
| 327.8 | TFC | — |
| 389.1 | TFC | — |
| 442 | SRI | — |
| 181.9 | TFC | — |
| 442.8 | AMH | 22 0958 |
| 129.5 | TFC | — |
| 80.9 | TF | — |
| 36.3 | TFC | — |
| 271.5 | TFC | — |
| 2 | SAV | — |
| 234.5 | TFC | — |
| 230.6 | TFC | — |
| 0 | MWL | — |
| 25.1 | VC | COCKROACHES IN ILINE |
| 440.6 | SAV | — |
| 25.1 | SRI | — |
| 27.9 | TF | — |
| 2 | MGO | MAG COAT THROUGHOUT |
| 348.8 | TB | — |
| 2 | DAGS | — |
| 442 | SSS | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-08T02:12:15-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
