Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 8, 2019, 09:47 AM

  • 22 0958_22 0957_08082019_031839.mp4

Date
08/08/2019
W/O
782130
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00790
PipeID
P17328
Time
2:47 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5955
Sewer Name
22 BASE LINE TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
12
Purpose
Routine Assessment
Project
RFIR_WO_782130_TV22002_AUG2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0958
Downstream MH
22 0957
Dir. of Survey
Downstream
Length Surveyed
443.5 ft.
Total Length
443.5 ft.
Structural Index
2
Structural Quick
3Q1P
Structural Rating
350
O&M Index
2
O&M Quick
2T11
O&M Rating
207
Overall Index
2
Overall Quick
—
Overall Rating
557
Pipe schematic from manhole 22 0958 to 22 0957
MH: 22 0958MH: 22 0957downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 09580 ft. MWL - Water Level, 10 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. MWM - Water Mark, 40 %of cross sectional area2.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start12 ft. SRI - Surface Roughness Increased, from 07 to 05 o'clock, within 8 inches of joint: YES, Start23.1 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - COCKROACHES IN LINE39.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"91.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"100.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"140.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"189.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"237.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6", 6"242.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"290.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"327.6 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"339 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"356.3 ft. LR - Alignment Right, 15 %, Start432.8 ft. LR - Alignment Right, 15 %, Finish442 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish442 ft. SRI - Surface Roughness Increased, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish442.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish443.5 ft. AMH - Downstream Manhole, Survey Ends - 22 0957

Observation photos (16)

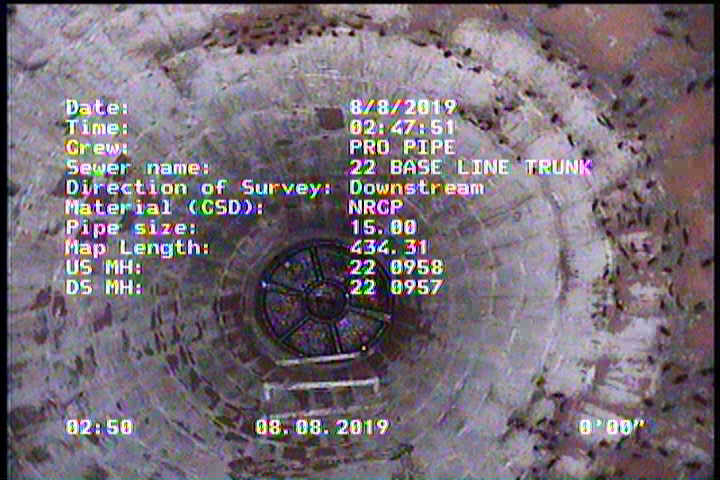

  • Water Level, 10 %of cross sectional area

    0 ft. - Water Level, 10 %of cross sectional area

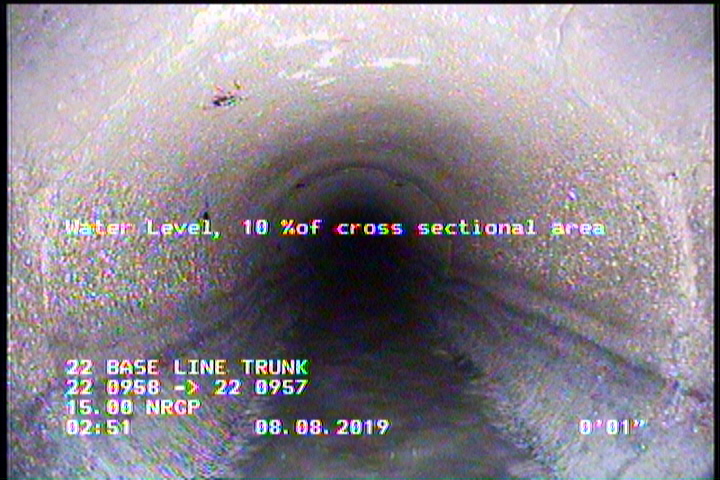

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

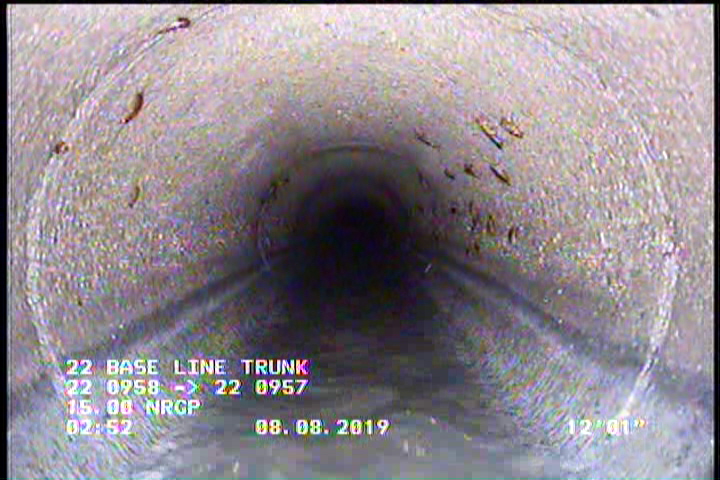

  • Surface Roughness Increased, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    12 ft. - Surface Roughness Increased, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

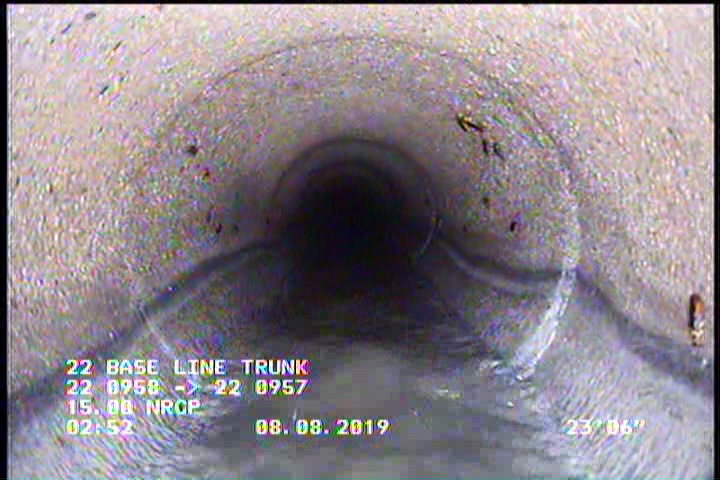

  • Vermin Cockroach, within 8 inches of joint: YES - COCKROACHES IN LINE

    23.1 ft. - Vermin Cockroach, within 8 inches of joint: YES - COCKROACHES IN LINE

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    39.1 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    91.5 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"

    100.3 ft. - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    140.1 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    189.3 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6", 6"

    237.1 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6", 6"

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    242.1 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    290.4 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    327.6 ft. - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    339 ft. - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"

  • Alignment Right, 15 %, Start

    356.3 ft. - Alignment Right, 15 %, Start

All inspections of P17328Work order 782130

Observations (23)

DistanceCodeObservation
339TFC—
91.5TFC—
0AMH22 0958
100.3TFC—
327.6TF—
442DAGS—
290.4TFC—
442.1SAV—
140.1TFC—
0MWL—
242.1TFC—
443.5AMH22 0957
432.8LR—
237.1TFC—
0DAGS—
12SRI—
442SRI—
2.3SAV—
0MWM—
23.1VCCOCKROACHES IN LINE
356.3LR—
39.1TFC—
189.3TFC—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-08-08T02:47:51-07:00
documentation
PRO PIPE
is_lateral_inspection
false
