Wastewater/Activity/PacpInspection/1.0Aug 12, 2019, 08:46 AM
H 0746A_H 0746_12082019_015351.mp4
- Date
- 08/12/2019
- W/O
- 776981
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11156
- Time
- 1:46 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6857
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776981_TV22077_JUL2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- H 0746A
- Downstream MH
- H 0746
- Dir. of Survey
- Downstream
- Length Surveyed
- 100.4 ft.
- Total Length
- 100.4 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 54
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 38
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 92
Observation photos (2)

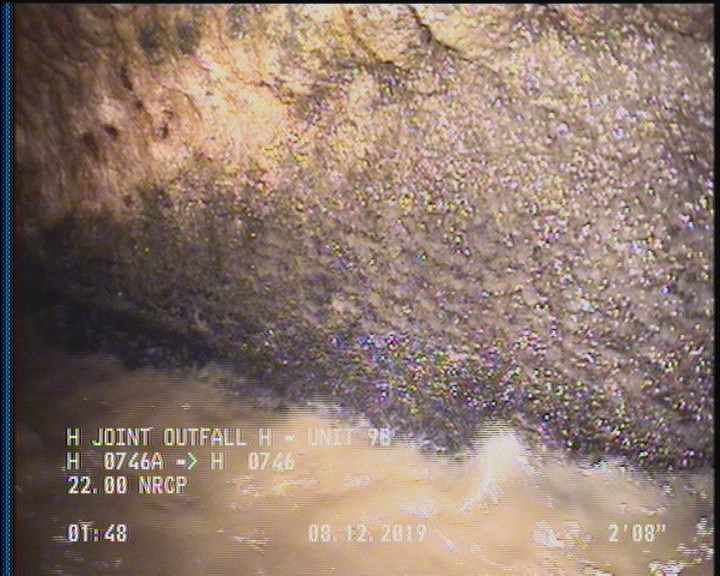

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

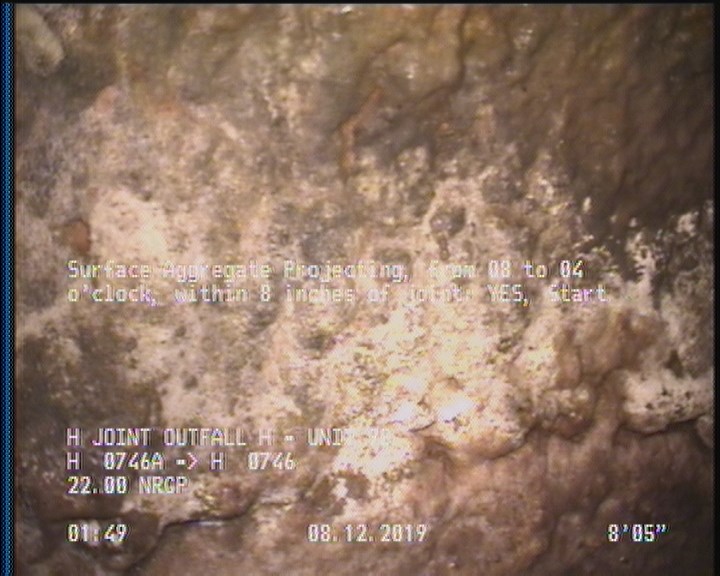

8.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 98 | DAGS | — |
| 8.4 | SAP | — |
| 0 | MWL | — |
| 0 | AMH | H 0746A |
| 98 | SAP | — |
| 2 | DAGS | — |
| 8.4 | MGO | MAG COATING THROUGHOUT 40% |
| 100.4 | AMH | H 0746, RUN LIST STATES MH AT 116'. |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC378326
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-12T01:46:42-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
