Wastewater/Activity/PacpInspection/1.0Aug 1, 2019, 06:37 AM
H 0890_H 0740_01082019_000200.mp4
- Date
- 07/31/2019
- W/O
- 776981
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11150
- Time
- 11:37 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6652
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776981_TV22077_JUL2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0890
- Downstream MH
- H 0740
- Dir. of Survey
- Downstream
- Length Surveyed
- 674.4 ft.
- Total Length
- 674.4 ft.
- Structural Index
- 2
- Structural Quick
- 3Y2Y
- Structural Rating
- 646
- O&M Index
- 2
- O&M Quick
- 2n00
- O&M Rating
- 470
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 1116
Observation photos (4)

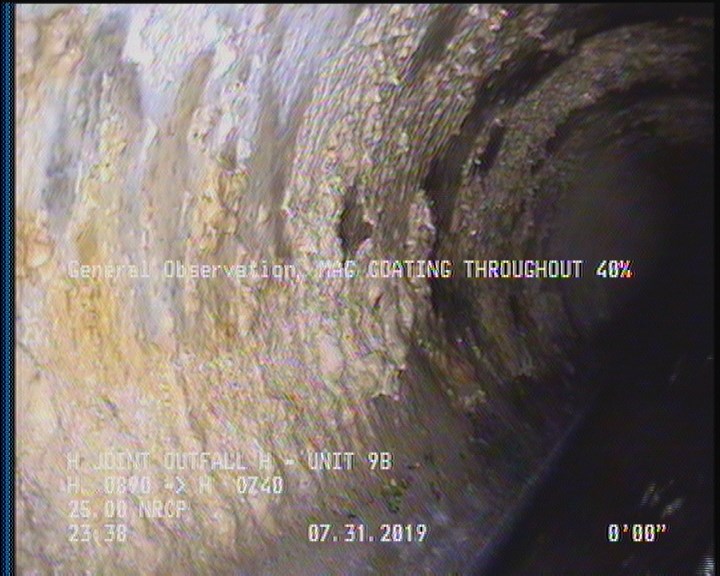

2 ft. - General Observation - MAG COATING THROUGHOUT 40%

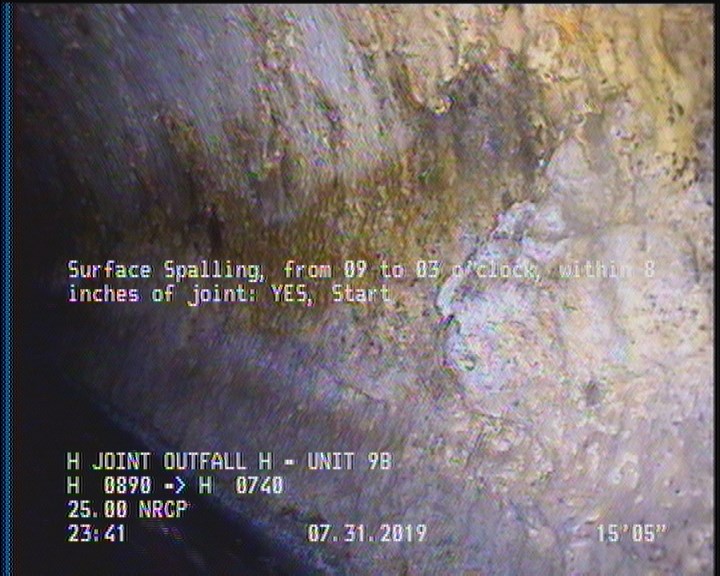

15.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

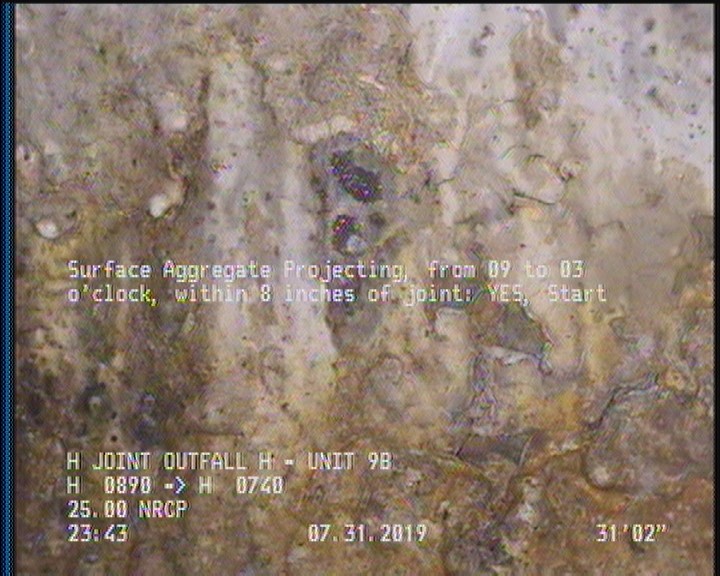

31.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

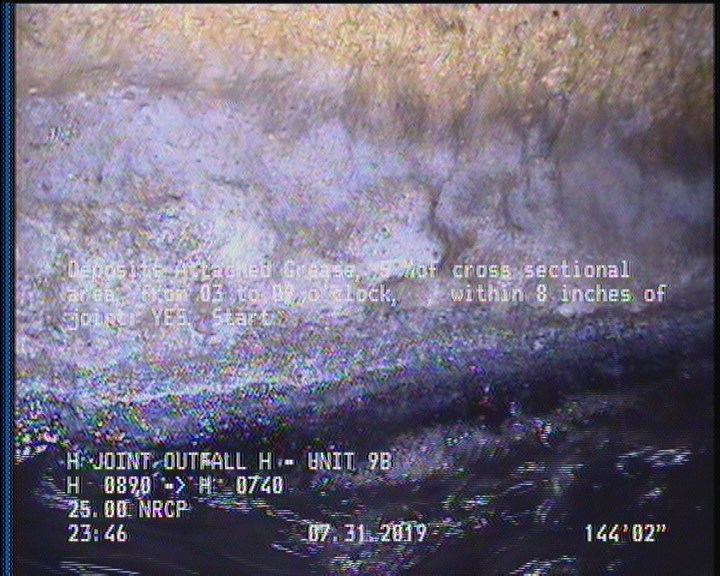

142.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 672.3 | DAGS | — |
| 672.3 | SAP | — |
| 672.3 | SSS | — |
| 31.2 | SAP | — |
| 674.4 | AMH | H 0740 |
| 672.3 | DSZ | — |
| 2 | MGO | MAG COATING THROUGHOUT 40% |
| 15.4 | SSS | — |
| 0 | AMH | H 0890 |
| 0 | MWM | — |
| 142.7 | DAGS | — |
| 25.2 | DSZ | DEBRIS |
Properties (6)
- additional_info
- SC378320
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-07-31T23:37:01-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
