Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2019, 09:53 AM

  • H 0739_H 0738 _01082019_031845.mp4

Date
08/01/2019
W/O
776981
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00941
PipeID
P11148
Time
2:53 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6652
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
LA PUENTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
30
Purpose
Routine Assessment
Project
RFIR_WO_776981_TV22077_JUL2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
25 in.
Width
25 in.
Upstream MH
H 0739
Downstream MH
H 0738
Dir. of Survey
Downstream
Length Surveyed
727.2 ft.
Total Length
727.2 ft.
Structural Index
3
Structural Quick
3\2\
Structural Rating
725
O&M Index
2
O&M Quick
2Z00
O&M Rating
270
Overall Index
2
Overall Quick
—
Overall Rating
995
Pipe schematic from manhole H 0739 to H 0738
MH: H 0739MH: H 0738downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 07390 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start49.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS726 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish726 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish726 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish727.2 ft. AMH - Downstream Manhole, Survey Ends - H 0738

Observation photos (2)

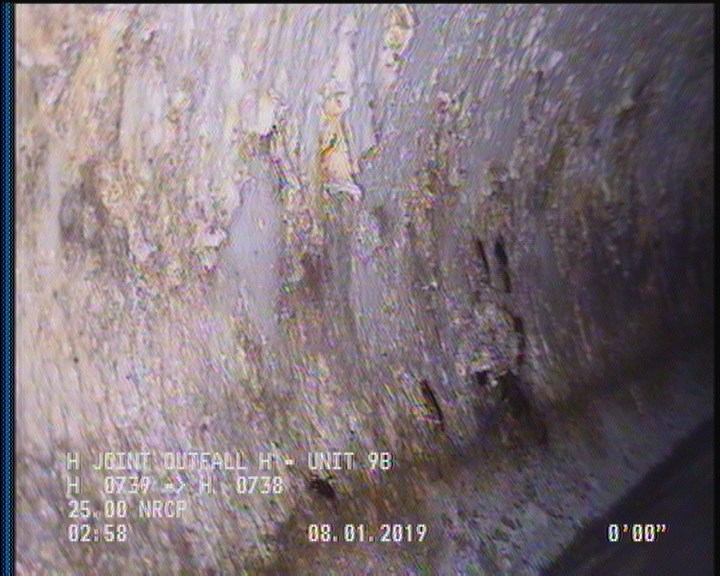

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

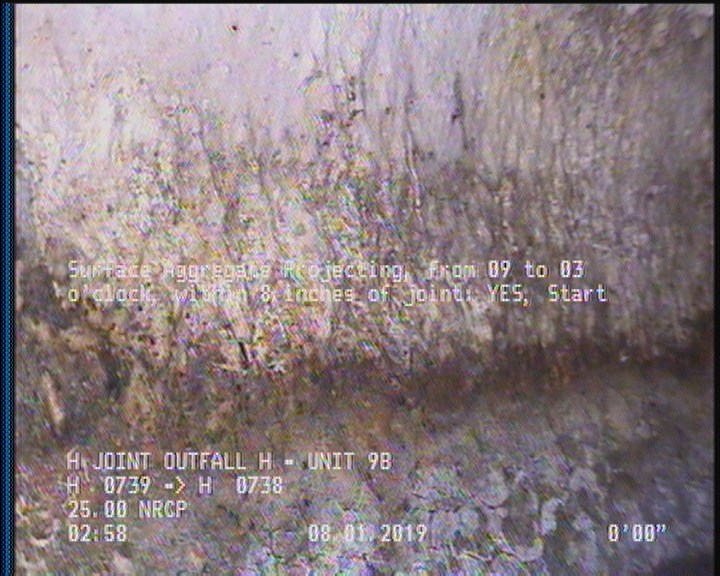

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P11148Work order 776981

Observations (10)

DistanceCodeObservation
726SAP—
2SSS—
0MWL—
49.1DSZDEBRIS
0AMHH 0739
726DSZ—
726SSS—
727.2AMHH 0738
0MWM—
2SAP—

Properties (6)

additional_info
SC378320
custom_field_two
2
customer
LACSD
datetime
2019-08-01T02:53:59-07:00
documentation
PRO PIPE
is_lateral_inspection
false
