Wastewater/Activity/PacpInspection/1.0Aug 6, 2019, 05:11 AM
H 0735_H 0734 _05082019_223801.mp4
- Date
- 08/05/2019
- W/O
- 776981
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11144
- Time
- 10:11 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6654
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776981_TV22077_JUL2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0735
- Downstream MH
- H 0734
- Dir. of Survey
- Downstream
- Length Surveyed
- 752 ft.
- Total Length
- 752 ft.
- Structural Index
- 3
- Structural Quick
- 3]2]
- Structural Rating
- 750
- O&M Index
- 2
- O&M Quick
- 2]00
- O&M Rating
- 300
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 1050
Observation photos (3)

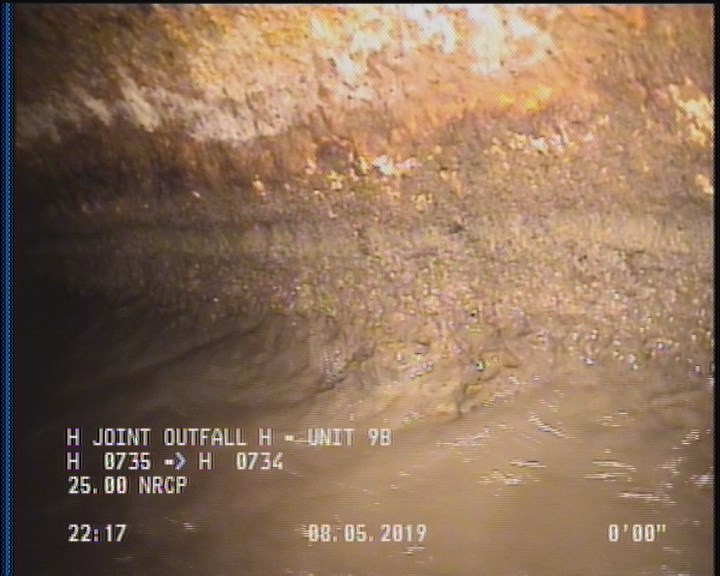

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

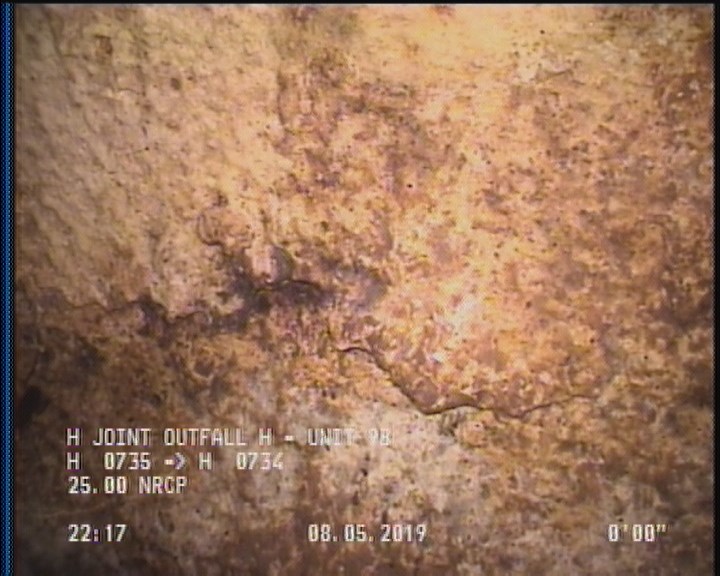

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

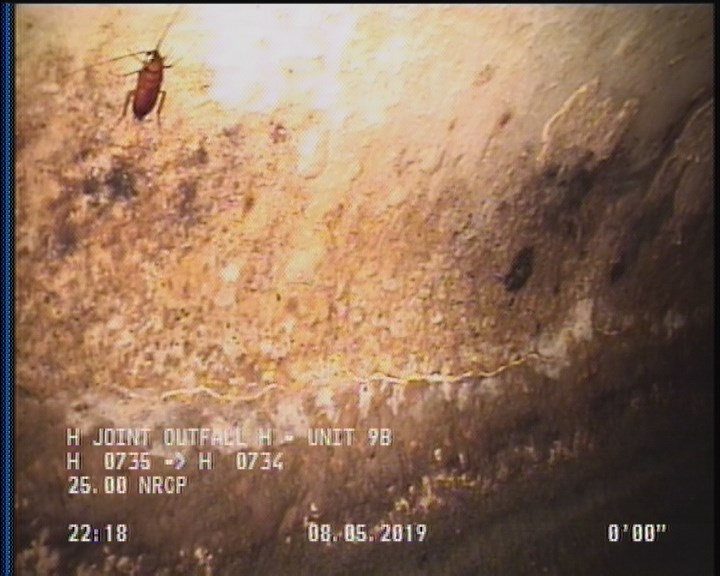

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 0735 |
| 751.7 | SAP | — |
| 751.7 | SSS | — |
| 416.7 | MGO | MAG COATING THROUGHOUT 40% |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SSS | — |
| 751.7 | DAGS | — |
| 752 | AMH | H 0734 |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC378322
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-05T22:11:19-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
