Wastewater/Activity/PacpInspection/1.0Aug 8, 2019, 09:06 AM
H 0721_H 0720 _08082019_022329.mp4
- Date
- 08/08/2019
- W/O
- 776981
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11130
- Time
- 2:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6855
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776981_TV22077_JUL2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0721
- Downstream MH
- H 0720
- Dir. of Survey
- Downstream
- Length Surveyed
- 546.5 ft.
- Total Length
- 546.5 ft.
- Structural Index
- 3
- Structural Quick
- 3U2U
- Structural Rating
- 540
- O&M Index
- 3
- O&M Quick
- 4B3O
- O&M Rating
- 514
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 1054
Observation photos (3)

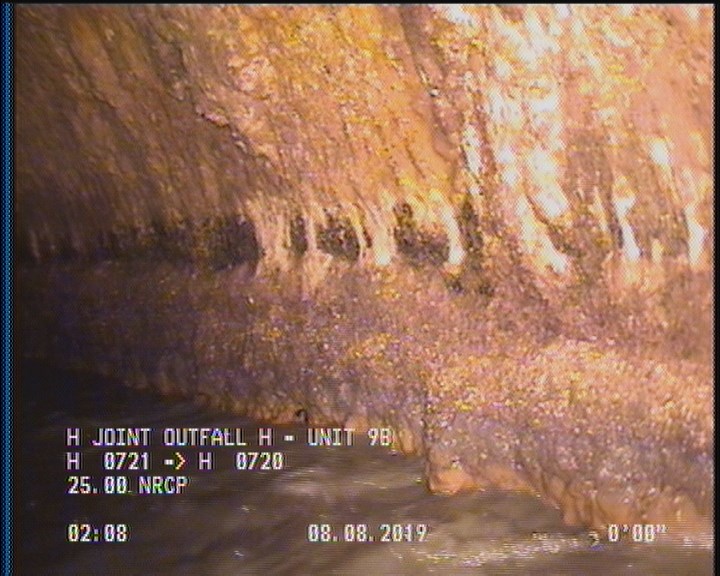

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

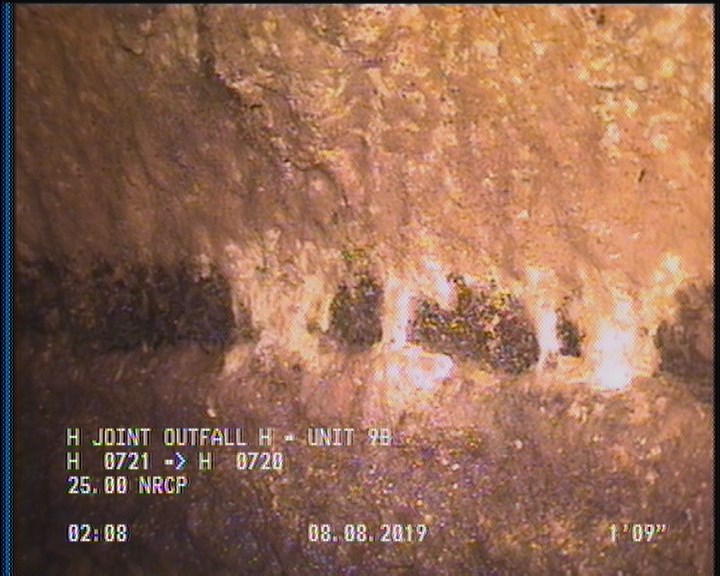

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

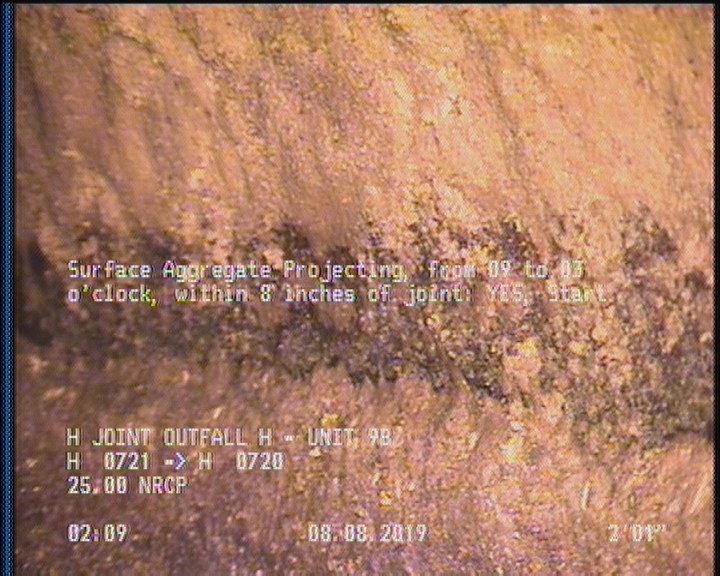

2.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 546.5 | AMH | H 0720, RUN LIST STATES MH AT 534'. |
| 0 | AMH | H 0721 |
| 544.2 | SAP | — |
| 444 | LL | — |
| 544.2 | DSZ | — |
| 523 | LL | — |
| 2.1 | MGO | MAG COATING THROUGHOUT 50% |
| 0 | MWL | — |
| 2.1 | SAP | — |
| 544.2 | SSS | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 544.2 | DAGS | — |
| 153.4 | DSZ | DEBRIS |
Properties (6)
- additional_info
- SC378324
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-08T02:06:37-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
