Wastewater/Activity/PacpInspection/1.0Aug 15, 2019, 03:48 PM
H 0718A_H 0718_15082019_090719.mp4
- Date
- 08/15/2019
- W/O
- 766981
- Weather
- Dry
- Operator/Surveyor
- J. VARGAS
- Sewer ID
- Z00941
- PipeID
- P11128
- Time
- 8:48 AM
- Certificate
- U-209-8149
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6781
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776981_TV22077_JUL2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0718A
- Downstream MH
- H 0718
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.4 ft.
- Total Length
- 400.4 ft.
- Structural Index
- 3
- Structural Quick
- 3O2O
- Structural Rating
- 395
- O&M Index
- 2
- O&M Quick
- 4B2P
- O&M Rating
- 225
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 620
Observation photos (4)

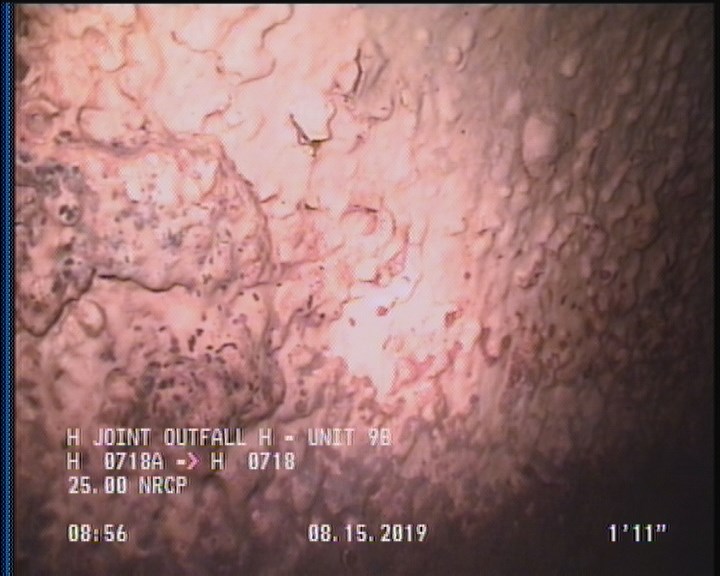

1.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

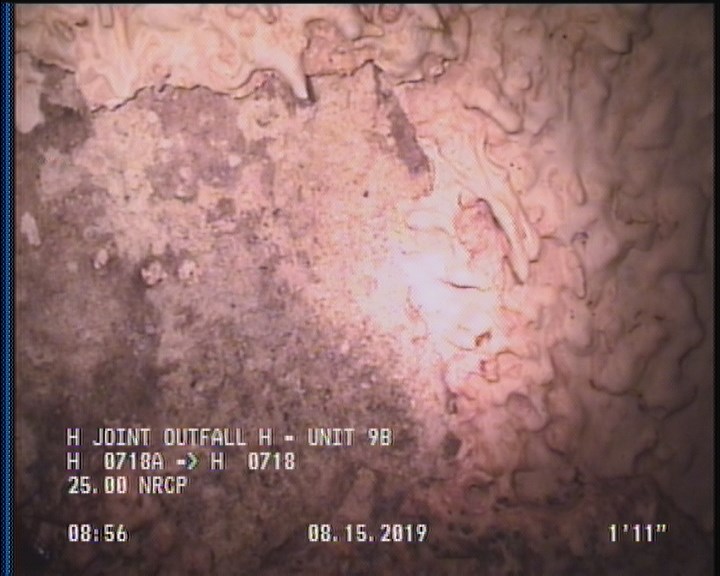

1.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

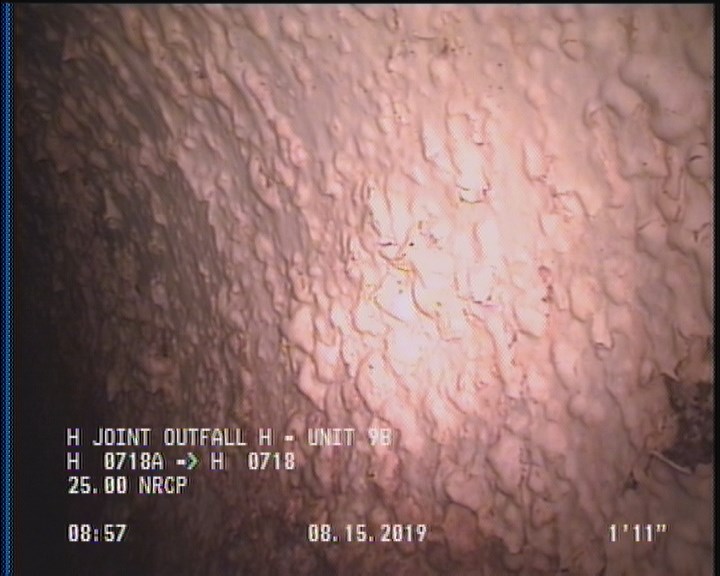

1.9 ft. - General Observation - 80% MAGNEZIUM H.O COATING THROUGHOUT

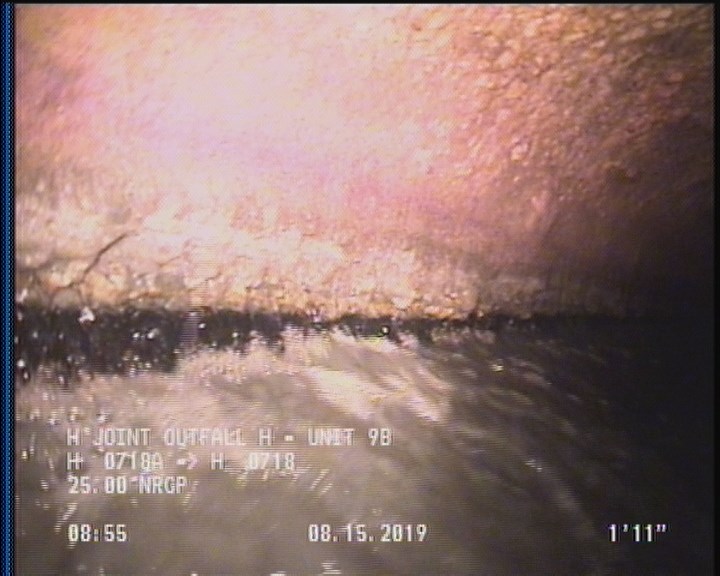

1.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 1.9 | SAP | — |
| 1.9 | SSS | — |
| 398.7 | SSS | — |
| 388 | LL | — |
| 1.9 | MGO | 80% MAGNEZIUM H.O COATING THROUGHOUT |
| 0 | MWM | — |
| 398.7 | SAP | — |
| 400.4 | AMH | H 0718 |
| 0 | AMH | H 0718A |
| 0 | MWL | — |
| 398.7 | DAGS | — |
| 1.9 | VC | — |
| 316 | LL | — |
| 1.9 | DAGS | — |
| 85 | LR | — |
| 60 | LR | — |
Properties (6)
- additional_info
- SC378287
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-15T08:48:46-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
