Wastewater/Activity/PacpInspection/1.0Sep 12, 2019, 03:11 PM
15 0001_H 0717_12092019_083310.mp4
- Date
- 09/12/2019
- W/O
- 776981
- Weather
- Dry
- Operator/Surveyor
- J. VARGAS
- Sewer ID
- Z00941
- PipeID
- P11126
- Time
- 8:11 AM
- Certificate
- U-209-8149
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6958
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776981_TV22077_JUL2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- 15 0001
- Downstream MH
- H 0717
- Dir. of Survey
- Downstream
- Length Surveyed
- 295.8 ft.
- Total Length
- 295.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

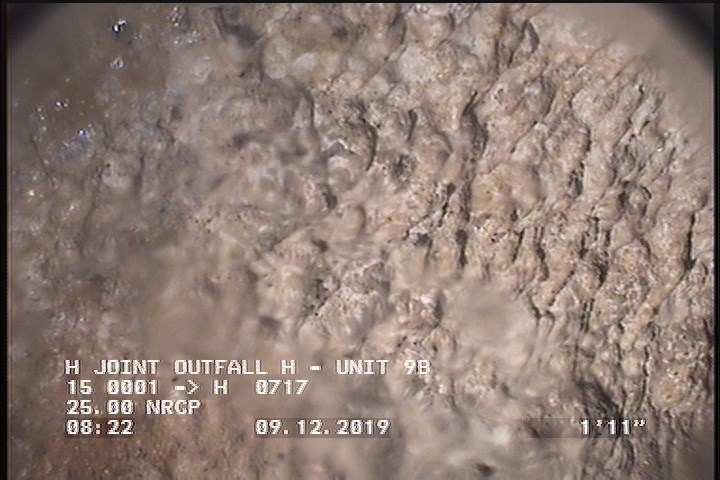

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

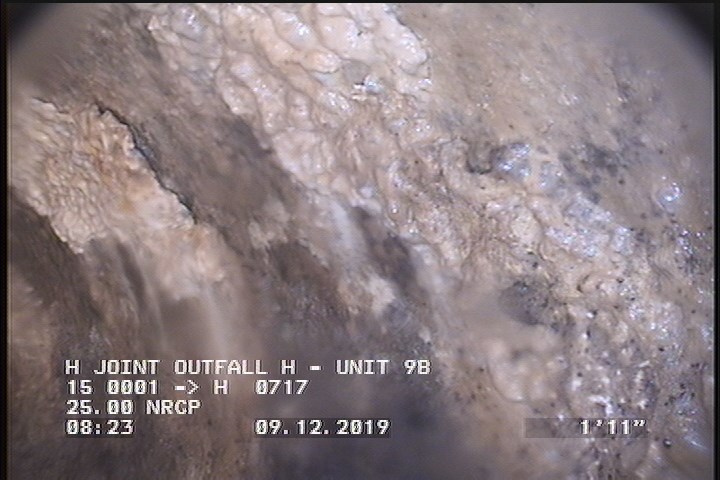

2 ft. - General Observation - 75% MAG COAT THROUGHOUT

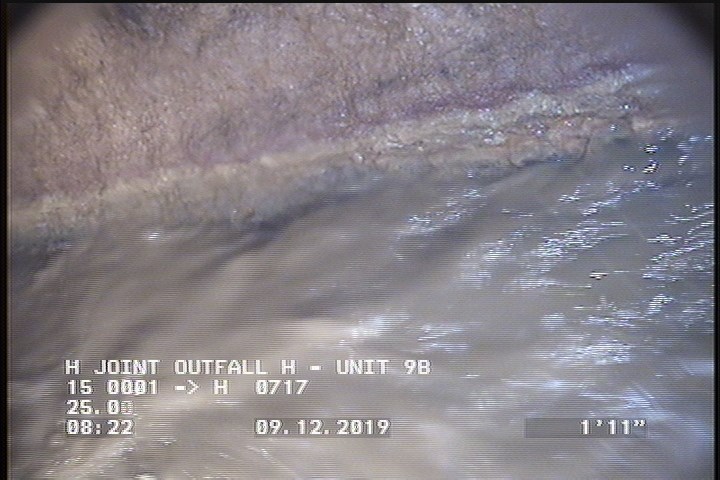

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 15 0001 |
| 0 | MWL | — |
| 2 | SAP | — |
| 295.8 | SAP | — |
| 0 | MWM | — |
| 2 | MGO | 75% MAG COAT THROUGHOUT |
| 0 | MGO | UNKNOWN CONNECTIONS AT BOTH 7 AND 9 O'CLOCK IN MH |
| 2 | DAGS | — |
| 295.8 | AMH | H 0717 |
| 295.8 | DAGS | — |
Properties (6)
- additional_info
- SC378566
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-09-12T08:11:07-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
