Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 19, 2019, 06:23 PM

  • F 0078_F 0077 _19082019_120350.mp4

Date
08/19/2019
W/O
771934
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z00043
PipeID
P10282
Time
11:23 AM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6785
Sewer Name
F JOINT OUTFALL F - UNIT 7A
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
RFIR_WO_771934_TV02203_JUN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Width
60 in.
Upstream MH
F 0078
Downstream MH
F 0077
Dir. of Survey
Downstream
Length Surveyed
93.1 ft.
Total Length
93.1 ft.
Structural Index
4
Structural Quick
5C3C
Structural Rating
144
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole F 0078 to F 0077
MH: F 0078MH: F 0077downstream0 ft. MWL - Water Level, 55 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 00782 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SRVM - Surface Reinforcement Visible Mechanical, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COAT THROUGHOUT93.1 ft. MSA - Survey Abandoned - STAGMENT FLOW93.1 ft. SRVM - Surface Reinforcement Visible Mechanical, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish93.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

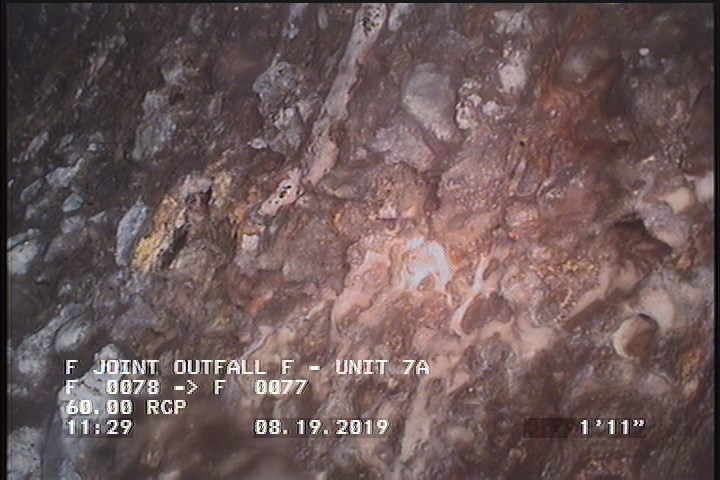

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

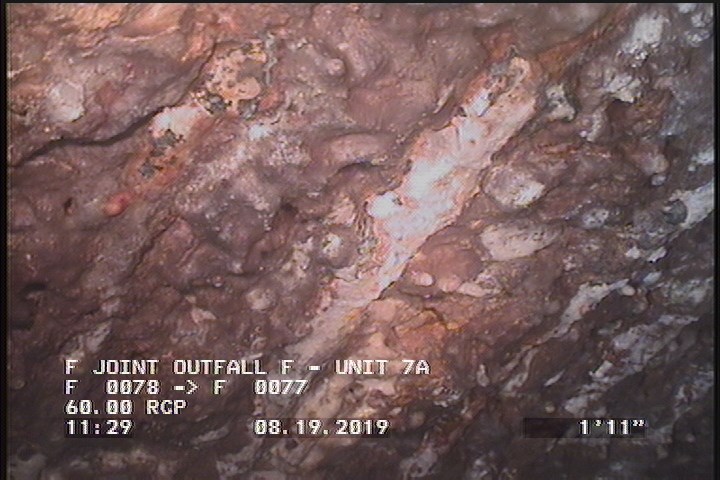

  • General Observation - MAG COAT THROUGHOUT

    2 ft. - General Observation - MAG COAT THROUGHOUT

All inspections of P10282Work order 771934

Observations (10)

DistanceCodeObservation
0MWL—
2SAP—
2SRVM—
93.1MSASTAGMENT FLOW
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2MGOMAG COAT THROUGHOUT
93.1SRVM—
0MWM—
0AMHF 0078
93.1SAP—

Properties (6)

additional_info
SC378291
custom_field_two
5
customer
LACSD
datetime
2019-08-19T11:23:04-07:00
documentation
PRO PIPE
is_lateral_inspection
false
