Wastewater/Activity/PacpInspection/1.0Jun 6, 2017, 07:27 AM
21 0883_21 0882_06062017_021605.mp4
- Date
- 06/06/2017
- W/O
- 640200
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00775
- PipeID
- P15971
- Time
- 12:27 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4540
- Sewer Name
- 21 LA VERNE-"B" STREET TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_641200_TV21051_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0883
- Downstream MH
- 21 0882
- Dir. of Survey
- Downstream
- Length Surveyed
- 333 ft.
- Total Length
- 333 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 134
Observation photos (2)

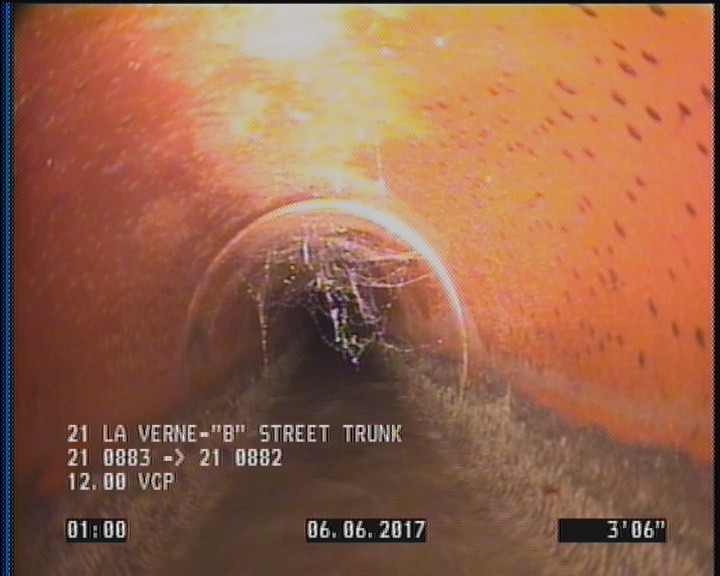

3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

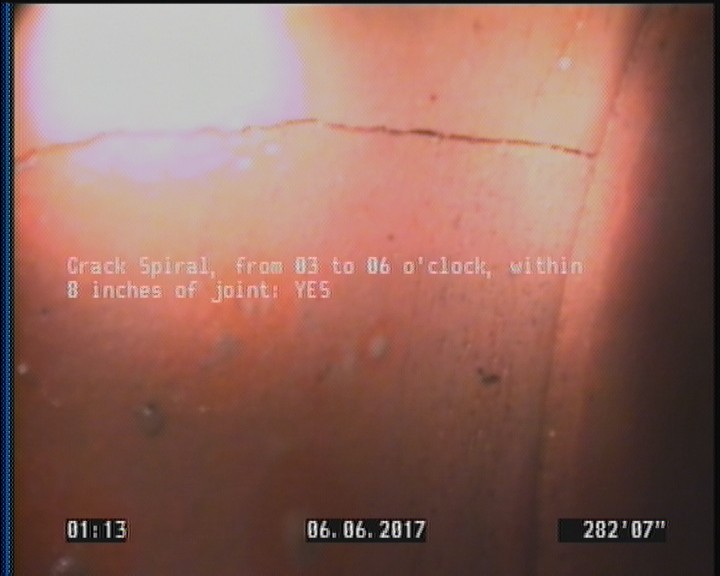

282.6 ft. - Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 333 | DAGS | — |
| 282.6 | CS | — |
| 0 | AMH | 21 0883 |
| 333 | MGO | CONNECTION AT 9 OC |
| 3.5 | DAGS | — |
| 333 | AMH | 21 0882 |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC345355
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-06T00:27:38-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
