Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 18, 2015, 09:16 AM
Date
12/18/2015
W/O
0541712
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00717
PipeID
P14831
Time
1:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7020
Sewer Name
18 WORSHAM CREEK RELIEF TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20151216MDM_WORSHAM_CREEK_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
18 0980
Downstream MH
18 0979
Dir. of Survey
Downstream
Length Surveyed
310.9 ft.
Total Length
310.9 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
18
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 18 0980 to 18 0979
MH: 18 0980MH: 18 0979downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MWM - Water Mark, 40 %of cross sectional area8.4 ft. MGO - General Observation - 10" VCP174.5 ft. MGO - General Observation - 10"VCP295.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE300.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT300.9 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - HAIRLINE305.9 ft. FH2 - Fracture Longitudinal Hinge, 2, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT305.9 ft. MGP - General Photograph - HINGE FRACTURE309.1 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE309.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT309.5 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - SLIGHT310.6 ft. MGO - General Observation - MH CONN OPEN STOPLOG IN PLACE310.9 ft. AMH - Downstream Manhole, Survey Ends - 1:55AM

Observation photos (7)

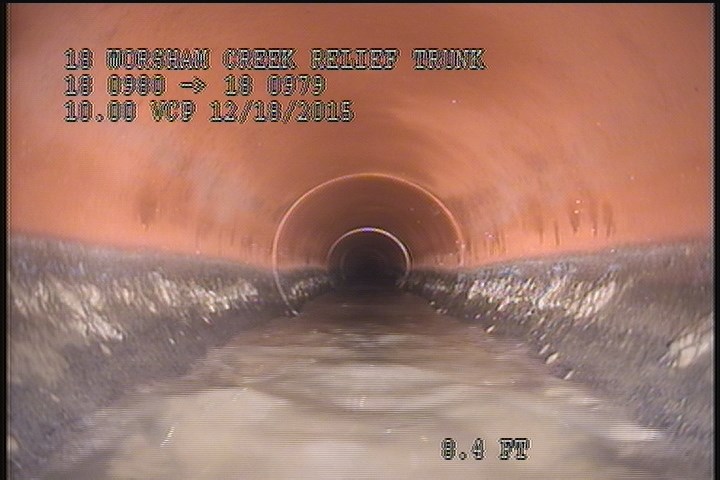

  • General Observation - 10" VCP

    8.4 ft. - General Observation - 10" VCP

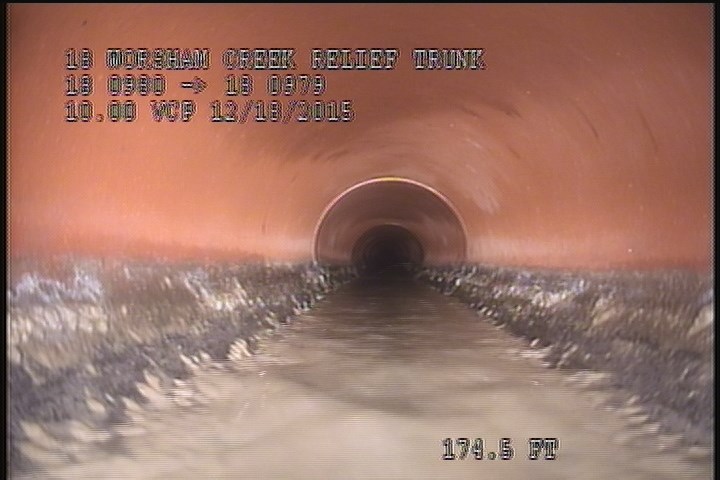

  • General Observation - 10"VCP

    174.5 ft. - General Observation - 10"VCP

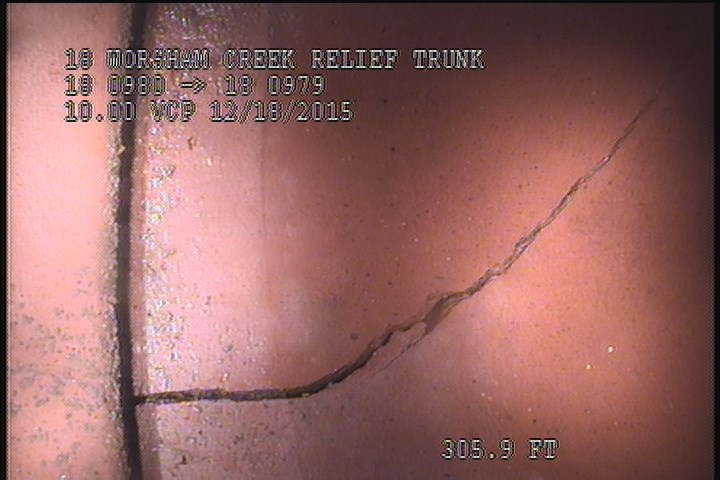

  • Fracture Longitudinal Hinge, 2, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

    305.9 ft. - Fracture Longitudinal Hinge, 2, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

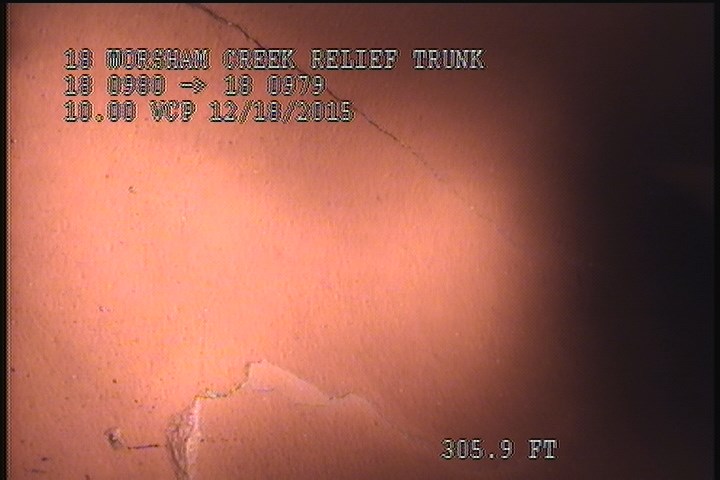

  • General Photograph - HINGE FRACTURE

    305.9 ft. - General Photograph - HINGE FRACTURE

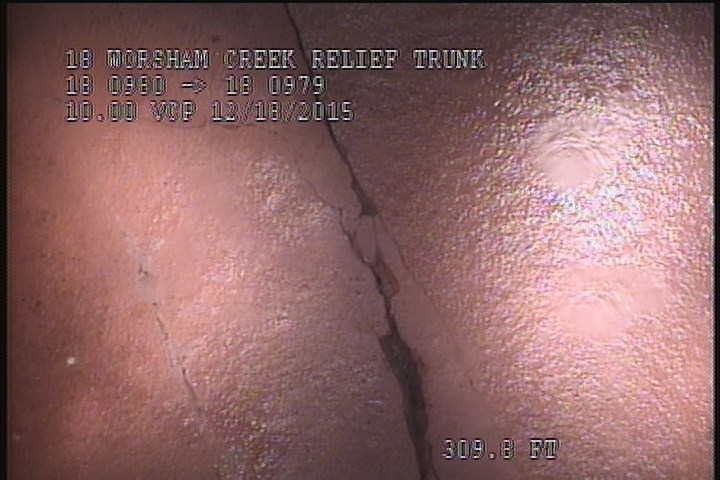

  • Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    309.5 ft. - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

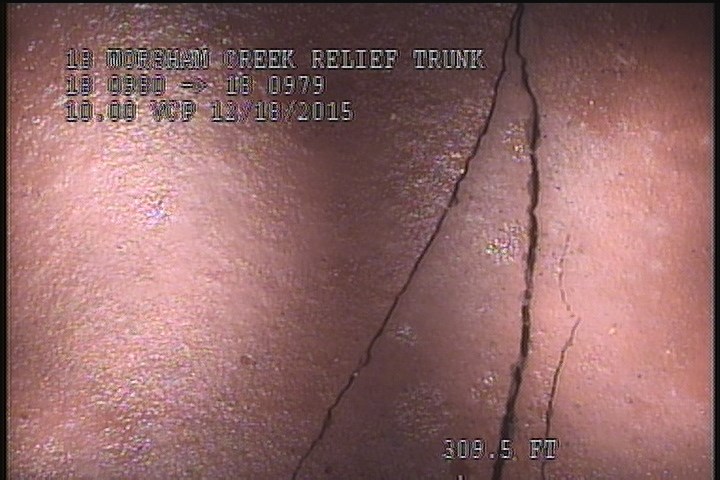

  • Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

    309.5 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

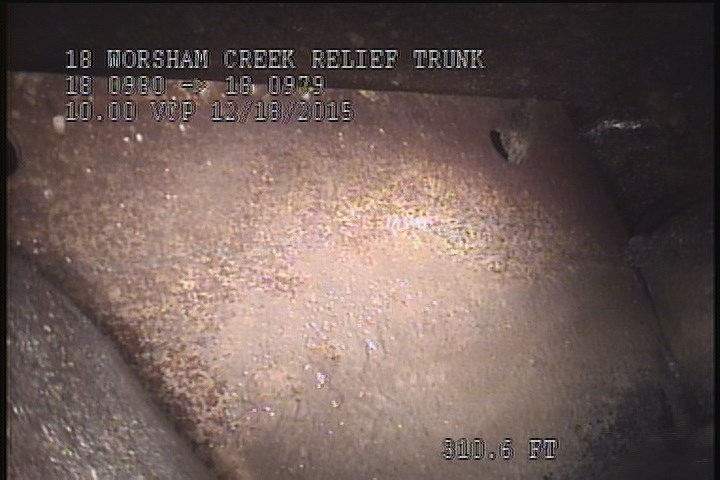

  • General Observation - MH CONN OPEN STOPLOG IN PLACE

    310.6 ft. - General Observation - MH CONN OPEN STOPLOG IN PLACE

All inspections of P14831Work order 0541712

Observations (15)

DistanceCodeObservation
305.9FH2SLIGHT
0MWL—
305.9MGPHINGE FRACTURE
174.5MGO10"VCP
0AMH1:15AM
310.6MGOMH CONN OPEN STOPLOG IN PLACE
309.5FCSLIGHT
295.8FLHAIRLINE
0MWM—
309.1FCHAIRLINE
300.9FCSLIGHT
310.9AMH1:55AM
300.9FLHAIRLINE
309.5FCSLIGHT
8.4MGO10" VCP

Properties (6)

custom_field_three
SLIGHT HINGE CRACK
custom_field_two
3
customer
LACSD
datetime
2015-12-18T01:16:33-08:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
