Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 14, 2015, 08:54 AM

  • 05 0308_05 0307_12142015_010213.mp4

Date
12/14/2015
W/O
0536425
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00500
PipeID
P05542
Time
12:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7014
Sewer Name
05 OAK STREET-CENTER AVENUE RELOCATION TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
20151214MDM_OAK_STREET_CENTER_AVENUE_RELOCATION_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 0307
Downstream MH
05 0308
Dir. of Survey
Upstream
Length Surveyed
152.6 ft.
Total Length
152.6 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 0307 to 05 0308
MH: 05 0307MH: 05 0308upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:10AM0.5 ft. MGO - General Observation - MAG COAT 50% FINISH0.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish33.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES89.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT140.2 ft. MGO - General Observation - MAG COAT 50% START 8:00 TO 4:00148.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active150.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING UNDER MAG COAT152.6 ft. MWL - Water Level, 10 %of cross sectional area152.6 ft. MWM - Water Mark, 20 %of cross sectional area152.6 ft. MGO - General Observation - MH CONN ACTIVE 3:00 INCOMING LINE152.6 ft. AMH - Downstream Manhole, Survey Begins - 12:45AM152.6 ft. MGO - General Observation - MH CONN 6:00 ACTIVE152.6 ft. MGO - General Observation - MH CONN ACTIVE 9:00 OUTGOING LINE

Observation photos (4)

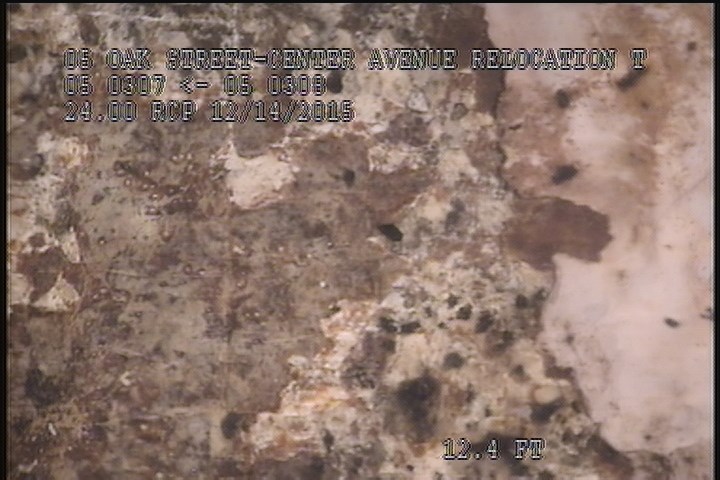

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING UNDER MAG COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING UNDER MAG COAT

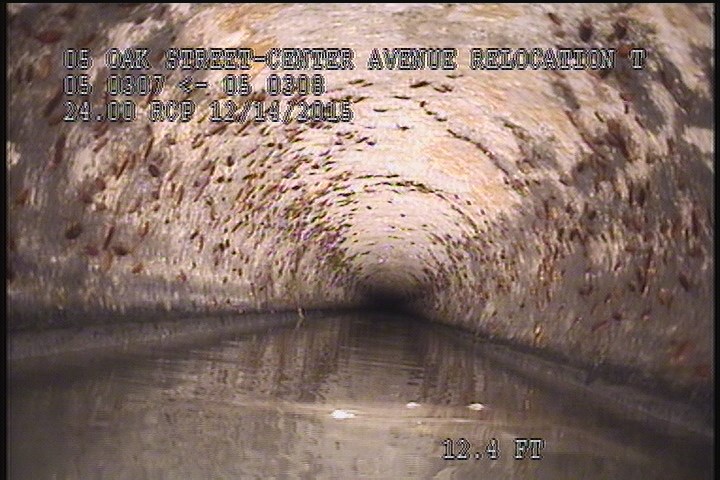

  • General Observation - MAG COAT 50% START 8:00 TO 4:00

    12.4 ft. - General Observation - MAG COAT 50% START 8:00 TO 4:00

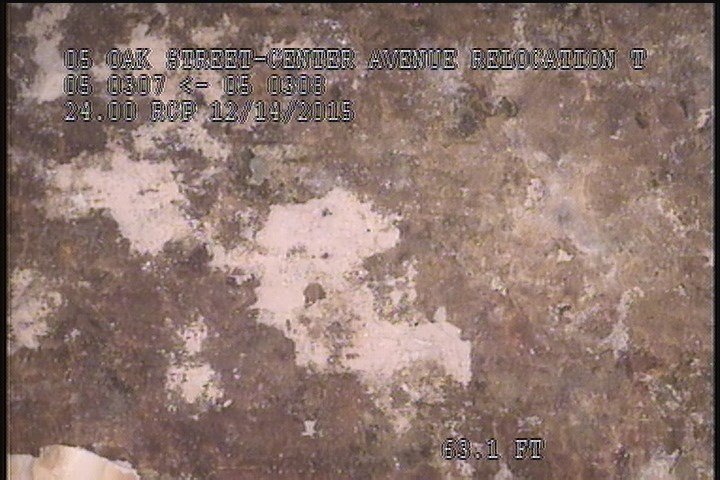

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

    63.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

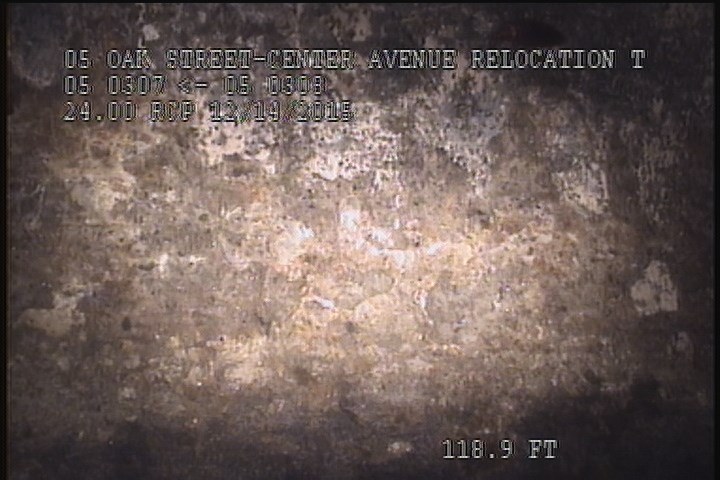

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    118.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P05542Work order 0536425

Observations (14)

DistanceCodeObservation
0MWL—
0MWM—
63.1SSSBLISTERING LAITANCE COAT
0MGOMH CONN ACTIVE 3:00 INCOMING LINE
2SSSLAITANCE COAT PEELING BLISTERING UNDER MAG COAT
152.1MGOMAG COAT 50% FINISH
118.9SSS—
4TFActive
0AMH12:45AM
12.4MGOMAG COAT 50% START 8:00 TO 4:00
152.6AMH1:10AM
0MGOMH CONN 6:00 ACTIVE
152.1SSS—
0MGOMH CONN ACTIVE 9:00 OUTGOING LINE

Properties (6)

custom_field_three
SPALLING LAITANCE COAT
custom_field_two
4
customer
LACSD
datetime
2015-12-14T00:54:07-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
