Wastewater/Activity/PacpInspection/1.0Dec 11, 2015, 08:47 AM
- Date
- 12/11/2015
- W/O
- 0536425
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00500
- PipeID
- P05545
- Time
- 12:47 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0001
- Sewer Name
- 05 OAK STREET-CENTER AVENUE RELOCATION TRUNK
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- 200151210MDM_OAK_STREET_CENTER_AVENUE_RELOCATION_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 0311
- Downstream MH
- 05 0310
- Dir. of Survey
- Downstream
- Length Surveyed
- 150.4 ft.
- Total Length
- 150.4 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

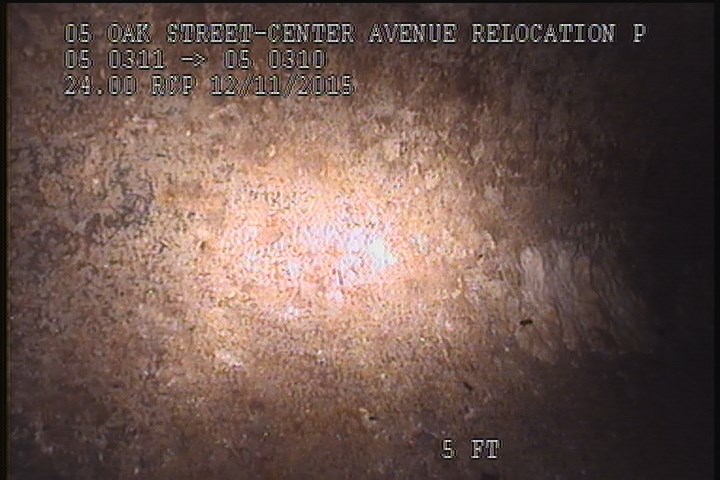

2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

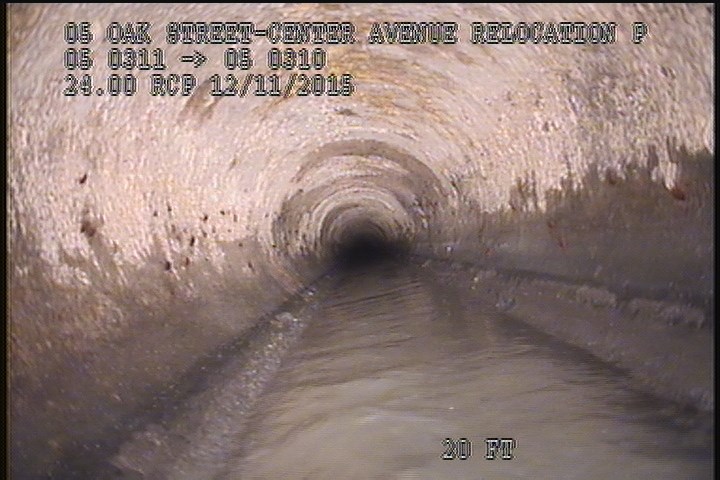

20 ft. - General Observation - MAG COAT 60%% START 9:00 TO 5:00

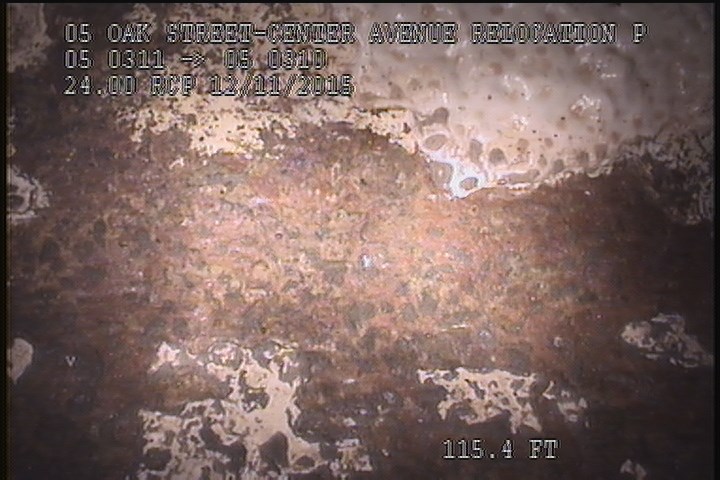

115.4 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 20 | MGO | MAG COAT 60%% START 9:00 TO 5:00 |
| 119.4 | MWM | — |
| 0 | AMH | 3:10AM |
| 150.4 | AMH | 3:25AM |
| 0 | MWL | — |
| 2 | SSS | LAITANCE COAT PEELING BLISTERING |
| 150.2 | MGO | MAG COAT 60% FINISH |
| 115.4 | SSS | — |
| 150.2 | SSS | — |
Properties (6)
- custom_field_three
- LAITANCE COAT SPALLING
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-11T00:47:30-08:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
