Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 11, 2015, 08:45 AM
Date
12/11/2015
W/O
0536425
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00500
PipeID
P05546
Time
12:45 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0001
Sewer Name
05 OAK STREET-CENTER AVENUE RELOCATION TRUNK
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Routine Assessment
Project
200151210MDM_OAK_STREET_CENTER_AVENUE_RELOCATION_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 0312
Downstream MH
05 0311
Dir. of Survey
Downstream
Length Surveyed
153.8 ft.
Total Length
153.8 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 05 0312 to 05 0311
MH: 05 0312MH: 05 0311downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:45AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING2 ft. MGO - General Observation - MAG COAT 30% START 8:00 TO 4:0019.5 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - MODERATE AGG19.5 ft. MGO - General Observation - MAG COAT 60% START144.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO153.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish153.4 ft. MGO - General Observation - MAG COAT 60% FINISH153.8 ft. AMH - Downstream Manhole, Survey Ends - 3:05AM

Observation photos (5)

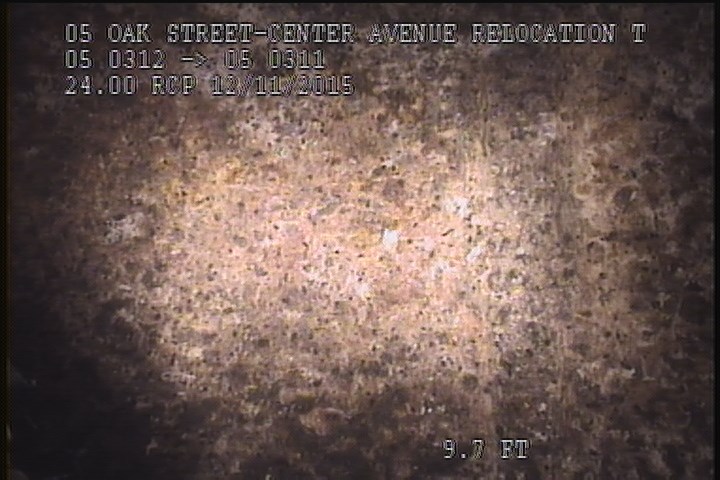

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

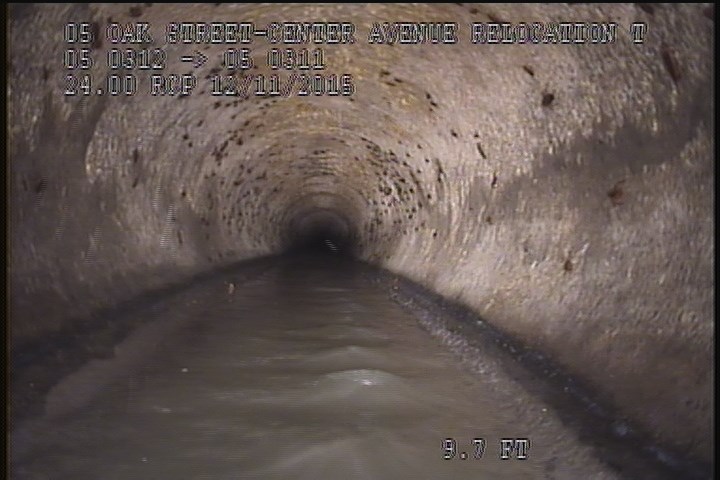

  • General Observation - MAG COAT 30% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 30% START 8:00 TO 4:00

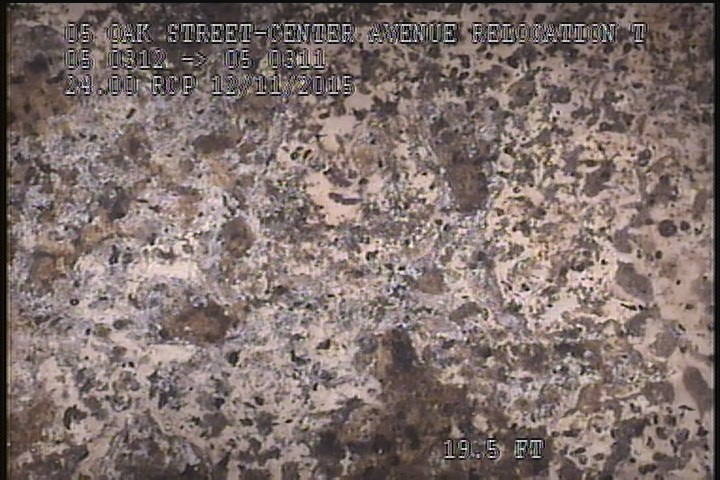

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - MODERATE AGG

    19.5 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - MODERATE AGG

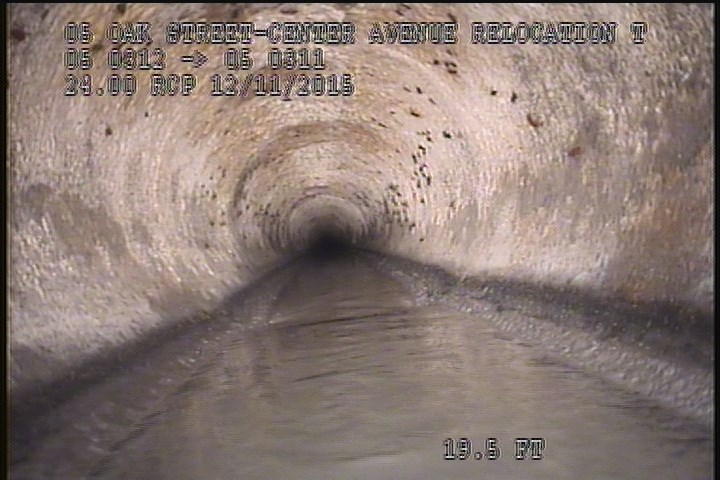

  • General Observation - MAG COAT 60% START

    19.5 ft. - General Observation - MAG COAT 60% START

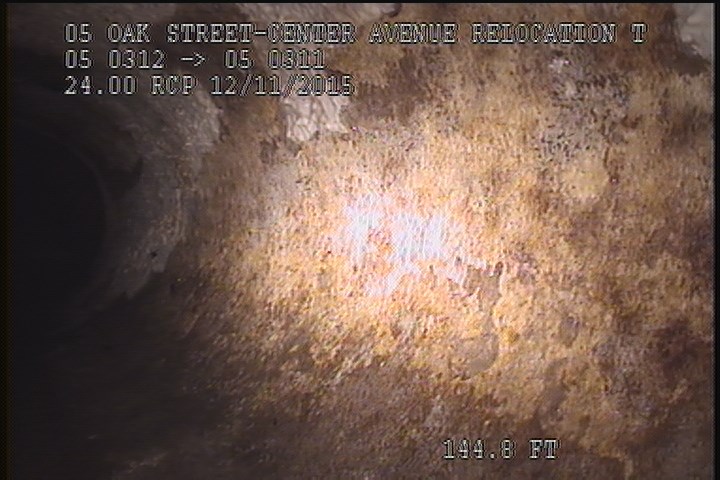

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

    144.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

All inspections of P05546Work order 0536425

Observations (11)

DistanceCodeObservation
19.5SAVMODERATE AGG
2SSSLAITANCE COAT PEELING BLISTERING
0MWM—
2MGOMAG COAT 30% START 8:00 TO 4:00
153.4SSS—
144.8SSS—
19.5MGOMAG COAT 60% START
0AMH2:45AM
153.8AMH3:05AM
0MWL—
153.4MGOMAG COAT 60% FINISH

Properties (6)

custom_field_three
MODERATE AGG 1 AREA
custom_field_two
3
customer
LACSD
datetime
2015-12-11T00:45:51-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
