Wastewater/Activity/PacpInspection/1.0Sep 7, 2017, 09:50 AM
21 0338_21 0337 _09072017_025023.mp4
- Date
- 09/07/2017
- W/O
- 635405
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00783
- PipeID
- P15539
- Time
- 2:50 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4959
- Sewer Name
- 21 RAILROAD STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_635405_TV21031_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 21 0338
- Downstream MH
- 21 0337
- Dir. of Survey
- Downstream
- Length Surveyed
- 34.4 ft.
- Total Length
- 34.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

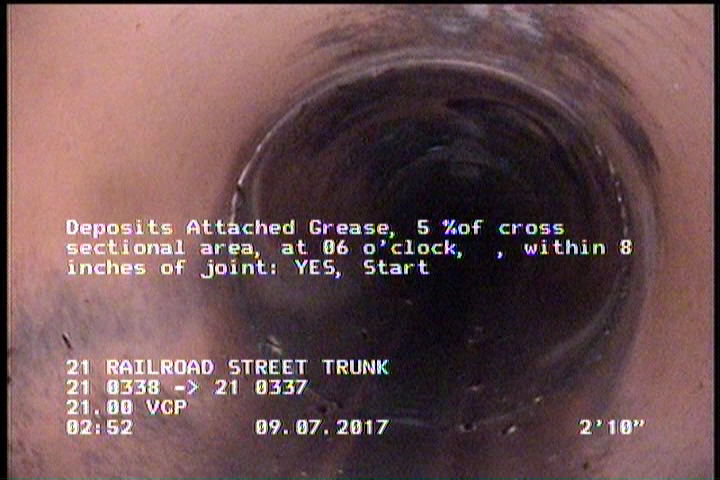

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

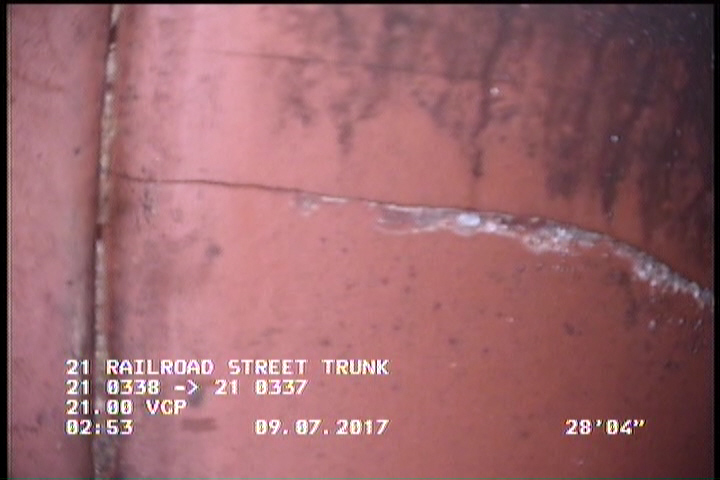

28.3 ft. - Crack Spiral, from 06 to 09 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 21 0338 |
| 34.4 | AMH | 21 0337 |
| 0 | MWM | — |
| 8.7 | TBC | — |
| 34.4 | MGO | CONNECTION ATT 9 OC |
| 34.4 | DAGS | — |
| 0 | MWL | — |
| 28.3 | CS | — |
| 2.4 | DAGS | — |
Properties (6)
- additional_info
- SC345650
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-07T02:50:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
