Wastewater/Activity/PacpInspection/1.0Nov 21, 2016, 09:23 AM
16 0502_16 0501 _11212016_013856.mp4
- Date
- 11/21/2016
- W/O
- 596918
- Weather
- Damp
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00659
- PipeID
- P13553
- Time
- 1:23 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3883
- Sewer Name
- 16 LAMANDA PARK TRUNK
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_596918_TV16026_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 16 0502
- Downstream MH
- 16 0501
- Dir. of Survey
- Downstream
- Length Surveyed
- 274.8 ft.
- Total Length
- 274.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 2113
- O&M Rating
- 5
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

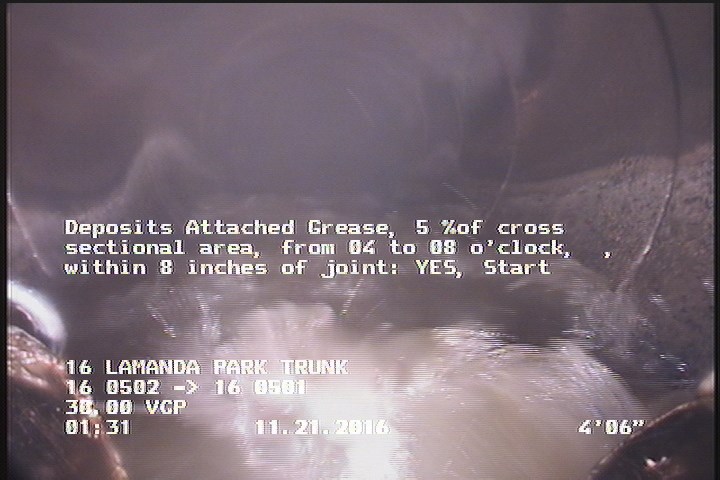

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

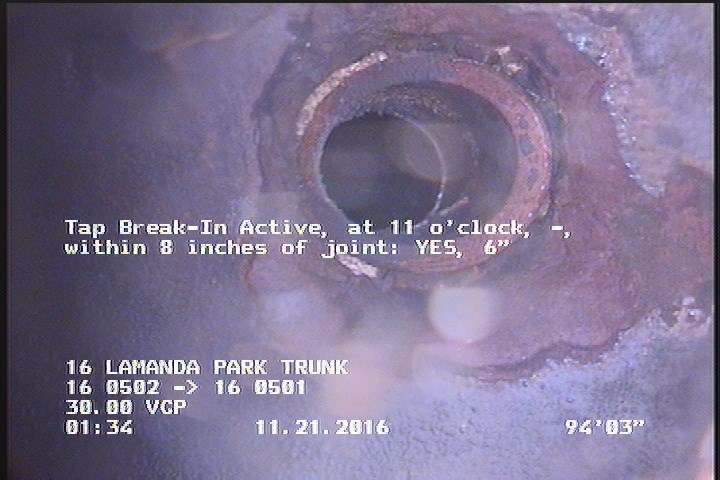

94.2 ft. - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"

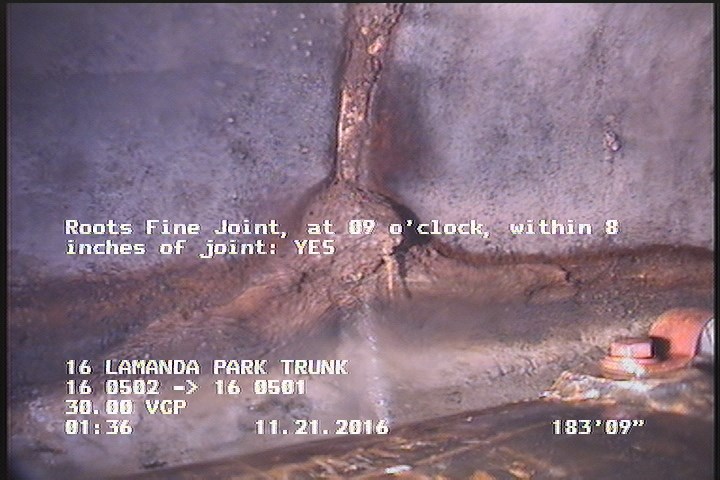

183.8 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 274.8 | VC | AT MH |
| 94.2 | TBA | — |
| 274.8 | AMH | 16 0501 |
| 237.9 | VC | — |
| 4.5 | DAGS | — |
| 183.8 | RFJ | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 269.8 | DAGS | — |
| 0 | AMH | 16 0502 |
| 0 | MGO | LATERAL AT MH 3 O CLOCK ACTIVE |
Properties (6)
- additional_info
- SC305216
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-21T01:23:00-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
