Wastewater/Activity/PacpInspection/1.0Nov 17, 2016, 11:33 AM
16 0512_16 0511 _11172016_034505.mp4
- Date
- 11/17/2016
- W/O
- 596918
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00659
- PipeID
- P13563
- Time
- 3:33 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3881
- Sewer Name
- 16 LAMANDA PARK TRUNK
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_596918_TV16026_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 16 0512
- Downstream MH
- 16 0511
- Dir. of Survey
- Downstream
- Length Surveyed
- 54.5 ft.
- Total Length
- 54.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

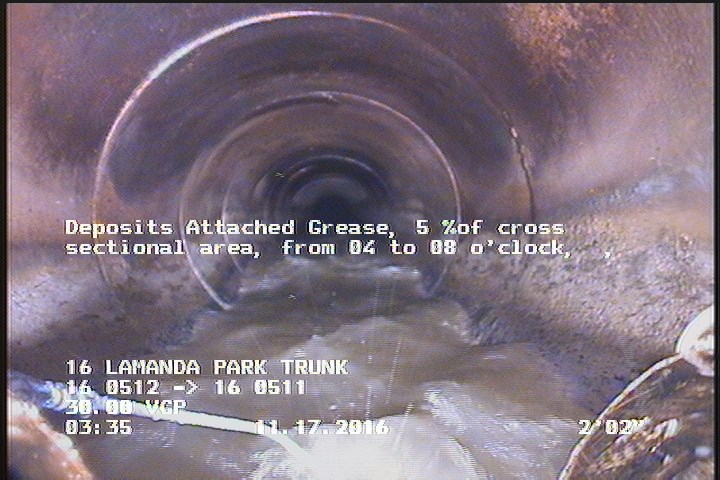

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

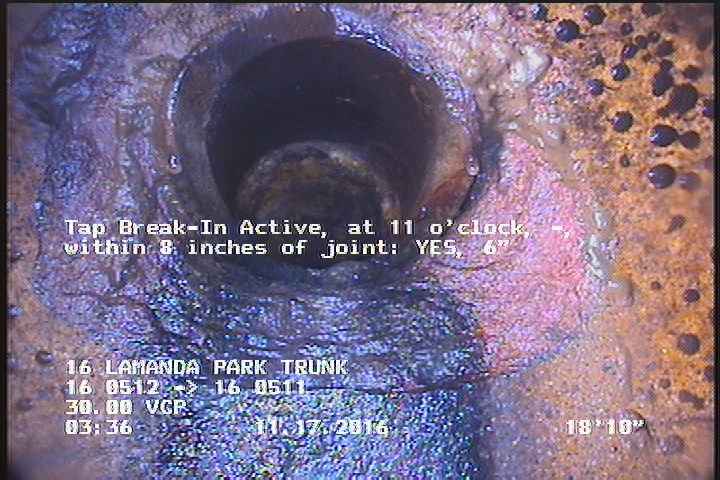

18.9 ft. - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 16 0512 |
| 0 | MGO | LATERAL AT MH 3 O CLOCK ACTIVE |
| 18.9 | TBA | — |
| 54.5 | AMH | 16 0511 |
| 0 | VC | AT MH |
| 51.9 | DAGS | — |
| 2.2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC305213
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-17T03:33:23-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
