Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 04:22 PM
30 0187_30 0186 _08122016_082303.mp4
- Date
- 12/08/2016
- W/O
- 597389
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00860
- PipeID
- P17888
- Time
- 8:22 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3845
- Sewer Name
- 30 EL PORTO TRUNK
- City
- MANHATTEN BEACH
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_597389_TV30002_OCT2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 30 0187
- Downstream MH
- 30 0186
- Dir. of Survey
- Downstream
- Length Surveyed
- 488 ft.
- Total Length
- 488.1 ft.
- Structural Index
- 3
- Structural Quick
- 4134
- Structural Rating
- 20
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (6)

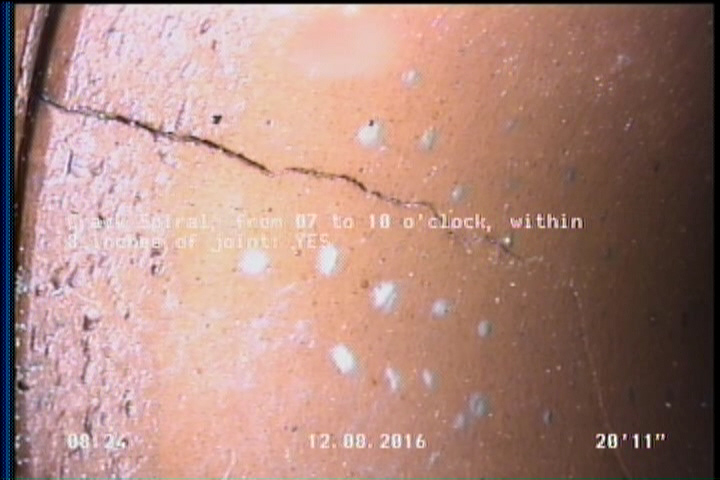

20.9 ft. - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

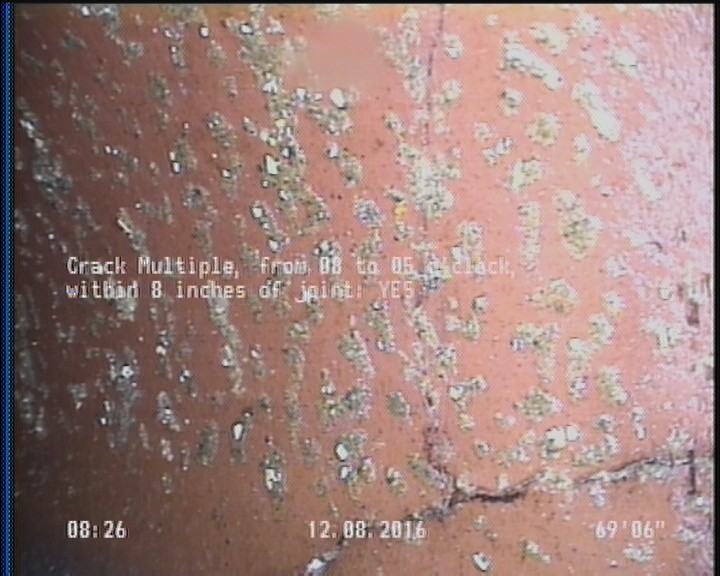

69.1 ft. - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

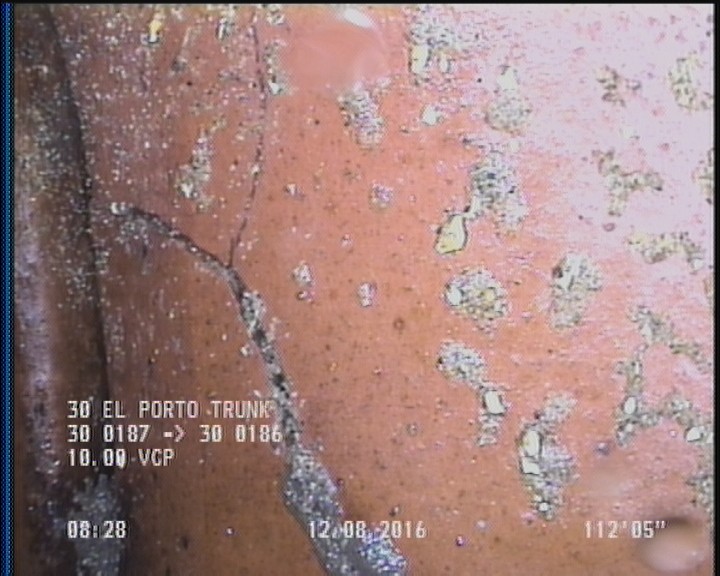

111.1 ft. - Fracture Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

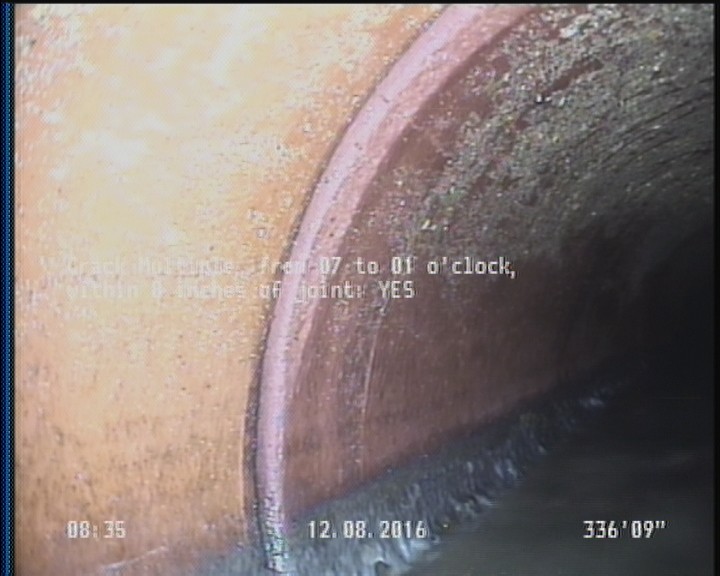

336.1 ft. - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

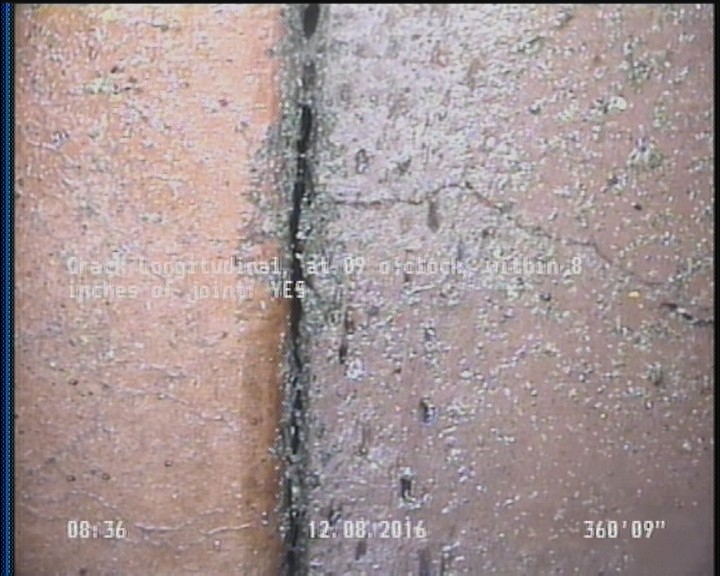

360.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

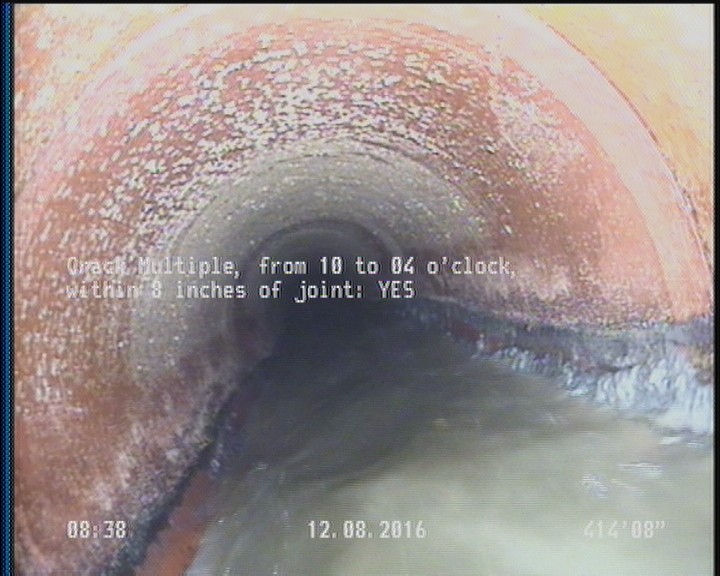

414.1 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 488.1 | AMH | 30 0186 |
| 20.9 | CS | — |
| 336.1 | CM | — |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 69.1 | CM | — |
| 0 | AMH | 30 0187 |
| 111.1 | FM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 414.1 | CM | — |
| 360.1 | CL | — |
Properties (6)
- additional_info
- SC304595
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-08T08:22:25-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
