Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 03:36 PM

  • 30 0188_30 0187 _08122016_074126.mp4

Date
12/08/2016
W/O
597389
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00860
PipeID
P17889
Time
7:36 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3845
Sewer Name
30 EL PORTO TRUNK
City
MANHATTEN BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
01
Purpose
Routine Assessment
Project
WO_597389_TV30002_OCT2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
30 0188
Downstream MH
30 0187
Dir. of Survey
Downstream
Length Surveyed
292.1 ft.
Total Length
292.1 ft.
Structural Index
3
Structural Quick
3D22
Structural Rating
83
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
83
Pipe schematic from manhole 30 0188 to 30 0187
MH: 30 0188MH: 30 0187downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 30 01880 ft. MWM - Water Mark, 15 %of cross sectional area6.1 ft. CM - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES39.9 ft. CM - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES48.1 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES66.1 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES78.1 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start192 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish283.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES288.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES292.1 ft. AMH - Downstream Manhole, Survey Ends - 30 0187292.1 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK

Observation photos (7)

  • Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

    6.1 ft. - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

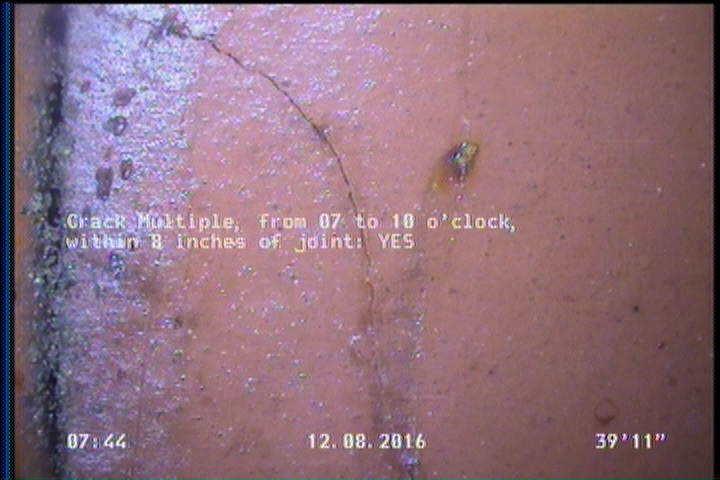

  • Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

    39.9 ft. - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    48.1 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

  • Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

    66.1 ft. - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    78.1 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    283.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    288.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P17889Work order 597389

Observations (13)

DistanceCodeObservation
0MWL—
288.1CM—
292.1AMH30 0187
66.1CC—
78.1CM—
0AMH30 0188
39.9CM—
0MWM—
48.1CL—
6.1CM—
283.1CL—
192CM—
292.1MGOCONNECTION AT THE MH 9 O'CLOCK

Properties (6)

additional_info
SC304595
custom_field_two
3
customer
LACSD
datetime
2016-12-08T07:36:40-08:00
documentation
PROPIPE
is_lateral_inspection
false
