Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 04:34 PM
20 0256_20 0255_12202016_170111.mp4
- Date
- 09/22/2016
- W/O
- 597309
- Weather
- Dry
- Operator/Surveyor
- S LOPEZ
- Sewer ID
- Z00753
- PipeID
- P19223
- Time
- 9:34 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3787
- Sewer Name
- 20 35TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_597309_TV20009_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0256
- Downstream MH
- 20 0255
- Dir. of Survey
- Downstream
- Length Surveyed
- 287 ft.
- Total Length
- 287 ft.
- Structural Index
- 3
- Structural Quick
- 3J2J
- Structural Rating
- 285
- O&M Index
- 2
- O&M Quick
- 412J
- O&M Rating
- 118
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 403
Observation photos (3)

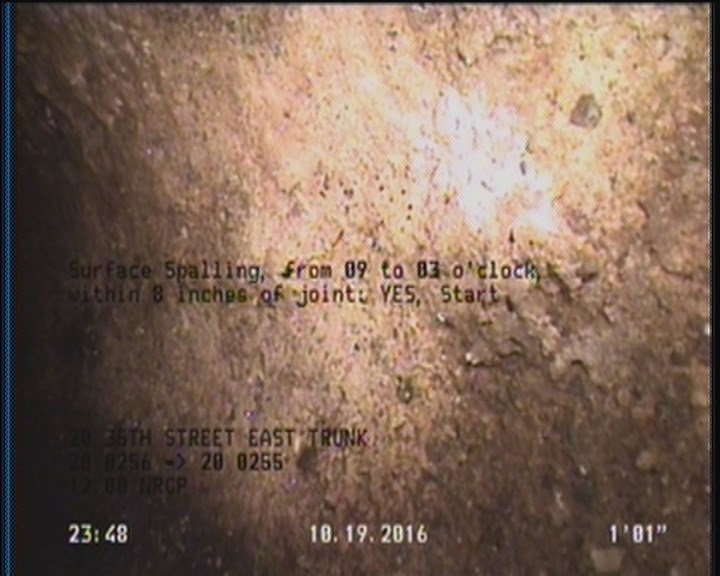

1.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

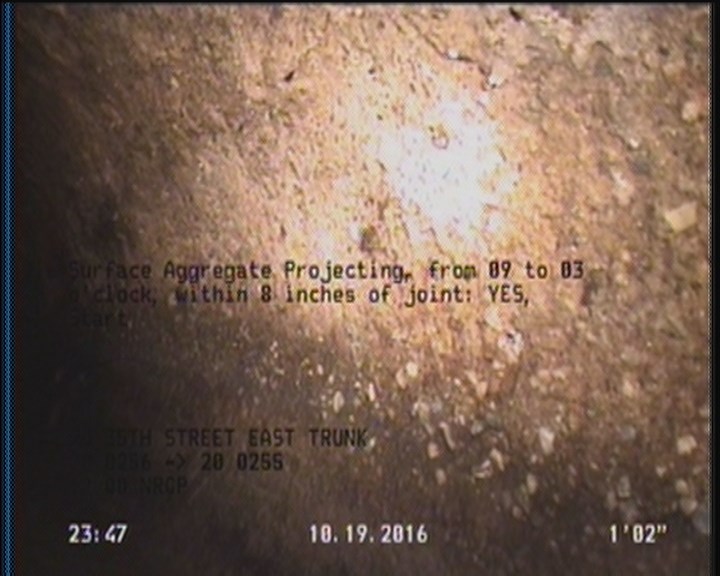

1.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

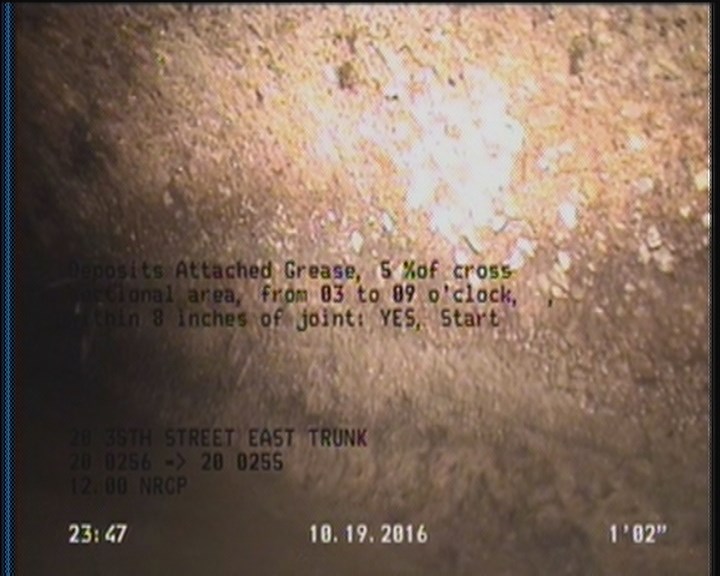

1.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 49.4 | TFC | — |
| 198.4 | TFC | — |
| 0 | MWL | — |
| 285.2 | DAGS | — |
| 150.1 | TFC | — |
| 285.2 | SSS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 20 0256 |
| 1.2 | SSS | — |
| 0 | MWM | — |
| 1.2 | SAP | — |
| 1.2 | DAGS | — |
| 285.2 | SAP | — |
| 97.4 | TFC | — |
| 287 | AMH | 20 0255 |
| 246.5 | TFC | — |
Properties (6)
- additional_info
- SC306325
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-09-22T09:34:41-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
