Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 08:49 AM
18 0083_18 0082 _04102016_020657.mp4
- Date
- 10/04/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13902
- Time
- 1:49 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3729
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0083
- Downstream MH
- 18 0082
- Dir. of Survey
- Downstream
- Length Surveyed
- 387.6 ft.
- Total Length
- 387.6 ft.
- Structural Index
- 2
- Structural Quick
- 322N
- Structural Rating
- 160
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 164
Observation photos (3)
2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

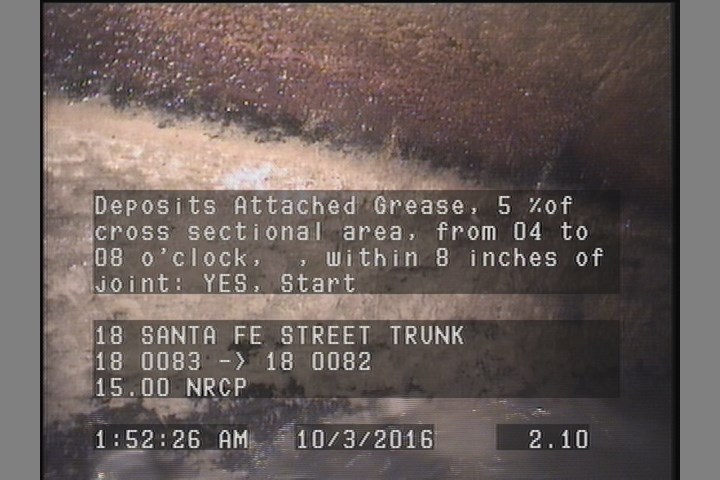

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

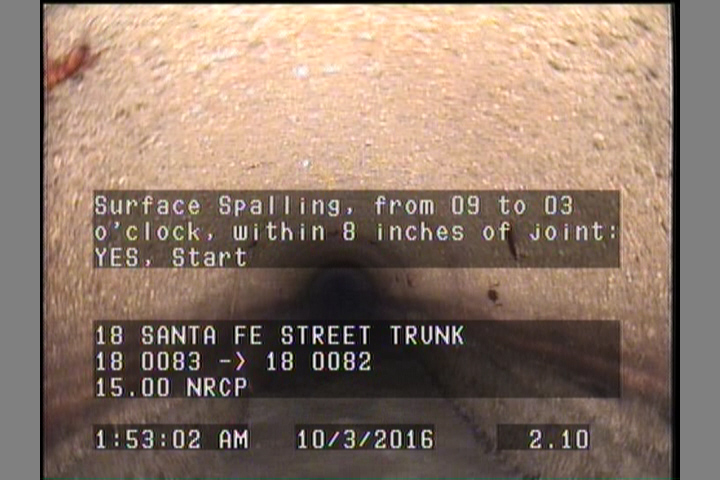

2.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 384.8 | DAGS | — |
| 103.6 | TFA | — |
| 2.1 | DAGS | — |
| 2.1 | SSS | — |
| 307.6 | TFA | — |
| 387.6 | MGO | CONNECTION AT MH 9 ACTIVE |
| 0 | AMH | 18 0083 |
| 153 | TFC | — |
| 387.6 | AMH | 18 0082 |
| 0 | MWL | — |
| 0 | MWM | — |
| 247.7 | TFA | — |
| 384.8 | SSS | — |
| 16.3 | TFA | — |
| 249.7 | TFC | — |
| 2 | SAV | — |
| 385 | SAV | — |
Properties (6)
- additional_info
- SC303716
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-04T01:49:09-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
